2018 Kawasaki Ninja H2™ SX Se Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

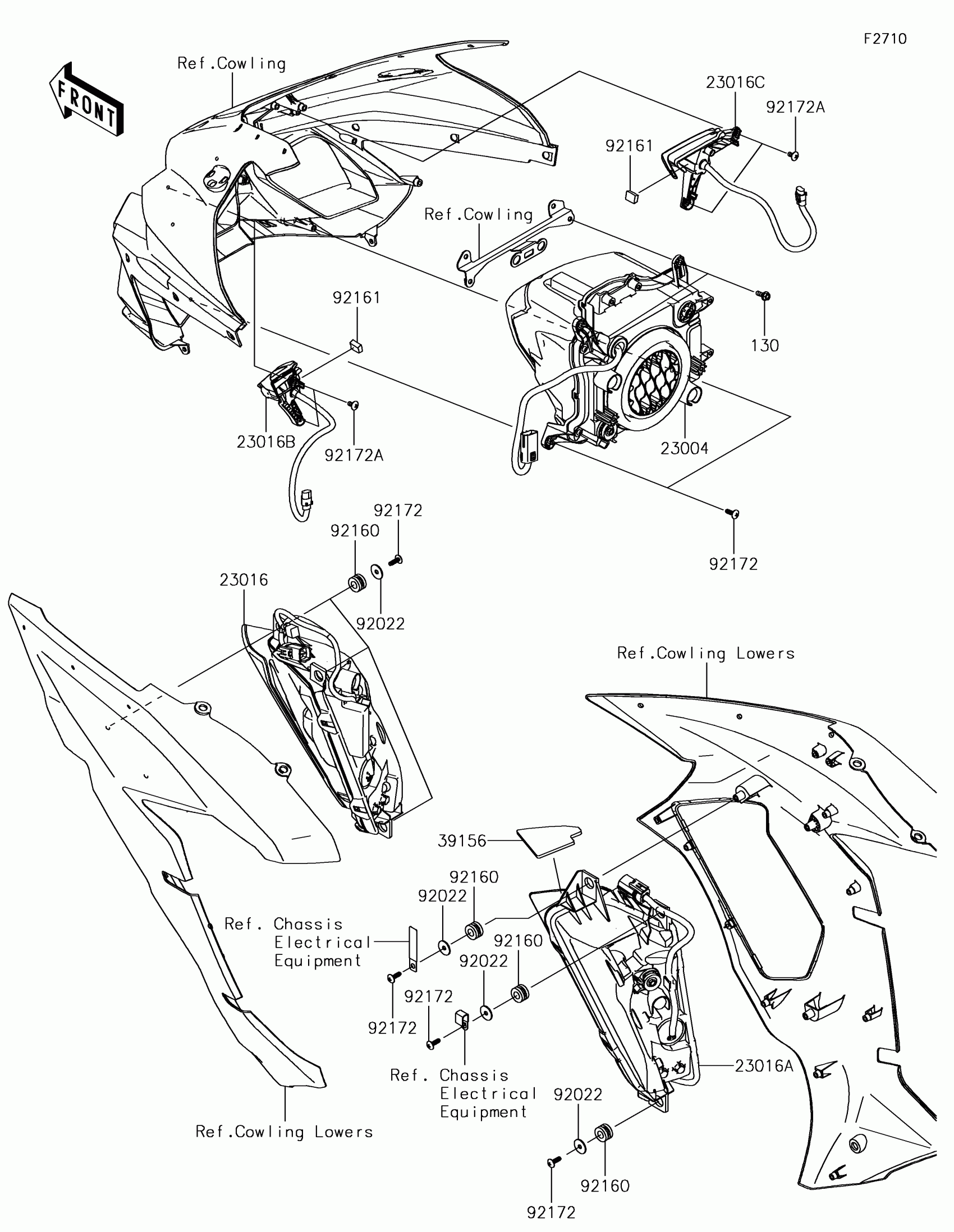

2018 Kawasaki Ninja H2™ SX Se Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130BA0514

1
Out of stock

23004

LAMP-HEAD,LED

23004-0380

1
Out of stock

23016

LAMP-ASSY,CORNERING,LH

23016-0611

1
Out of stock

23016A

LAMP-ASSY,CORNERING,RH

23016-0612

1
Out of stock

23016B

LAMP-ASSY,POSITION,LH

23016-0613

1
Out of stock

23016C

LAMP-ASSY,POSITION,RH

23016-0614

1
Out of stock

39156

PAD,70X70X4

39156-2340

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER,10X15X6

92161-2120

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,TAPPING,5X10

92172-0335

1
Out of stock
