2018 Kawasaki Ninja H2™ SX Se Ignition Switch/locks/reflectors Diagram

← All diagrams

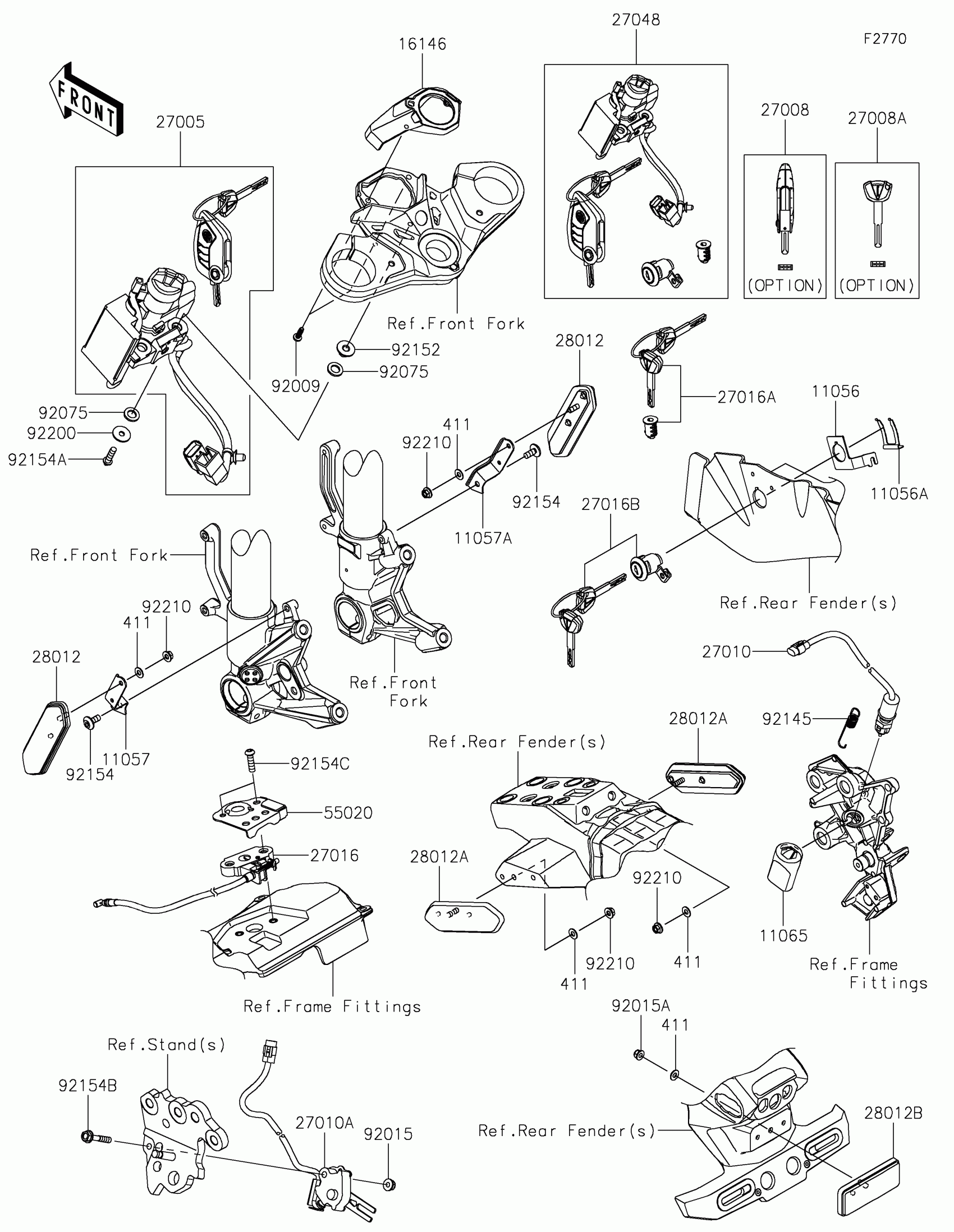

Find the part on the Ignition Switch/locks/reflectors diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Ninja H2™ SX Se Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0237

1
Out of stock

11056A

BRACKET,CLASP

11056-0238

1
Out of stock

11057

BRACKET

11057-1285

1
Out of stock

11057A

BRACKET,REFLECTOR,LH

11057-1300

1
Out of stock

11057B

BRACKET,REFLECTOR,RH

11057-1301

1
Out of stock

11065

CAP,RR BRAKE SWITCH

11065-0381

1
Out of stock

130

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5079

1
Out of stock

220

SCREW-PAN-CROS,4X20

220AA0420

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0641

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0590

1
Out of stock

27010

SWITCH,STOP

27010-0836

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-0865

1
Out of stock

27010B

SWITCH,SIDE STAND

27010-0872

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5389

1
Out of stock

27048

SWITCH-ASSY

27048-5148

1
Out of stock

28012

REFLECTOR-REFLEX

28012-0042

1
Out of stock

28012A

REFLECTOR-REFLEX,RED

28012-0043

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

56054

MARK,IGNITION

56054-1596

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92075

DAMPER

92075-1564

1
Out of stock

92143

COLLAR,L=9.6

92143-1016

1
Out of stock

92145

SPRING

92145-1794

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92154A

BOLT,TORX,6X22

92154-1858

1
Out of stock

92154B

BOLT,SOCKET,6X34

92154-2834

1
Out of stock

92173

CLAMP

92173-1227

1
Out of stock

92180

SHIM

92180-1542

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
