2018 Kawasaki Ninja H2™ SX Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

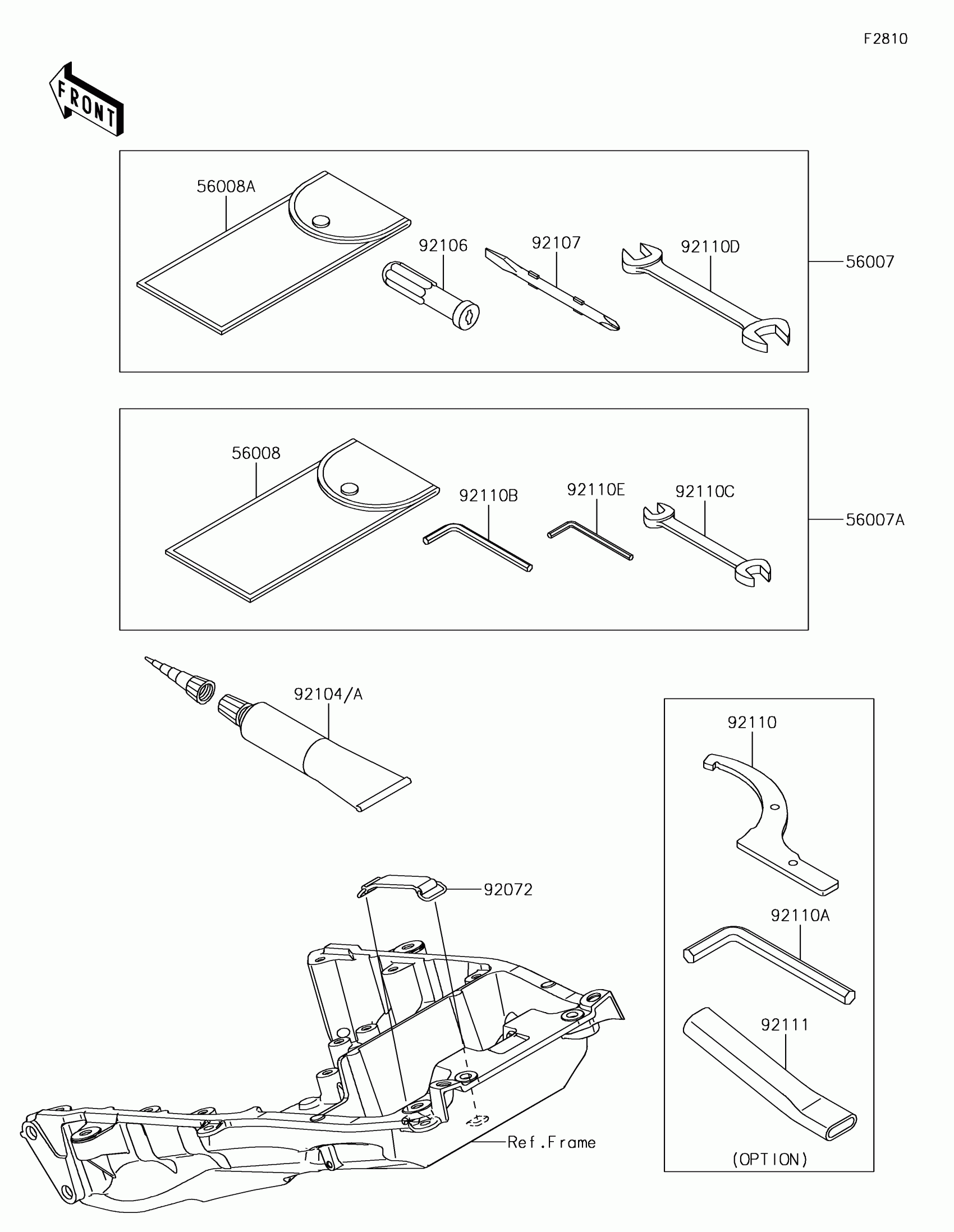

2018 Kawasaki Ninja H2™ SX Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT,INCLUDED

56007-0156

1
Out of stock

56007A

TOOL-KIT,ONBOARD

56007-0161

1
Out of stock

56008

BAG

56008-0045

1
Out of stock

56008A

BAG,TOOL

56008-1075

1
Out of stock

92072

BAND,L=50

92072-1419

1
Out of stock

92104

GASKET-LIQUID,TB1211F,CLEAR

92104-0004

1
Out of stock

92104A

GASKET-LIQUID,TB1216B,BLACK

92104-1064

1
Out of stock

92106

GRIP-SCREW DRIVER

92106-1001

1
Out of stock

92107

TOOL-DRIVER,#2PHILLIPS&SLOT

92107-1051

1
Out of stock

92110

TOOL-WRENCH,HOOK,R61.5

92110-0588

1
Out of stock

92110A

TOOL-WRENCH,ALLEN,10MM

92110-0589

1
Out of stock

92110B

TOOL-WRENCH,ALLEN,5MM

92110-1015

1
Out of stock

92110C

TOOL-WRENCH,OPEN END,10X12

92110-1152

1
Out of stock

92110D

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

92110E

TOOL-WRENCH,ALLEN,4MM

92110-3703

1
Out of stock

92111

TOOL-BAR,EXTENSION

92111-0009

1
Out of stock
