2018 Kawasaki Ninja H2™ SX Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

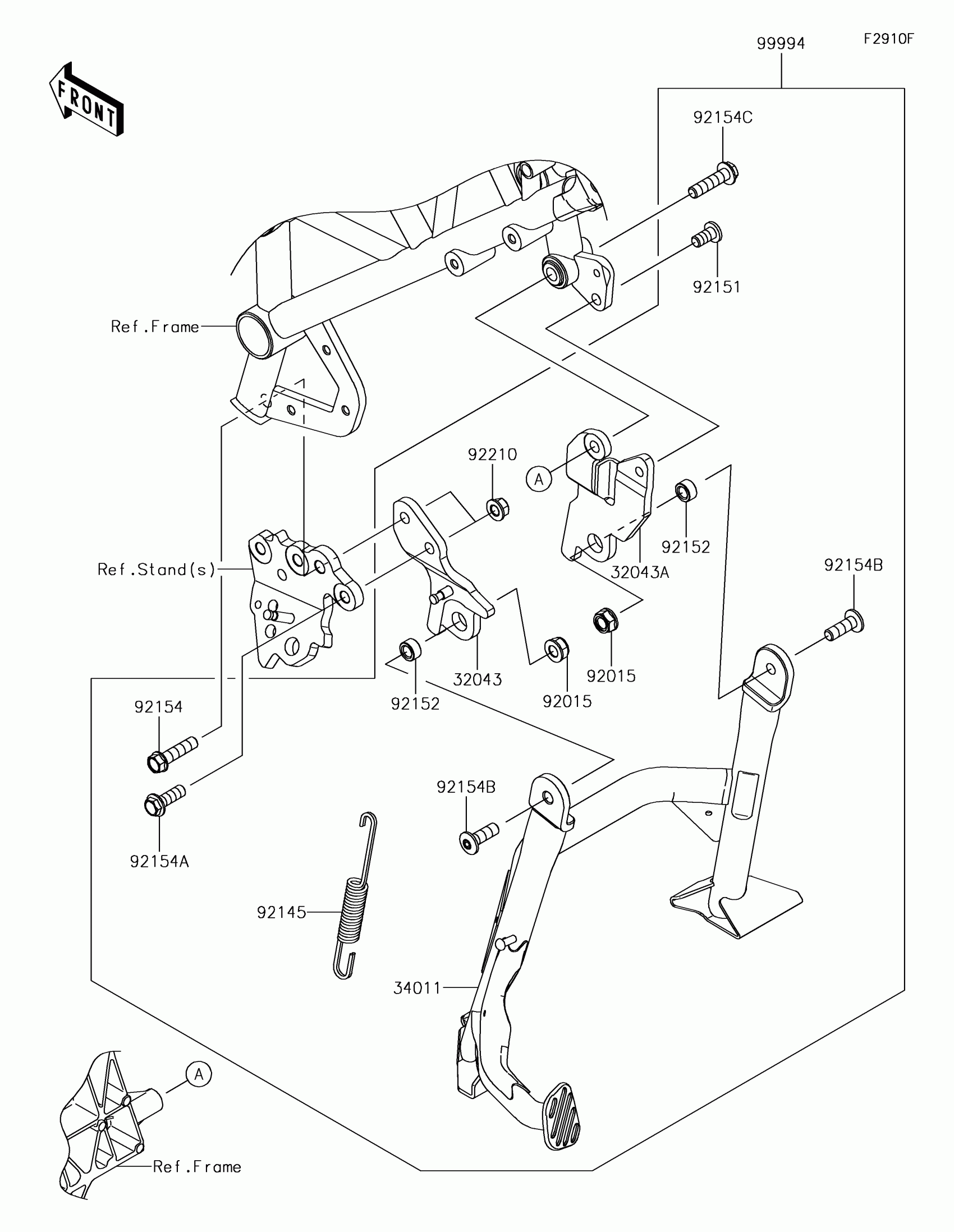

2018 Kawasaki Ninja H2™ SX Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,LH

32043-0626

1
Out of stock

32043A

BRACKET-STAND,RH

32043-0627

1
Out of stock

34011

STAND-CENTER

34011-0034

1
Out of stock

92015

NUT,LOCK,FLANGED,10MM

92015-1717

1
Out of stock

92145

SPRING,CENTER STAND

92145-1550

1
Out of stock

92151

BOLT,SOCKET,10X20

92151-1557

1
Out of stock

92152

COLLAR,10X17X9

92152-2501

1
Out of stock

92154

BOLT,FLANGED,10X40

92154-0313

1
Out of stock

92154A

BOLT,FLANGED,10X30

92154-1645

1
Out of stock

92154B

BOLT,SOCKET,10X30

92154-2909

1
Out of stock

92154C

BOLT,FLANGED,10X40

92154-2924

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

KIT-ACCESSORY,CENTER STAND

99994-1064

1
Out of stock
