2018 Kawasaki Ninja H2™ SX Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

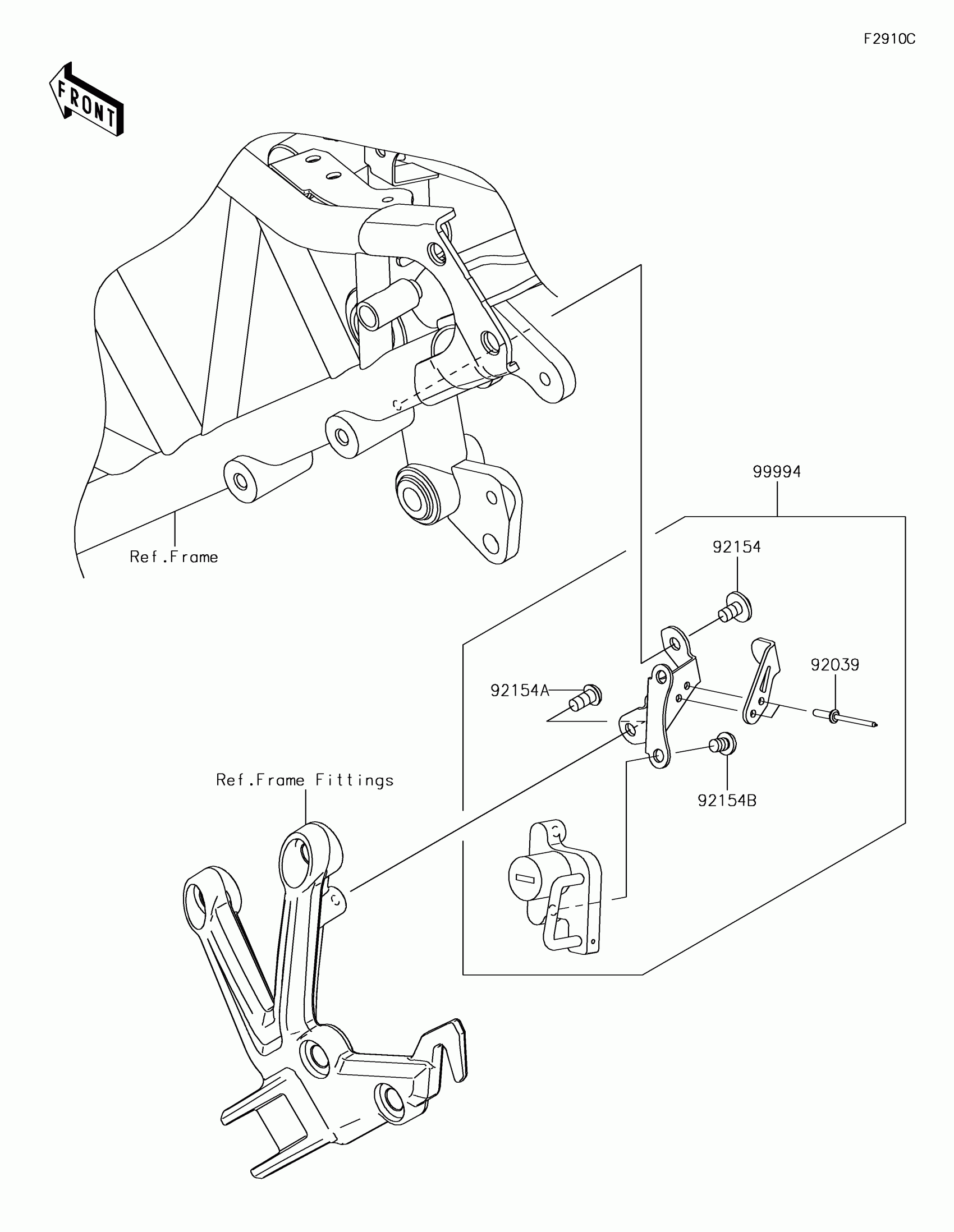

2018 Kawasaki Ninja H2™ SX Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92039

RIVET,HOLE 3.5MM

92039-0089

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-1834

1
Out of stock

92154A

BOLT,6X12

92154-2241

1
Out of stock

92154B

BOLT,ONE SIDE,6X8

92154-2948

1
Out of stock

99994

KIT-ACCESSORY,HELMET LOCK

99994-1079

1
Out of stock
