2018 Kawasaki Ninja H2™ SX Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

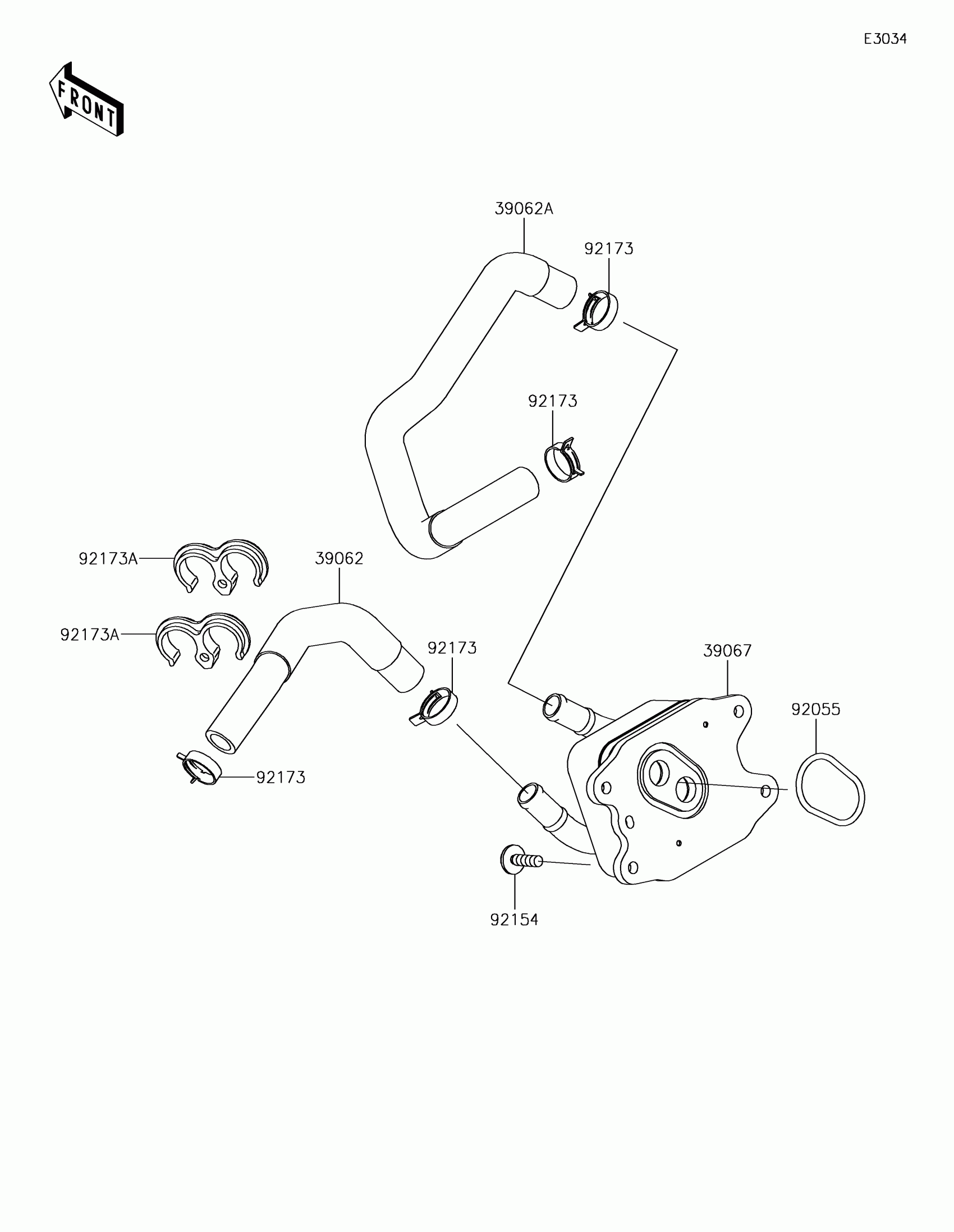

2018 Kawasaki Ninja H2™ SX Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39062

1

$25.00

In stock

39062A

1

$49.83

In stock

39067

COOLER-OIL

39067-0022

1

$397.36

In stock

92055

RING-O,39.4X3.1

92055-1618

1

$3.20

In stock

92154

BOLT,FLANGED,6X22

92154-0403

1

$2.68

In stock

92173

CLAMP,20.2MM

92173-1361

1

$2.44

In stock

92173A

CLAMP,COOLING HOSE

92173-1366

1

$4.78

In stock
