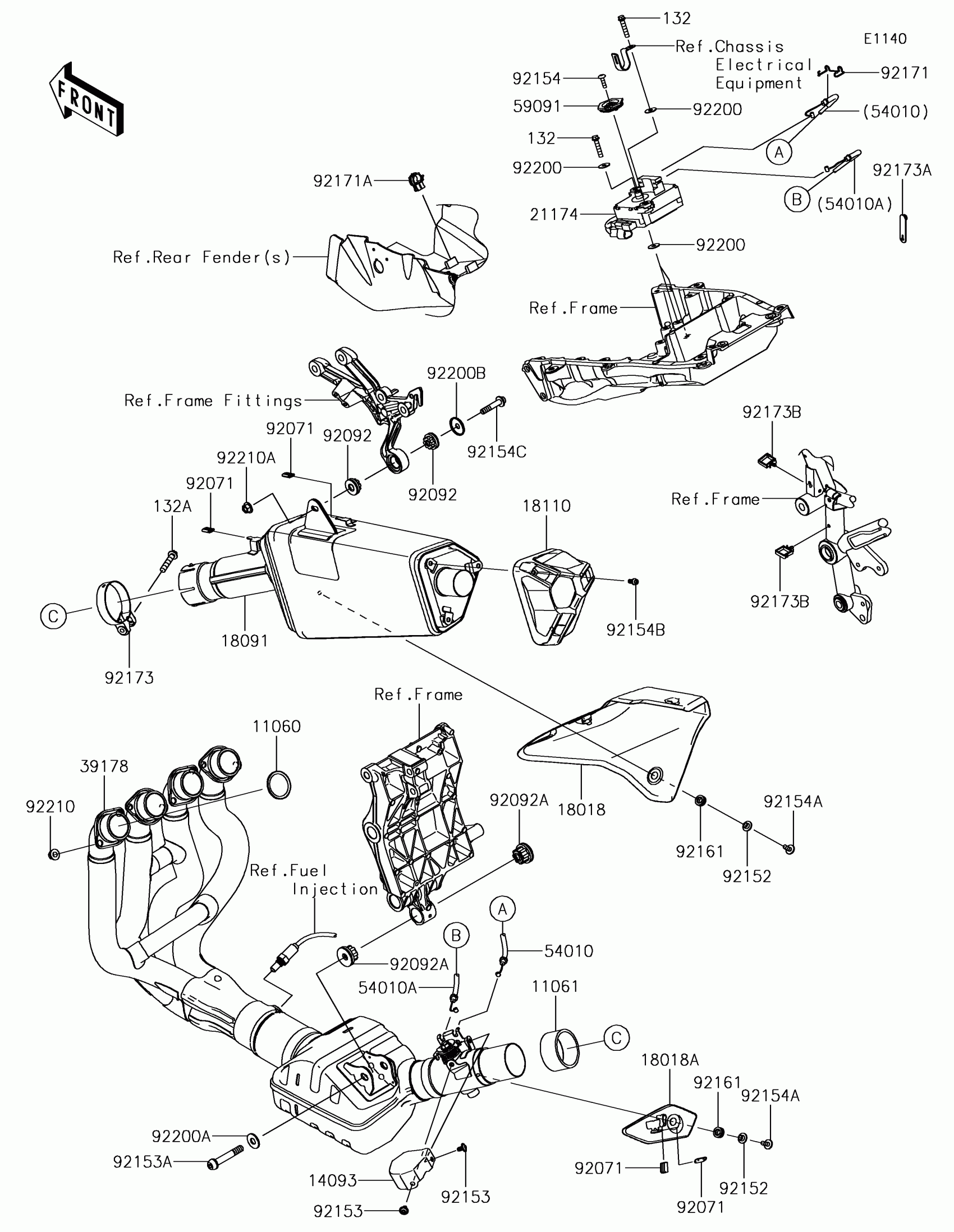

Kawasaki NINJA H2™ SX Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE

11060-1203

$8.22

11061

GASKET,MUFFLER JOINT

11061-0980

$30.43

14093

COVER

14093-0643

$45.67

18018

PLATE-HEAT GUARD,RR

18018-0606

$352.49

18018A

PLATE-HEAT GUARD,FR

18018-0614

$150.94

18091

BODY-COMP-MUFFLER

18091-1151

$2,667.00

18110

BODY END-MUFFLER

18110-0201

$170.49

21174

MOTOR-ELECTRIC

21174-0009

$344.73

39178

MANIFOLD-COMP-EXHAUST

39178-0311

$2,589.81

54010

CABLE,OPEN

54010-0622

$131.64

54010A

CABLE,CLOSE

54010-0623

$128.78

59091

PULLEY

59091-0007

$20.88

92071

GROMMET

92071-1270

$7.14

92092

BUSHING-RUBBER

92092-0018

$8.78

92092A

BUSHING-RUBBER

92092-1081

$20.13

92152

COLLAR

92152-2461

$4.98

92153

BOLT,SOCKET,6X10

92153-1527

$1.53

92153A

BOLT,SOCKET,10X60

92153-1837

$10.34

92154

BOLT,TORX,5X18

92154-0217

$3.27

92154A

BOLT,SOCKET,6X14

92154-0907

$1.44

92154B

BOLT,SOCKET,6X12

92154-1453

$1.10

92154C

BOLT,SOCKET,8X40

92154-2808

$16.68

92161

DAMPER

92161-0306

$4.27

92171

CLAMP

92171-0292

$9.76

92171A

CLAMP,EDGE CLIP

92171-1722

$7.90

92173

CLAMP,64.5MM

92173-0284

$33.10

92173A

CLAMP,RUBBER PLATE

92173-1229

$3.56

92173B

CLAMP

92173-1513

$3.29

92200

WASHER

92200-0078

$1.54

92200A

WASHER,10.5X25X2.0

92200-1377

$3.19

92200B

WASHER

92200-1919

$4.08

92210

NUT,8MM

92210-0076

$4.15

92210A

NUT,8MM

92210-0121

$1.62

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132A

BOLT-FLANGED-SMALL,8X40

132BC0840

$2.82
