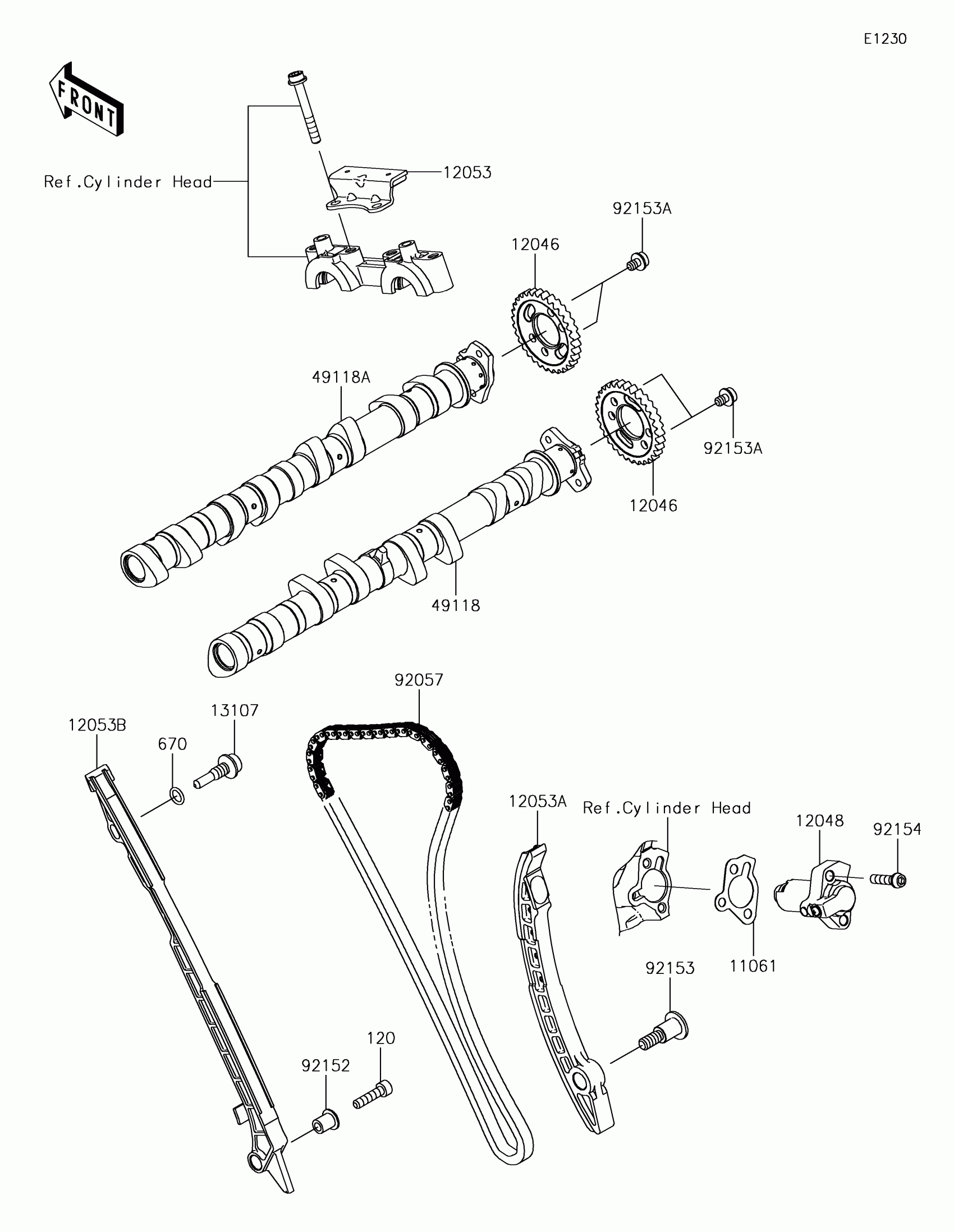

Kawasaki NINJA H2™ SX Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0796

$1.87

12046

SPROCKET,32T

12046-0601

$53.88

12048

TENSIONER-ASSY

12048-0101

$170.13

12053

GUIDE-CHAIN,UPP

12053-0041

$46.36

12053A

GUIDE-CHAIN,RR

12053-0217

$115.41

12053B

GUIDE-CHAIN,FR

12053-0251

$76.81

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,INTAKE

49118-0890

$662.12

49118A

CAMSHAFT-COMP,EXHAUST

49118-0891

$662.12

92057

CHAIN,98XRH2015-126M

92057-0202

$97.13

92152

COLLAR

92152-0413

$8.46

92153

BOLT,SOCKET,8X16.7

92153-0446

$7.70

92153A

BOLT,FLANGED,6X8

92153-0455

$1.81

92154

BOLT,SOCKET,6X25

92154-1457

$1.32

120

BOLT-SOCKET,6X25

120CA0625

Unavailable

670

O RING,9MM

670D1509

$3.57
