Description

Price

671

O RING,55MM

671B2555

$4.67

13227

HOUSING,RR

13227-0034

$369.65

13272

PLATE

13272-1861

$15.36

13304

HOUSING-ASSY,RR

13304-5001

$561.75

41036

HUB-ASSY,RR

41036-0679

$469.79

41068A

AXLE,RR,38.3X204.5

41068-0615

$683.74

42034A

COUPLING,F.W.M.GRAY

42034-0744-46T

$626.32

42034B

COUPLING,INSERT,F.W.M.GRAY

42034-0752-46T

$357.75

42036

SLEEVE,40X50X16.4

42036-0779

$115.58

42041

SPROCKET-HUB,44T

42041-0152

$137.39

49030

HUB,RR

49030-0050

$440.33

49058

WHEEL,RR,F.BLACK

49058-0623-51H

$1,021.24

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92033

RING-SNAP,41X1.6

92033-0753

$9.53

92033A

RING-SNAP

92033-0760

$10.93

92033B

RING-SNAP,62MM

92033-1044

$8.59

92045

BEARING-BALL,40X60X12

92045-0802

$37.71

92046

BEARING-NEEDLE,50X62X25

92046-0617

$111.30

92049

SEAL-OIL,50X62X5

92049-0771

$17.76

92057

CHAIN,DRIVE,EK525RMXZ/3DX118L

92057-0644

$337.51

92058

JOINT-CHAIN

92058-0036

$17.42

92154

BOLT,HUB,12X45

92154-1546

$7.77

92154A

BOLT,SPROCKET,10X24.3

92154-1804

$33.02

92161

DAMPER,SHOCK,RR HUB

92161-1286

$25.61

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

92200A

WASHER,35.1X56X1.6

92200-1764

$7.95

92200B

WASHER,10.2X18X1

92200-1770

$4.17

92210

NUT,12MM

92210-0931

$43.41

92210A

NUT,RR AXLE,35MM

92210-1415

$168.13

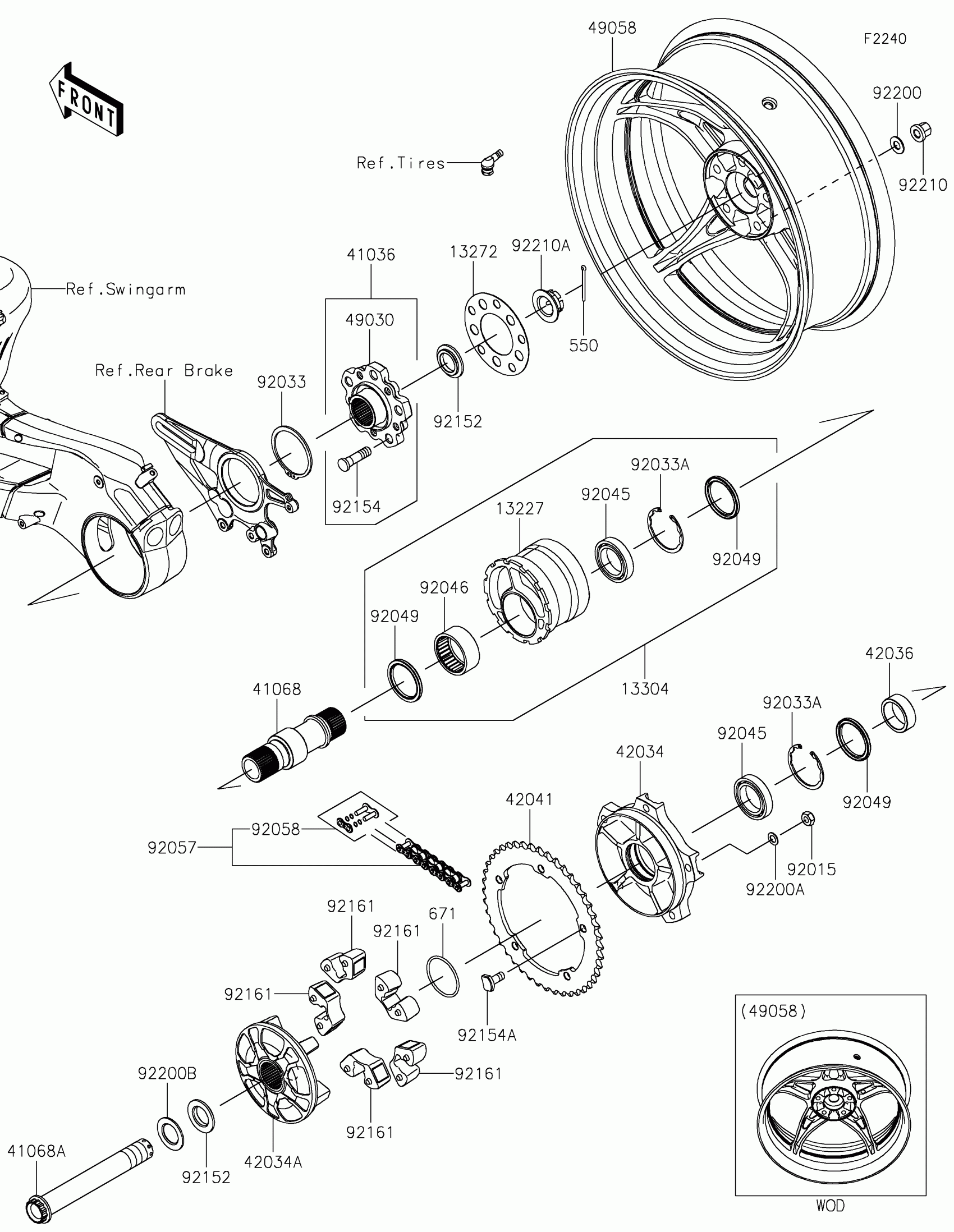

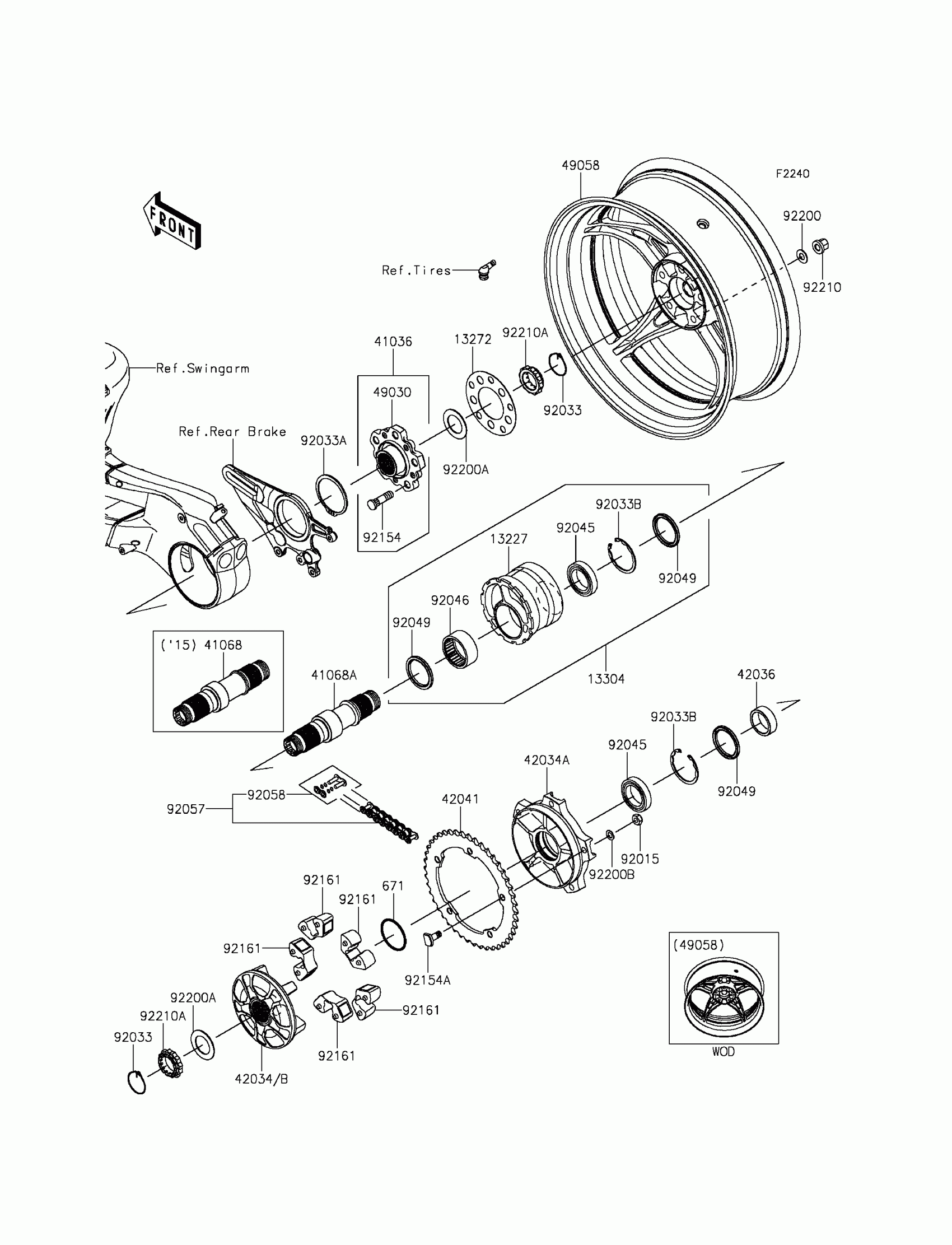

Kawasaki NINJA H2™ Rear Wheel/Chain Diagram
