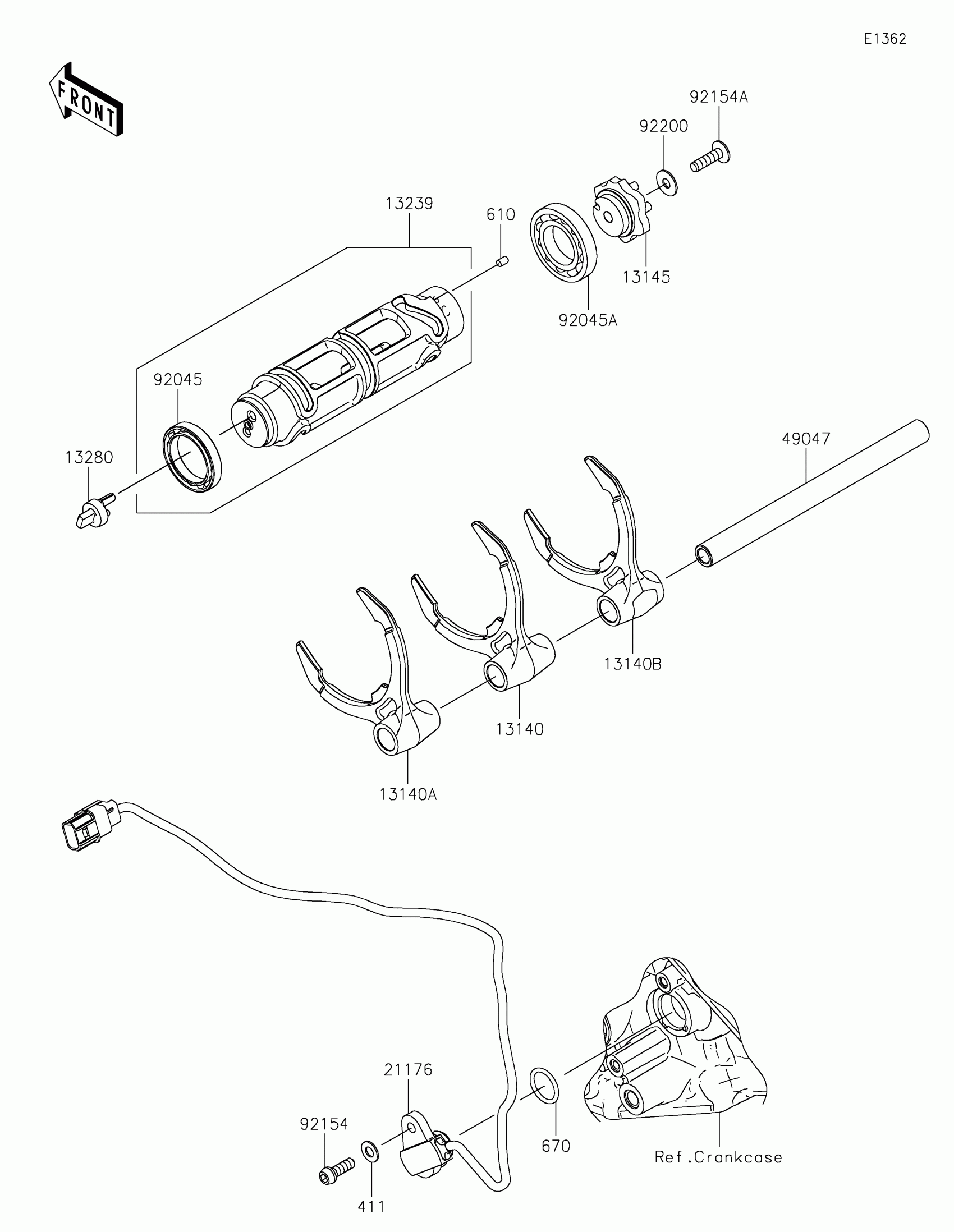

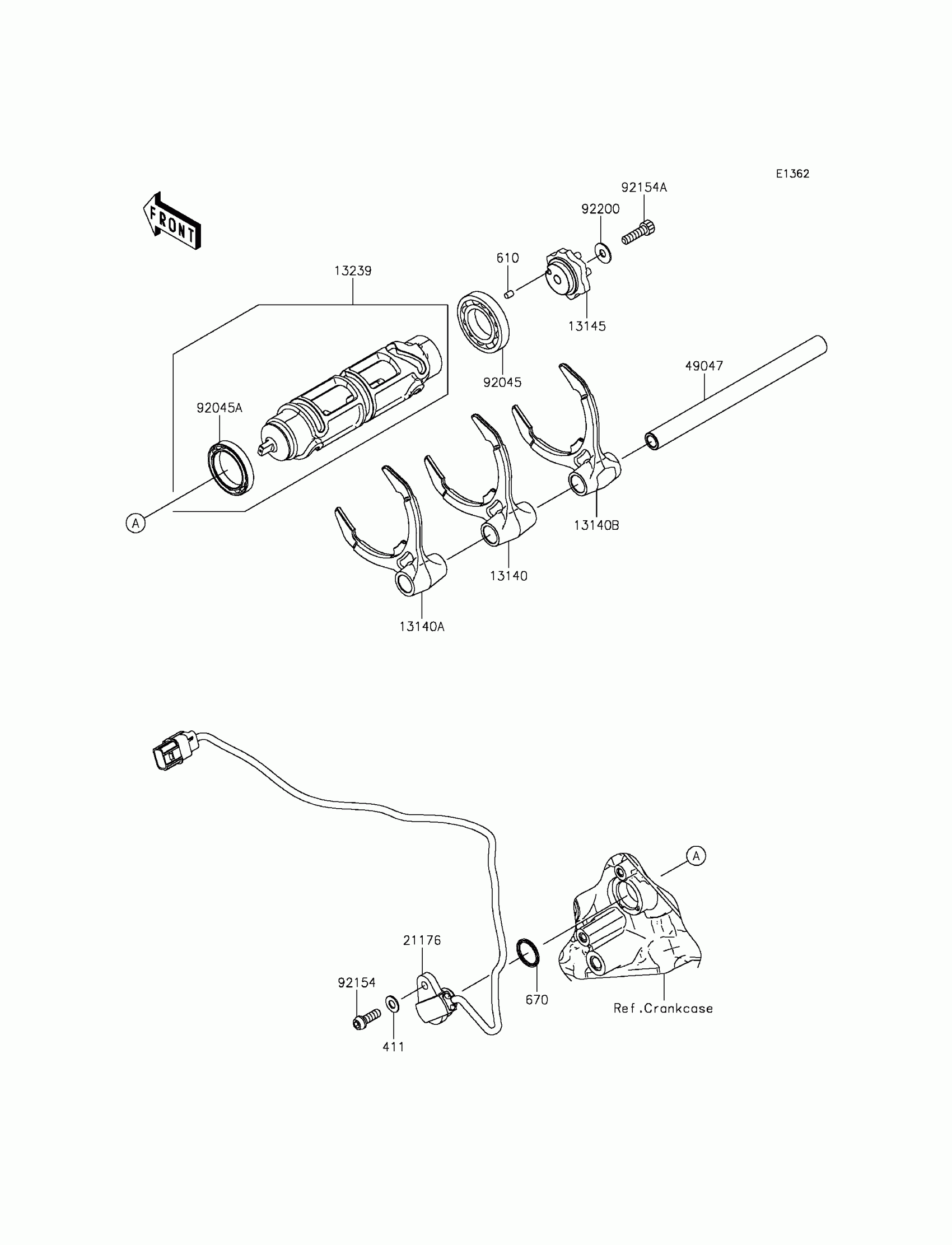

Kawasaki NINJA H2™ Gear Change Drum/Shift Fork(s) Diagram

Description

Price

411

WASHER-PLAIN,6MM

411AA0600

$2.06

610

ROLLER,4X6

610A0406

$3.29

670

O RING,18MM

670D2018

$1.39

13140

FORK-SHIFT,3RD&4TH

13140-0645

$241.57

13140A

FORK-SHIFT,5TH&6TH

13140-0646

$244.89

13140B

FORK-SHIFT,1ST&2ND

13140-0649

$244.89

13145

CAM-CHANGE DRUM

13145-0561

$60.46

13239

DRUM-ASSY-CHANGE

13239-0040

$217.67

21176

SENSOR,GEAR POSITION

21176-0787

$154.98

49047

ROD-SHIFT

49047-0049

$55.16

92045

BEARING-BALL,16005

92045-1045

$28.80

92045A

BEARING-BALL,6806

92045-1152

$46.71

92154

BOLT,SOCKET,6X18

92154-1455

Unavailable

92154A

BOLT,SOCKET,6X22

92154-1542

$1.69

92200

WASHER,6X16X1

92200-2145

$0.93
