Description

Price

13087

HUB-CLUTCH

13087-0579

$272.58

13088

PLATE-FRICTION

13088-0575

$19.92

13088A

PLATE-FRICTION

13088-0576

$19.92

13089

PLATE-CLUTCH,T=2.3

13089-0027

$15.44

13089A

PLATE-CLUTCH,T=2.6

13089-0028

$12.93

13089B

PLATE-CLUTCH,T=2.9

13089-0030

$12.93

13089C

PLATE-CLUTCH,T=2.9

13089-0030

$12.93

13089D

PLATE-CLUTCH,T=2.6

13089-0036

$16.46

13095

HOUSING-COMP-CLUTCH

13095-0577

$755.36

13116

ROD-PUSH

13116-0719

$41.25

13116A

ROD-PUSH

13116-0720

$219.72

13187

PLATE-CLUTCH OPERATING

13187-0028

$158.92

13231

RELEASE-ASSY-CLUTCH

13231-0005

$219.72

13272

PLATE

13272-1303

$18.05

16007

SEAT-SPRING

16007-0736

$10.49

92022

WASHER,15.1X29X1.0

92022-1463

$3.58

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92046

BEARING-NEEDLE

92046-0041

$20.98

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$11.45

92139

BUSHING,25X38X17.3

92139-0304

$38.39

92145

SPRING

92145-1250

$18.05

92145A

SPRING

92145-1700

$15.68

92152

COLLAR

92152-0866

$42.21

92154

BOLT,SOCKET,6X20

92154-1623

$1.88

92154A

BOLT,SOCKET,6X65

92154-1624

$10.32

92154B

BOLT,FLANGED,6X45

92154-1909

$1.32

92200

WASHER,T=1.2

92200-1580

$10.10

92200A

WASHER,TOOTHED,38.5X25X6.3

92200-1833

$8.92

92210

NUT

92210-0397

$52.69

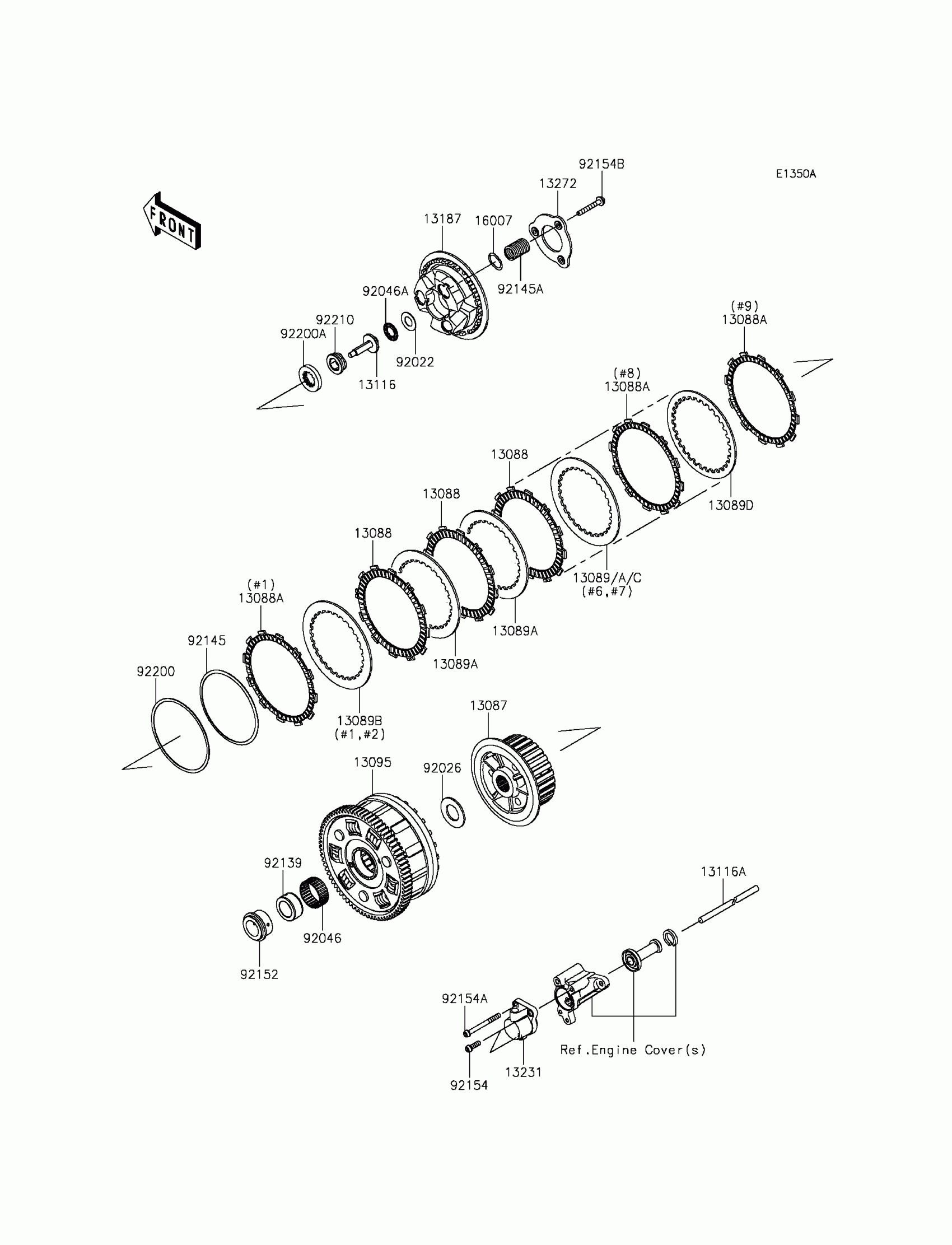

Kawasaki NINJA H2™ Clutch(NGF) Diagram
