2016 Kawasaki Ninja H2™ Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

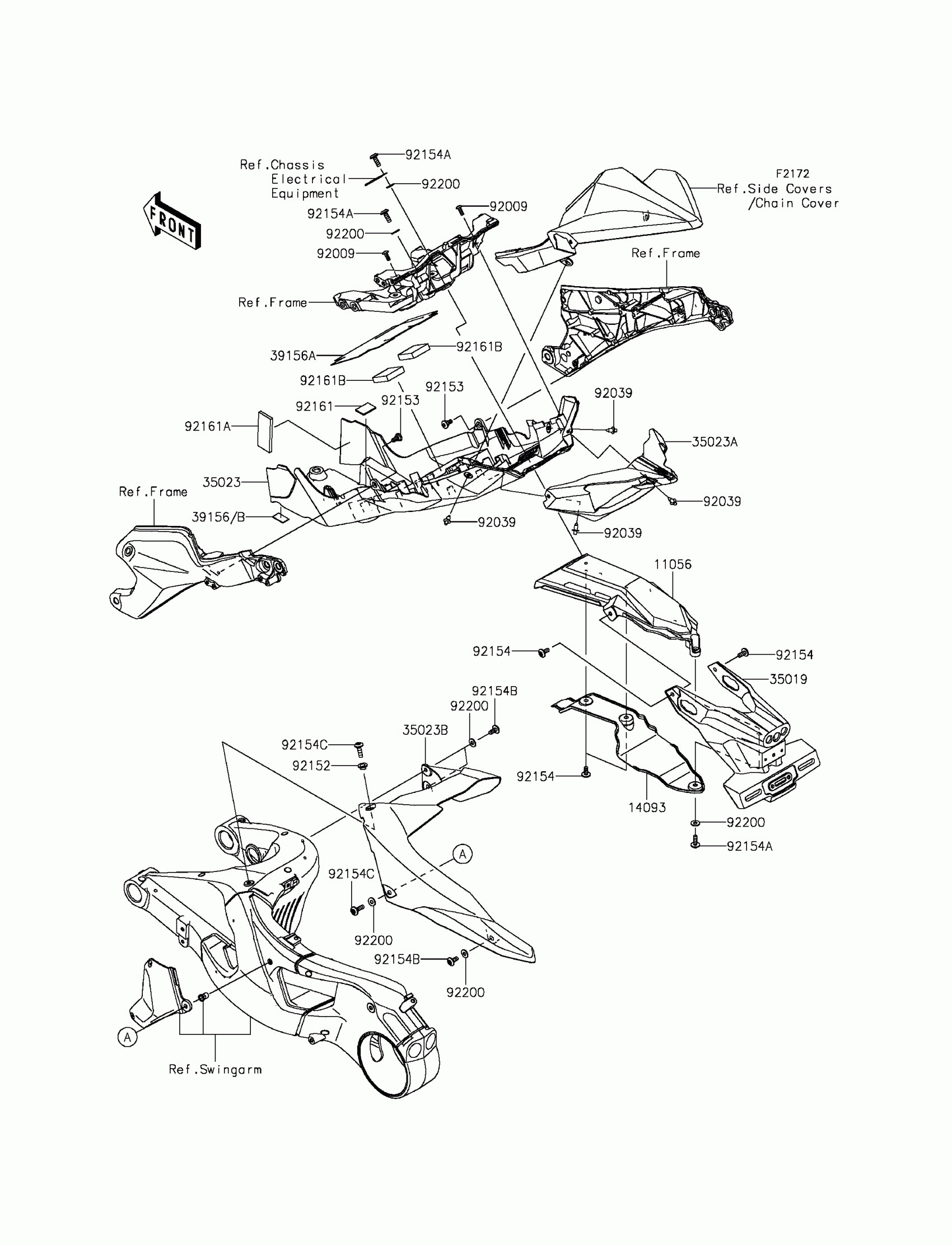

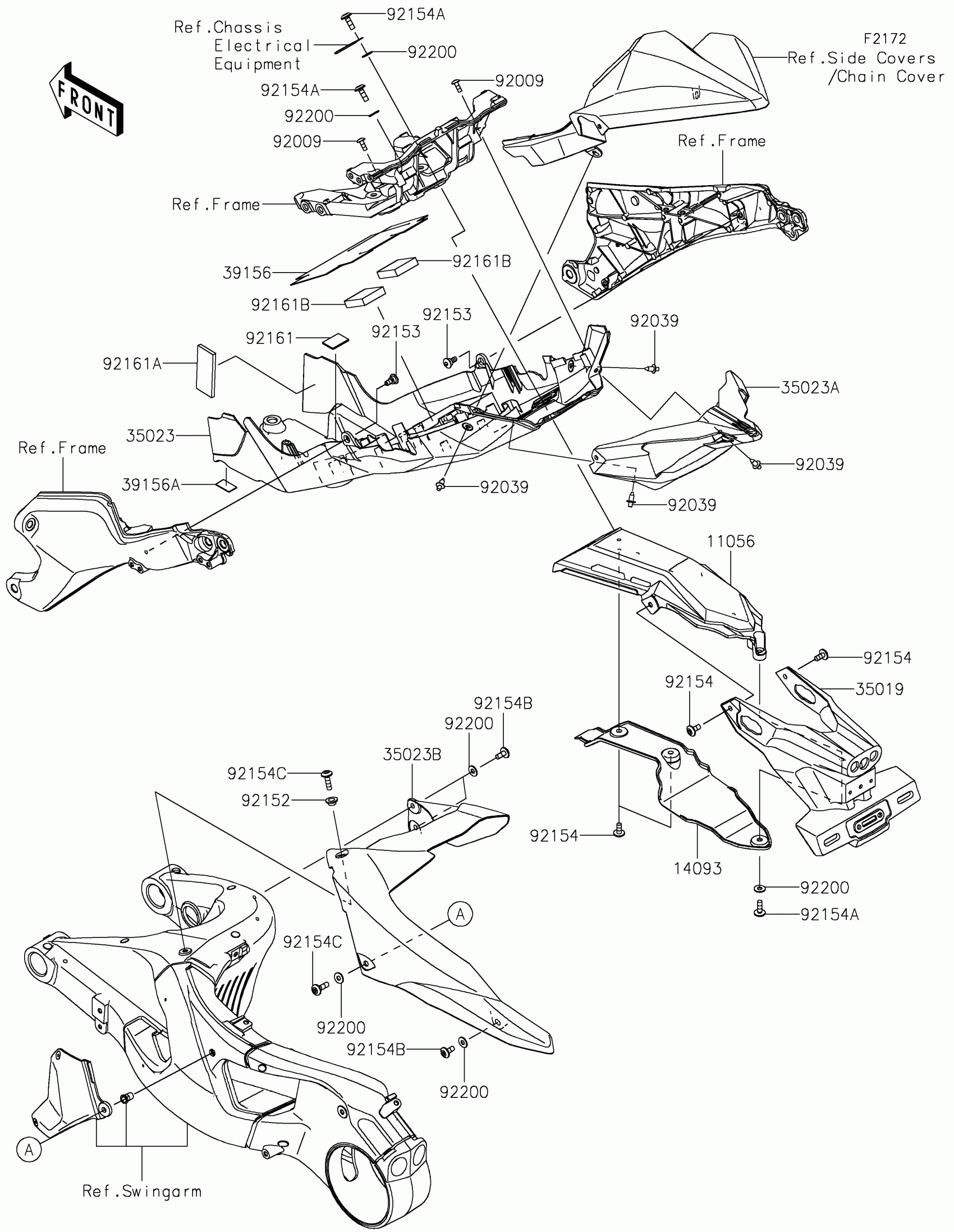

2016 Kawasaki Ninja H2™ Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,FLAP STAY

11056-4341

1
Out of stock

14093

COVER,FLAP STAY BRKT.

14093-0177

1
Out of stock

35019

FLAP

35019-0597

1
Out of stock

35023

FENDER-REAR,FR

35023-0397

1
Out of stock

35023A

FENDER-REAR,RR

35023-0398

1
Out of stock

35023B

FENDER-REAR

35023-0399

1
Out of stock

39156A

PAD,195X115X1

39156-1884

1
Out of stock

39156B

PAD,15X25X1

39156-2119

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92152

COLLAR,6.5X10X6.2

92152-2152

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1956

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1025

1
Out of stock

92154A

BOLT,SOCKET,6X18

92154-1694

1
Out of stock

92154B

BOLT,SOCKET,6X14

92154-1807

1
Out of stock

92154C

BOLT,SOCKET,6X22

92154-1810

1
Out of stock

92161

DAMPER,30X20X2

92161-0833

1
Out of stock

92161A

DAMPER,30X70X5

92161-1127

1
Out of stock

92161B

DAMPER,40X40X10

92161-1603

1
Out of stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock
