2016 Kawasaki Ninja H2™ Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

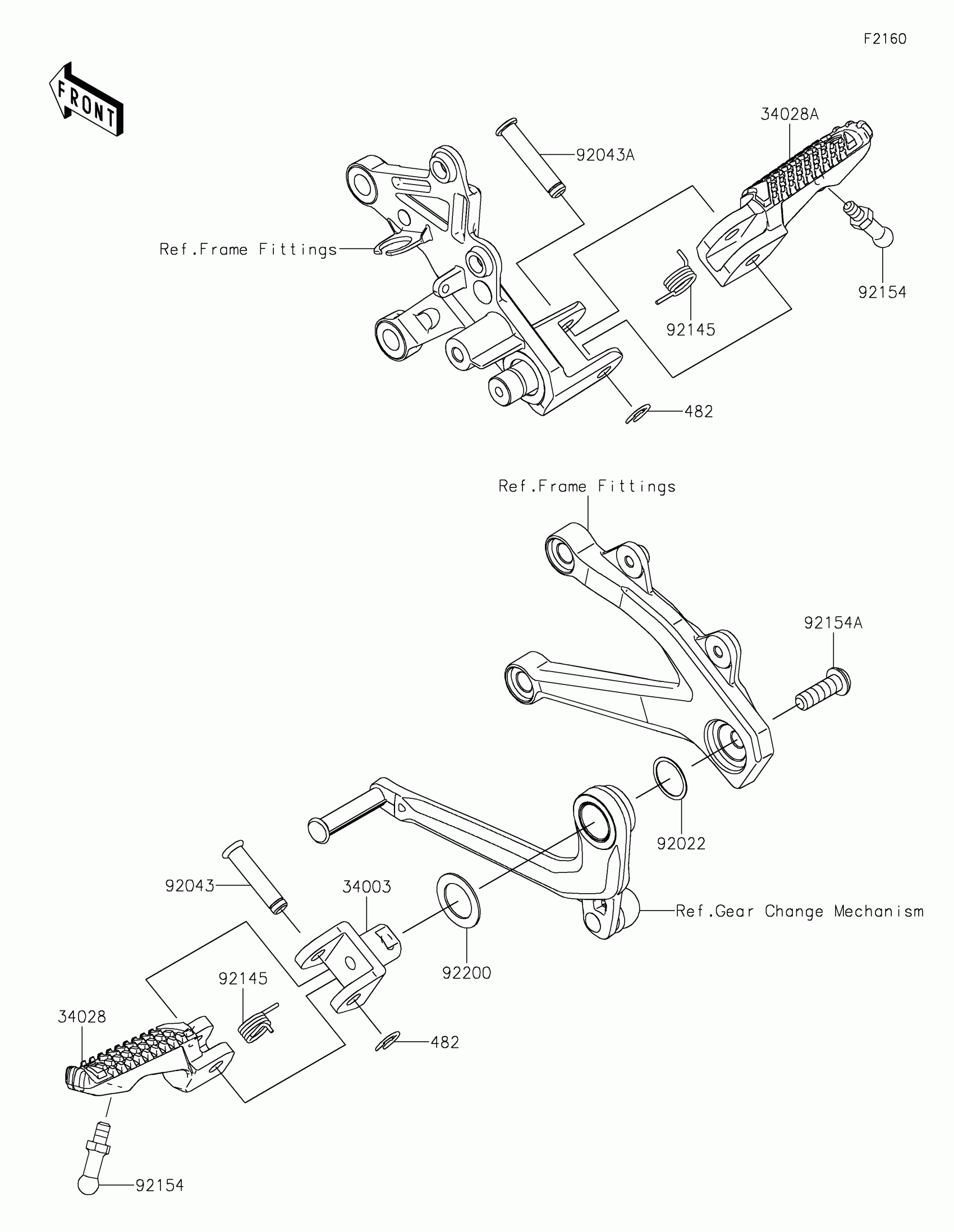

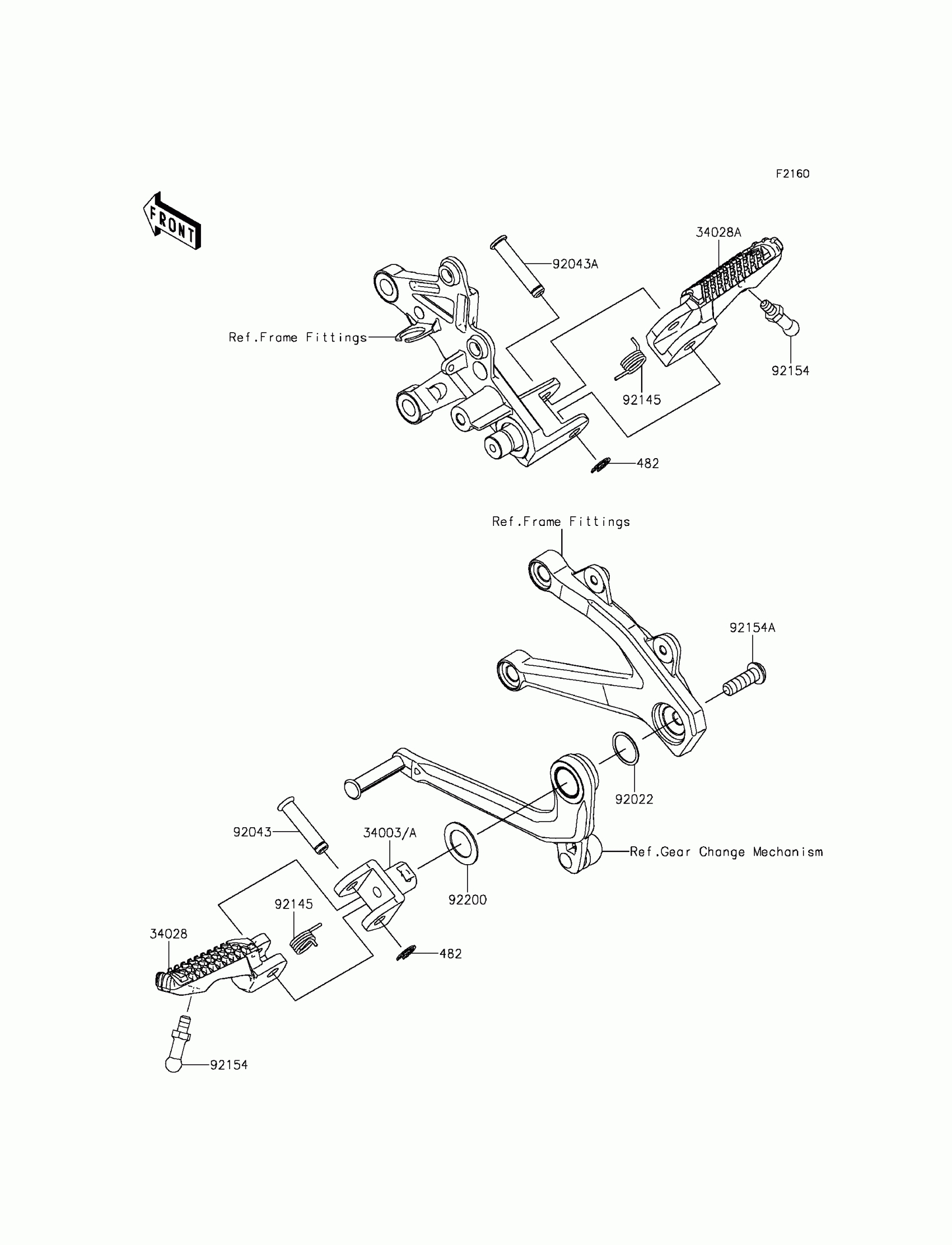

2016 Kawasaki Ninja H2™ Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

CIRCLIP-TYPE-E

482EB7000

1

$2.05

In stock

34003A

HOLDER-STEP,LH,GRAY

34003-0161-53G

1

$167.96

In stock

34028

STEP,LH

34028-0342

1

$80.98

In stock

34028A

STEP,RH

34028-0343

1

$80.98

In stock

92022

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92043

PIN,8X36.5

92043-0856

1

$3.14

In stock

92043A

PIN,8X40.5

92043-0857

1

$3.49

In stock

92145

SPRING,13X1.6

92145-1656

1

$4.34

In stock

92154

1

$7.24

In stock

92154A

BOLT,SOCKET,8X25

92154-1737

1

$3.19

In stock

92200

WASHER,18.3X28X1

92200-1680

1
Out of stock
