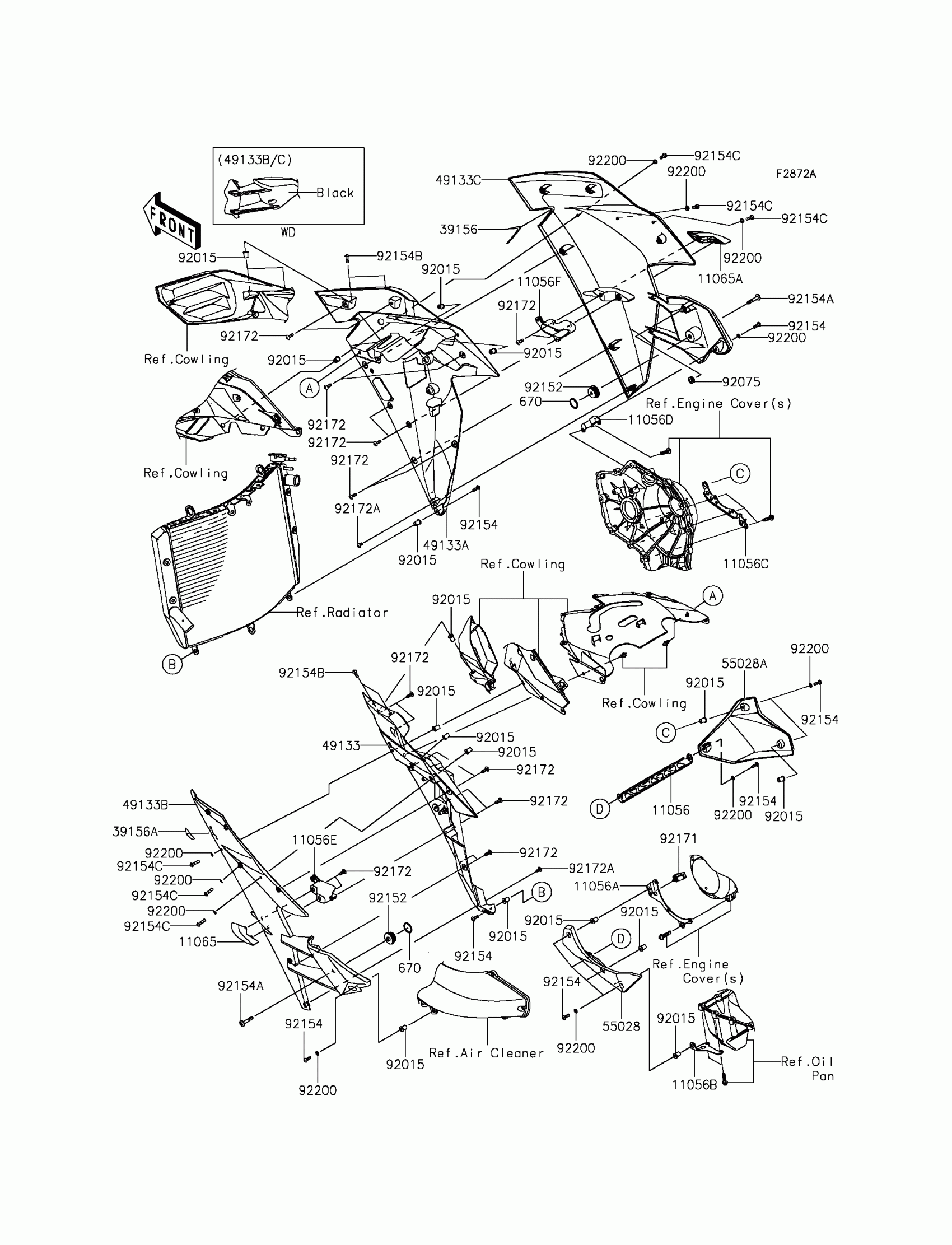

Kawasaki NINJA H2™ Cowling Lowers(NGF) Diagram

#

Description
Price

670

O RING,22MM

670B2022

$3.72

11056

BRACKET,LWR COWL.

11056-7016

$23.78

11056A

BRACKET,LWR COWL.,G. COVER

11056-7017

$9.37

11056B

BRACKET,LWR COWL.,OIL PAN

11056-7018

$5.44

11056C

BRACKET,LWR COWL.,RH

11056-7019

$12.69

11056D

BRACKET,CLUTCH COVER

11056-7020

$7.69

11056E

BRACKET,SHROUD,LH

11056-7745

$5.44

11056F

BRACKET,OVER FLOW HOSE

11056-7746

$5.44

11065

CAP,SHROUD,LH,M.C.S.BLACK

11065-0886-53X

$139.41

11065A

CAP,SHROUD,RH,M.C.S.BLACK

11065-0887-53X

$139.41

39156

PAD,SHROUD,RH

39156-1922

Unavailable

39156A

PAD,SHROUD,LH

39156-1923

Unavailable

49133

SHROUD,INNER,LH

49133-0013

$88.15

49133A

SHROUD,INNER,RH

49133-0014

$88.15

49133B

SHROUD,LH,M.C.S.BLACK

49133-5195-53X

$1,704.64

49133C

SHROUD,RH,M.C.S.BLACK

49133-5196-53X

$1,704.64

55028

COWLING,LWR,LH,M.F.S.BLACK

55028-0540-739

$183.98

55028A

COWLING,LWR,RH,M.F.S.BLACK

55028-0541-739

$183.98

92015

NUT,WELL,5MM

92015-1757

$5.81

92075

DAMPER

92075-161

$3.72

92152

COLLAR,6.3X30X16.7

92152-1967

$23.07

92154

BOLT,SOCKET,5X16

92154-1560

$2.05

92154A

BOLT,SOCKET,6X34

92154-1627

$2.05

92154B

BOLT,SOCKET,5X16

92154-1729

$1.32

92154C

BOLT,SOCKET,5X20

92154-1781

$1.10

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92172

SCREW,TAPPING,5X16

92172-0175

$1.53

92172A

SCREW,TAPPING,5X10

92172-0335

$1.81

92200

WASHER,5.2X10X1.0

92200-1820

$0.68
