2025 Kawasaki Ninja H2®R ABS Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

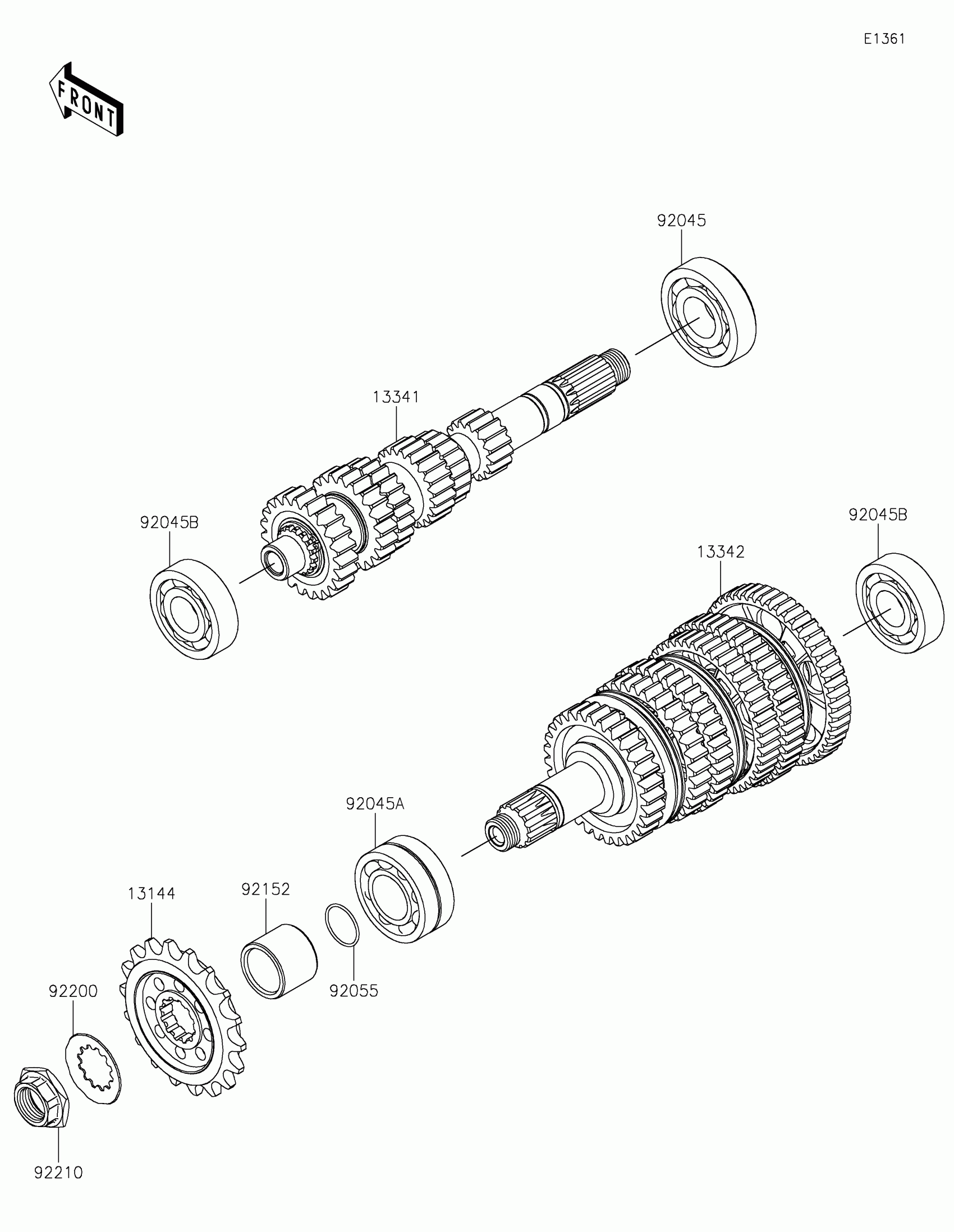

2025 Kawasaki Ninja H2®R ABS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13144

SPROCKET-OUTPUT,18T

13144-0575

1
Out of stock

13341

1

$1,263.50

In stock

13342

TRANSMISSION-ASSY OUTPUT

13342-0703

1
Out of stock

92045

BEARING-BALL,830045-5SH2

92045-0047

1
Out of stock

92045A

BEARING-BALL,DAC2857NSSH6CS9

92045-0049

1
Out of stock

92045B

BEARING-BALL,63/22LU

92045-0156

1
Out of stock

92055

RING-O,23.5X1.5

92055-0823

1
Out of stock

92152

COLLAR,27.5X35X27.7

92152-1954

1
Out of stock

92200

WASHER,23.9X45X1.0

92200-0260

1
Out of stock

92210

NUT,20MM

92210-0942

1
Out of stock
