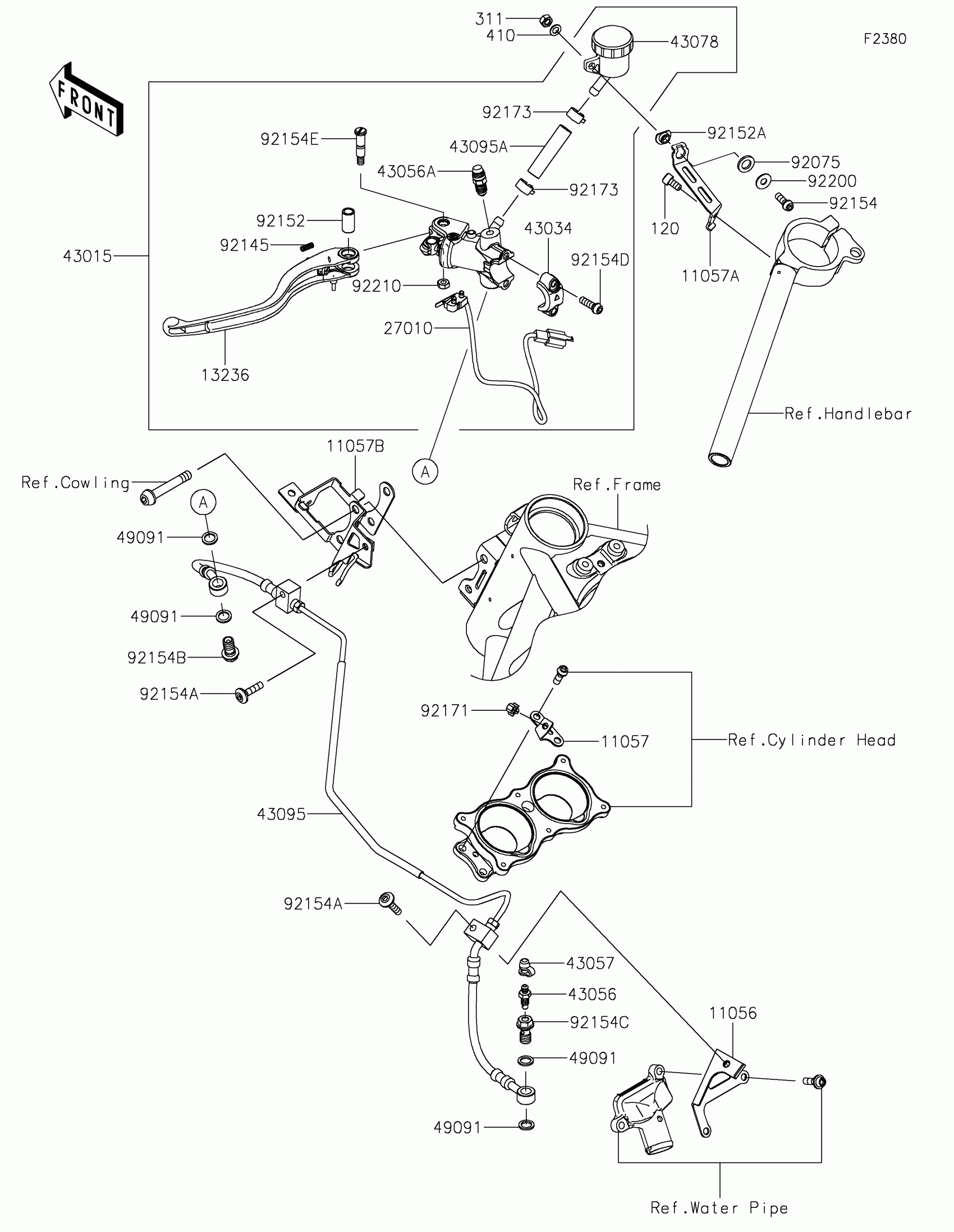

Kawasaki NINJA H2®R ABS Clutch Master Cylinder Diagram

#

Description
Price

11056

BRACKET,CYLINDER

11056-7079

$9.59

11057

BRACKET,THROBO. HOLDER

11057-0041

$3.56

11057A

BRACKET,RESERVOIR

11057-0053

$12.95

11057B

BRACKET,FRM HEAD

11057-0567

$42.23

13236

LEVER-COMP,CLUTCH

13236-0771

$111.92

27010

SWITCH,STOP

27010-0824

$84.38

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0669

$446.54

43034

HOLDER-BRAKE

43034-0121

Unavailable

43056

BREATHER-BRAKE

43056-0007

$22.39

43056A

BREATHER-BRAKE

43056-0019

$24.76

43057

CAP-BREATHER

43057-003

$1.74

43078

RESERVOIR

43078-0586

$33.88

43095

HOSE-BRAKE,CLUTCH

43095-0893

$371.64

43095A

HOSE-BRAKE

43095-0909

$5.56

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92075

DAMPER

92075-1564

$4.15

92145

SPRING

92145-1683

$2.63

92152

COLLAR,LEVER

92152-2151

$8.75

92152A

COLLAR,6.5X10X5.3

92152-2225

$19.86

92154

BOLT,SOCKET,6X18

92154-1455

Unavailable

92154A

BOLT,SOCKET,6X25

92154-1532

$1.95

92154B

BOLT,BANJO,10X19

92154-1554

$22.00

92154C

BOLT,BANJO,10X19,C. RELEASE

92154-1622

$39.83

92154D

BOLT,SOCKET,6X20

92154-1644

$1.77

92154E

BOLT,LEVER

92154-1809

$11.27

92171

CLAMP

92171-0939

$3.93

92173

CLAMP,HOSE

92173-1498

$1.88

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,U

92210-1424

$1.88

120

BOLT-SOCKET,6X12

120CB0612

$2.05

311

NUT-HEX

311AC0600

$0.86

410

WASHER-PLAIN-SMALL

410AA0600

$1.03
