Description

Price

13227

HOUSING,RR

13227-0034

$369.65

13272

PLATE

13272-1861

$15.36

13304

HOUSING-ASSY,RR

13304-5002

$523.95

41036

HUB-ASSY,RR

41036-0679

$469.79

41068

AXLE,RR

41068-0637

$659.33

41068A

AXLE,28X202.6

41068-0649

$189.13

42034

COUPLING,F.W.M.GRAY

42034-0744-46T

$626.32

42034A

COUPLING,INSERT,F.W.M.GRAY

42034-0752-53D

$354.50

42036

SLEEVE,40X50X16.4

42036-0779

$115.58

42041

SPROCKET-HUB,42T

42041-0153

$137.39

49030

HUB,RR

49030-0050

$440.33

49058

WHEEL,RR,F.BLACK

49058-0670-51H

$1,021.24

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92033

RING-SNAP

92033-0760

$10.93

92033A

RING-SNAP,62MM

92033-1044

$8.59

92045

BEARING-BALL,40X60X12

92045-0802

$37.71

92046

BEARING-NEEDLE,50X62X25

92046-0617

$111.30

92049

SEAL-OIL,50X62X5

92049-0872

$17.76

92057

CHAIN,DRIVE,EK525RMXZ/3DX116L

92057-0636

$544.92

92058

JOINT-CHAIN

92058-0036

$17.42

92152

COLLAR,28X48X7.2

92152-2504

$24.78

92154

BOLT,HUB,12X45

92154-1546

$7.77

92154A

BOLT,SPROCKET,10X24.3

92154-2300

$42.74

92161

DAMPER,SHOCK,RR HUB

92161-1286

$25.61

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

92200A

WASHER,10.2X18X1

92200-1770

$4.17

92200B

WASHER,28.5X48X2.3

92200-2277

$25.19

92210

NUT,12MM

92210-0931

$43.41

92210A

NUT,28MM

92210-1654

$88.34

550

PIN-COTTER,4.0X45

550AA4045

$0.97

671

O RING,55MM

671B2555

$4.67

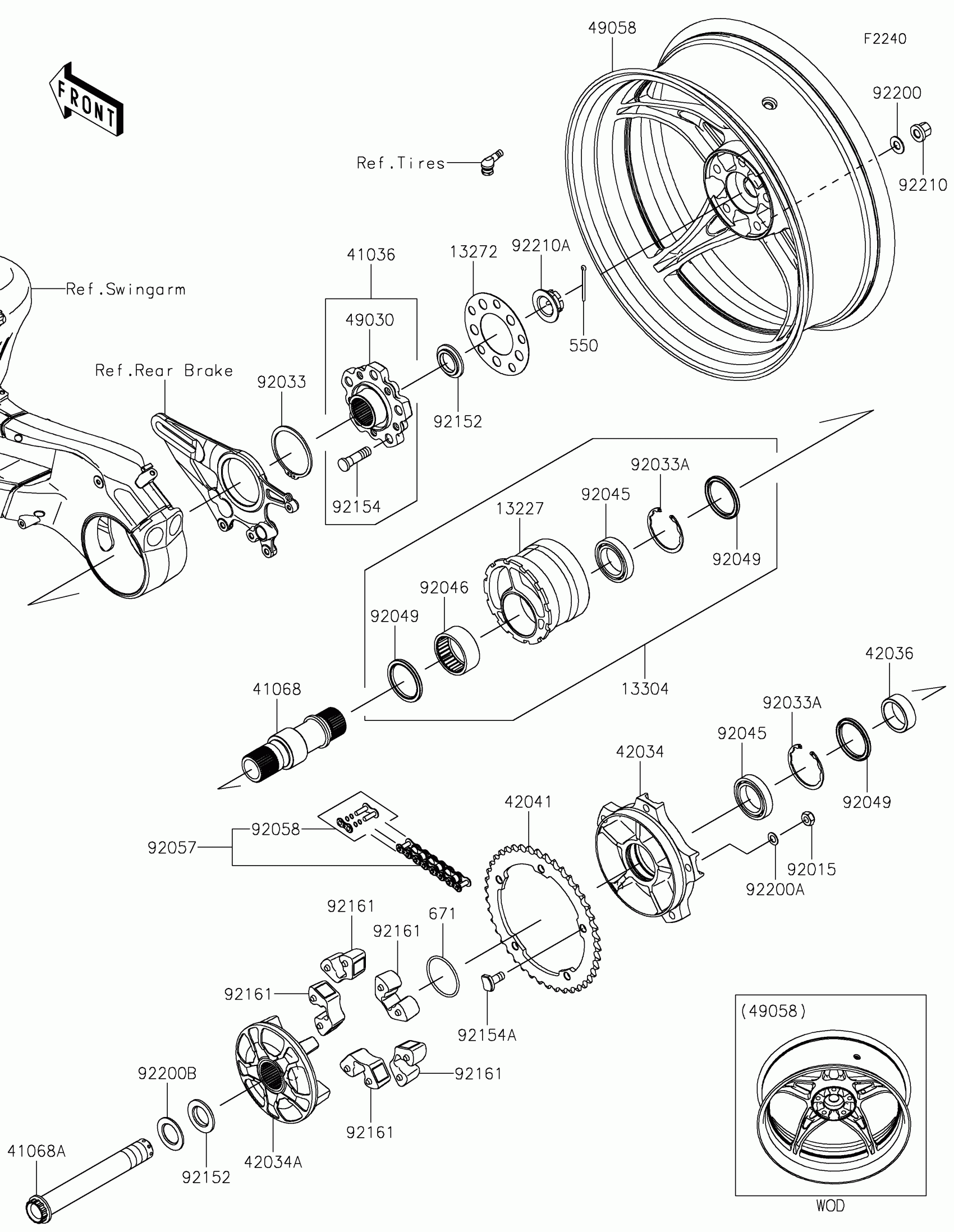

Kawasaki NINJA H2®R ABS Rear Wheel/Chain Diagram
