2025 Kawasaki Ninja H2®R ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

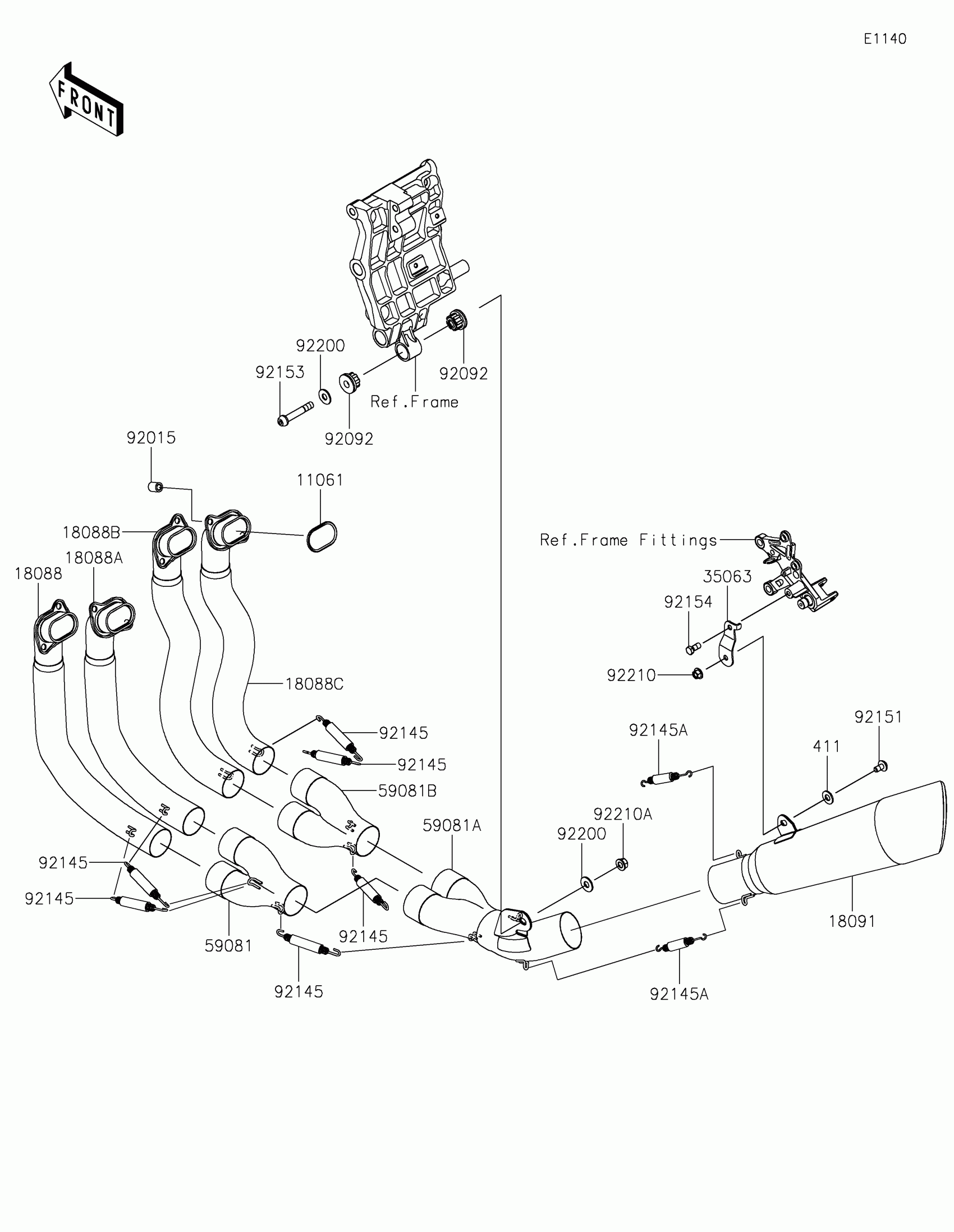

2025 Kawasaki Ninja H2®R ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-0951

1
Out of stock

18088

PIPE-EXHAUST,#1

18088-1284

1
Out of stock

18088A

PIPE-EXHAUST,#2

18088-1285

1
Out of stock

18088B

PIPE-EXHAUST,#3

18088-1286

1
Out of stock

18088C

PIPE-EXHAUST,#4

18088-1287

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0992

1
Out of stock

35063

STAY,MUFFLER BODY

35063-1278

1
Out of stock

59081

MANIFOLD-EXHAUST,4-2 JOINT,LH

59081-0297

1
Out of stock

59081A

MANIFOLD-EXHAUST,2-1 JOINT

59081-0298

1
Out of stock

59081B

MANIFOLD-EXHAUST,4-2 JOINT,RH

59081-0299

1
Out of stock

92015

NUT

92015-1923

1
Out of stock

92092

BUSHING-RUBBER

92092-1081

1
Out of stock

92145

SPRING

92145-1706

1
Out of stock

92145A

SPRING

92145-1707

1
Out of stock

92151

BOLT,SOCKET,8X16

92151-1752

1
Out of stock

92153

BOLT,SOCKET,10X60

92153-1837

1
Out of stock

92154

BOLT,8X18

92154-1659

1
Out of stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0121

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

411

WASHER-PLAIN,8MM

411S0800

1
Out of stock
