2018 Kawasaki Ninja H2™ Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2018 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

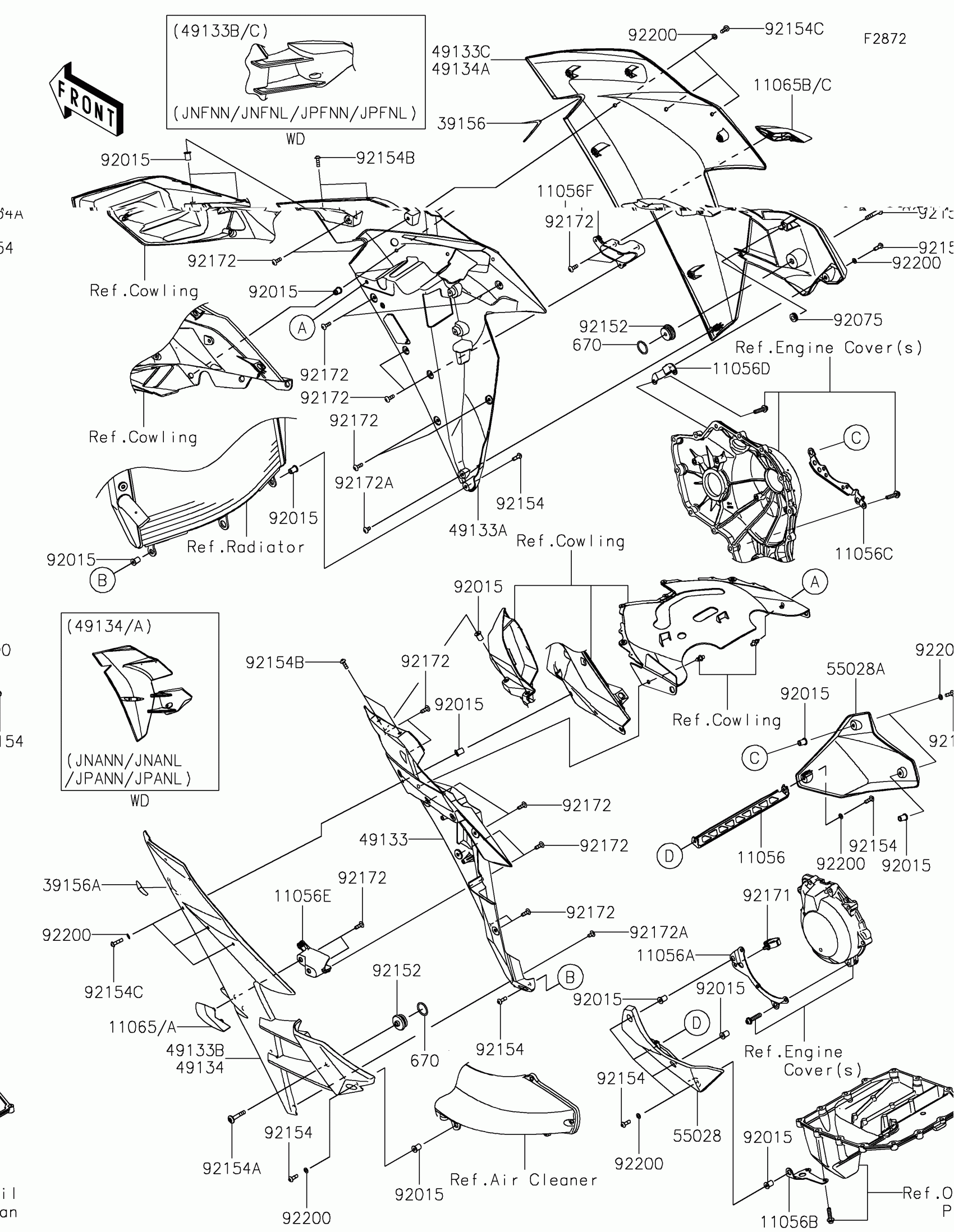

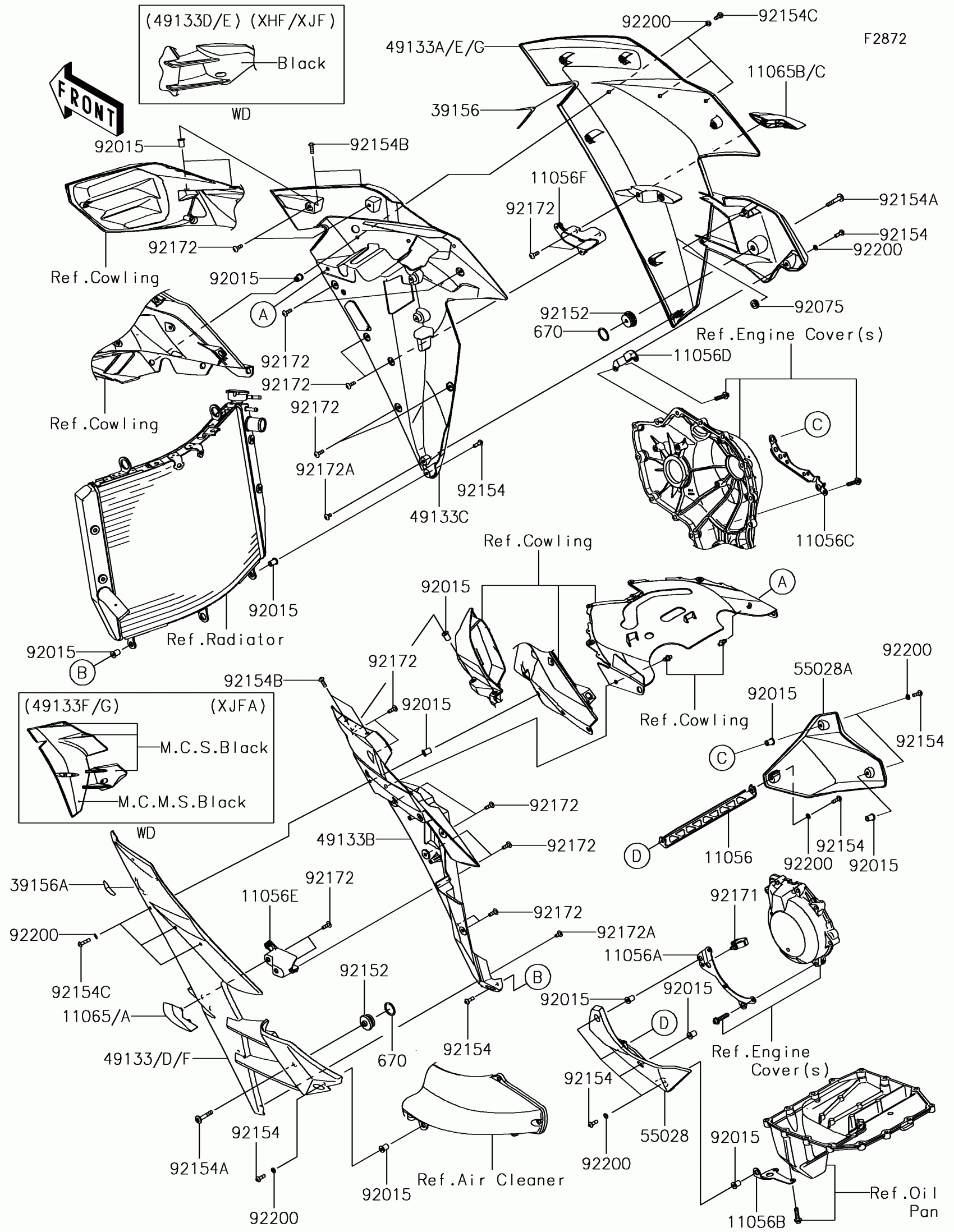

2018 Kawasaki Ninja H2™ Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,LWR COWL.

11056-7016

1
Out of stock

11056A

BRACKET,LWR COWL.,G. COVER

11056-7017

1
Out of stock

11056B

BRACKET,LWR COWL.,OIL PAN

11056-7018

1
Out of stock

11056C

BRACKET,LWR COWL.,RH

11056-7019

1
Out of stock

11056D

BRACKET,CLUTCH COVER

11056-7020

1
Out of stock

11056E

BRACKET,SHROUD,LH

11056-7745

1
Out of stock

11056F

BRACKET,OVER FLOW HOSE

11056-7746

1
Out of stock

11065

CAP,SHROUD,LH,M.C.S.BLACK

11065-0886-53X

1
Out of stock

11065B

CAP,SHROUD,RH,M.C.S.BLACK

11065-0887-53X

1
Out of stock

39156

PAD,SHROUD,RH

39156-2109

1

$3.58

In stock

39156A

PAD,SHROUD,LH

39156-2110

1

$3.58

In stock

49133B

SHROUD,INNER,LH

49133-0015

1
Out of stock

49133C

SHROUD,INNER,RH

49133-0016

1
Out of stock

49133D

SHROUD,LH,M.C.S.BLACK

49133-5053-53X

1
Out of stock

49133E

SHROUD,RH,M.C.S.BLACK

49133-5054-53X

1
Out of stock

55028

COWLING,LWR,LH,M.F.S.BLACK

55028-0540-739

1
Out of stock

55028A

COWLING,LWR,RH,M.F.S.BLACK

55028-0541-739

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92152

COLLAR,6.3X30X16.7

92152-1967

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1560

1
Out of stock

92154A

BOLT,SOCKET,6X34

92154-1627

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1729

1
Out of stock

92154C

BOLT,SOCKET,5X20

92154-1781

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1
Out of stock

92172A

SCREW,TAPPING,5X10

92172-0335

1
Out of stock

92200

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

670

O RING,22MM

670B2022

1
Out of stock
