2025 Kawasaki Ninja H2® ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

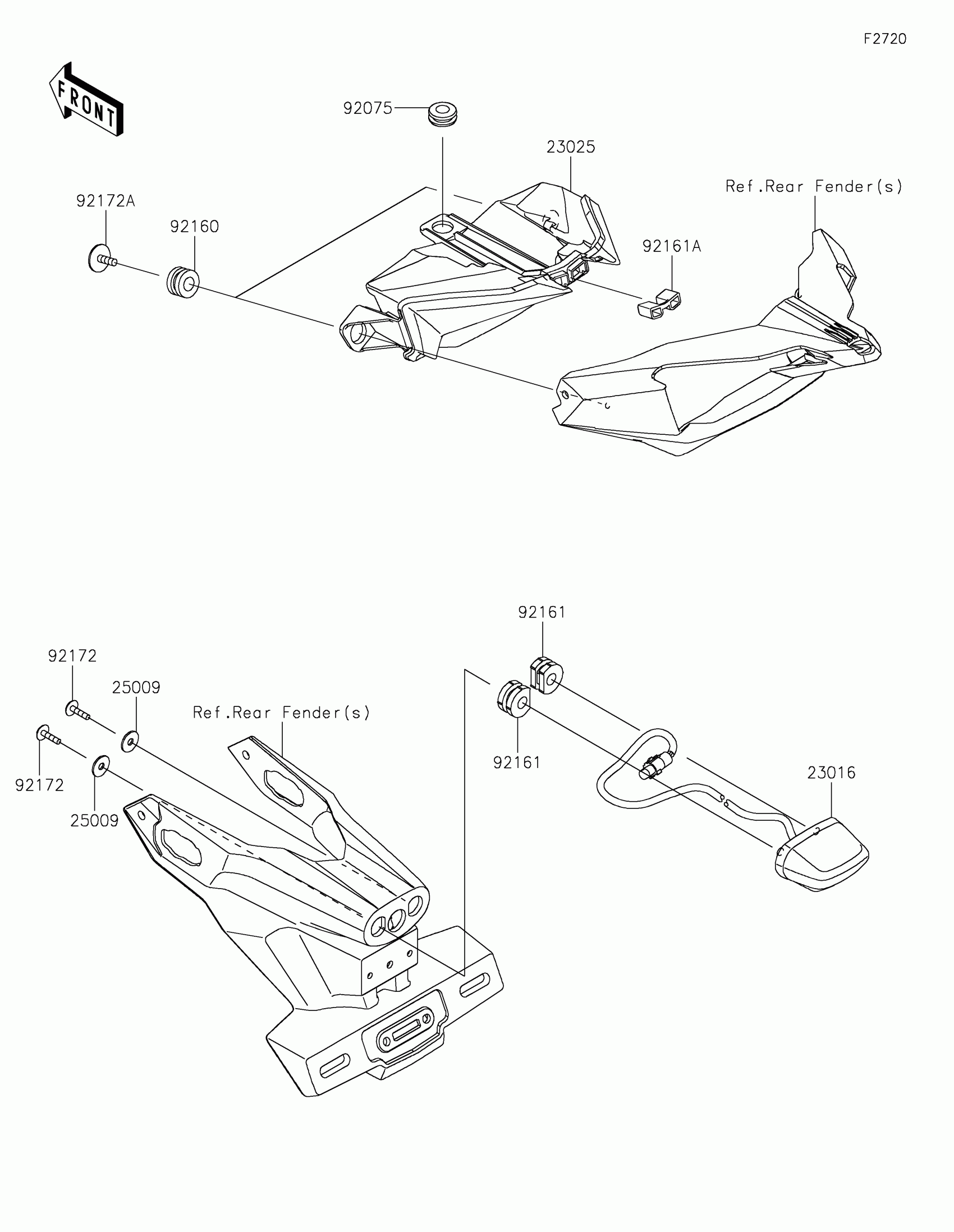

2025 Kawasaki Ninja H2® ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23016

LAMP-ASSY,LICENSE,LED

23016-0639

1
Out of stock

23025

LAMP-TAIL,LED

23025-0346

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

92075

DAMPER

92075-1028

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER

92161-0776

1
Out of stock

92161A

DAMPER,RR FENDER

92161-1727

1

$4.98

In stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,TAPTITE,5X16

92172-0481

1
Out of stock
