2025 Kawasaki Ninja H2® ABS Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

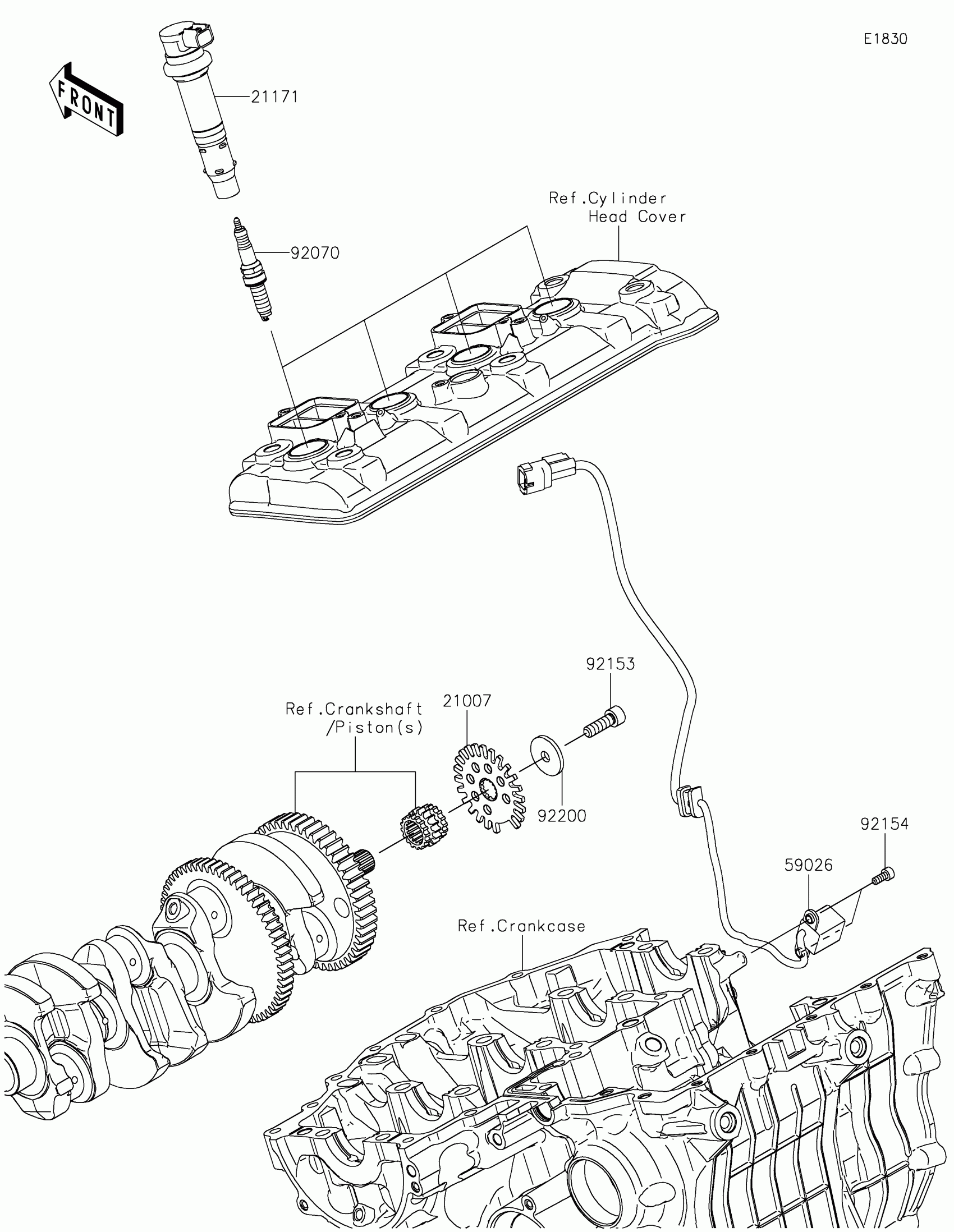

2025 Kawasaki Ninja H2® ABS Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING

21007-0622

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0732

1
Out of stock

59026

COIL-PULSING

59026-0042

1
Out of stock

92070

PLUG-SPARK,SILMAR9E9(NGK)

92070-0720

1
Out of stock

92153

BOLT,8X25

92153-1191

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-1540

1
Out of stock

92200

WASHER,8.2X30X3

92200-2142

1
Out of stock
