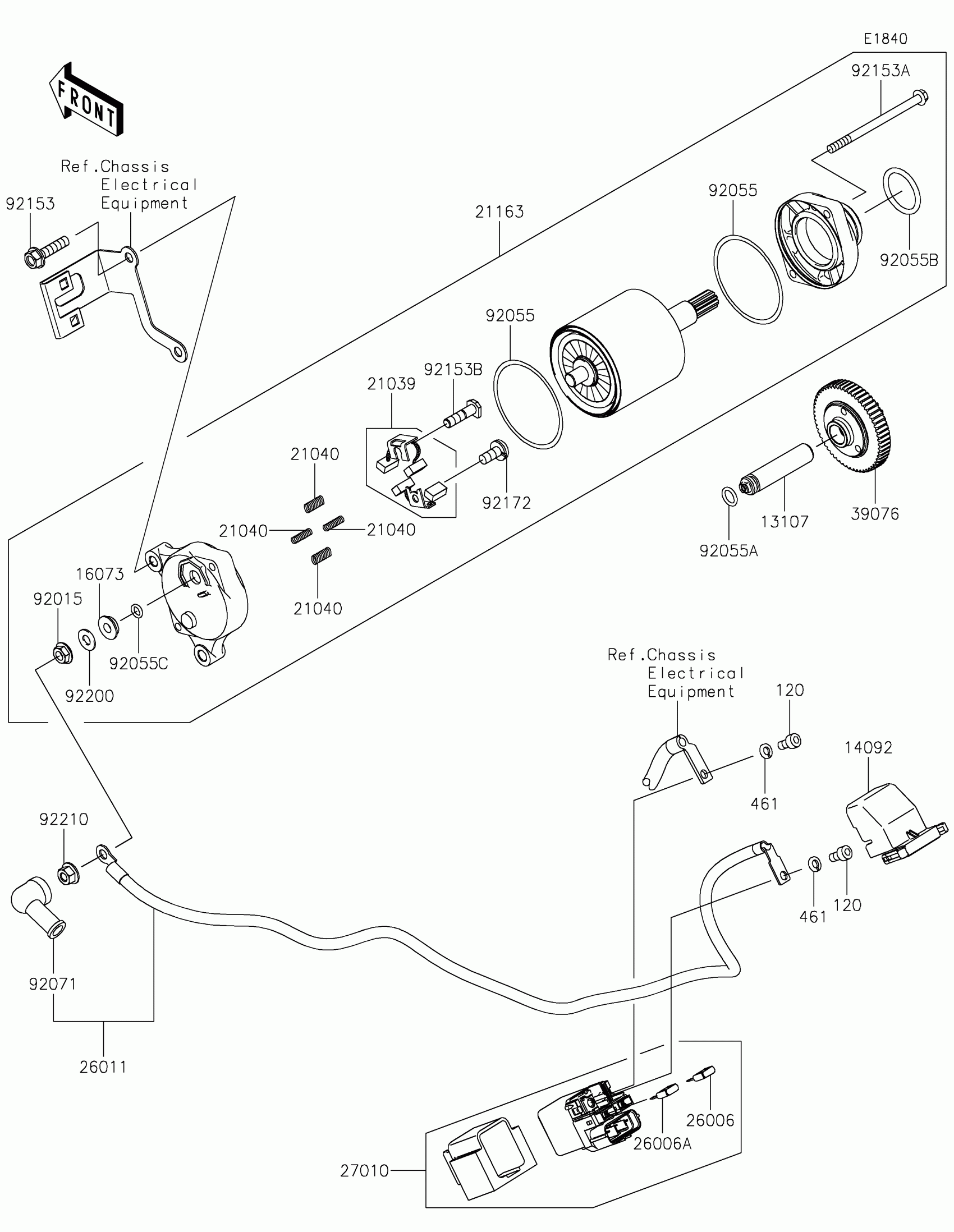

Kawasaki NINJA H2® ABS Starter Motor Diagram

Description

Price

13107

SHAFT

13107-0813

$59.67

14092

COVER

14092-0109

$9.22

16073

INSULATOR

16073-0053

$11.42

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0750

$619.39

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD

26011-0910

$40.60

27010

SWITCH

27010-0773

$131.01

39076

LIMITER

39076-0025

$148.54

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92055

RING-O

92055-0136

$5.91

92055A

RING-O,8.8X1.9

92055-099

$3.57

92055B

RING-O

92055-1276

$7.54

92055C

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0024

$9.86

92153

BOLT,FLANGED,6X25

92153-1592

$1.57

92153A

BOLT

92153-1850

$11.42

92153B

BOLT

92153-1866

$4.14

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92210

NUT,6MM

92210-0188

$1.81

120

BOLT-SOCKET,5X10

120CB0510

Unavailable

461

WASHER-SPRING,5MM

461DA0500

$0.66
