2025 Kawasaki Ninja H2® ABS Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

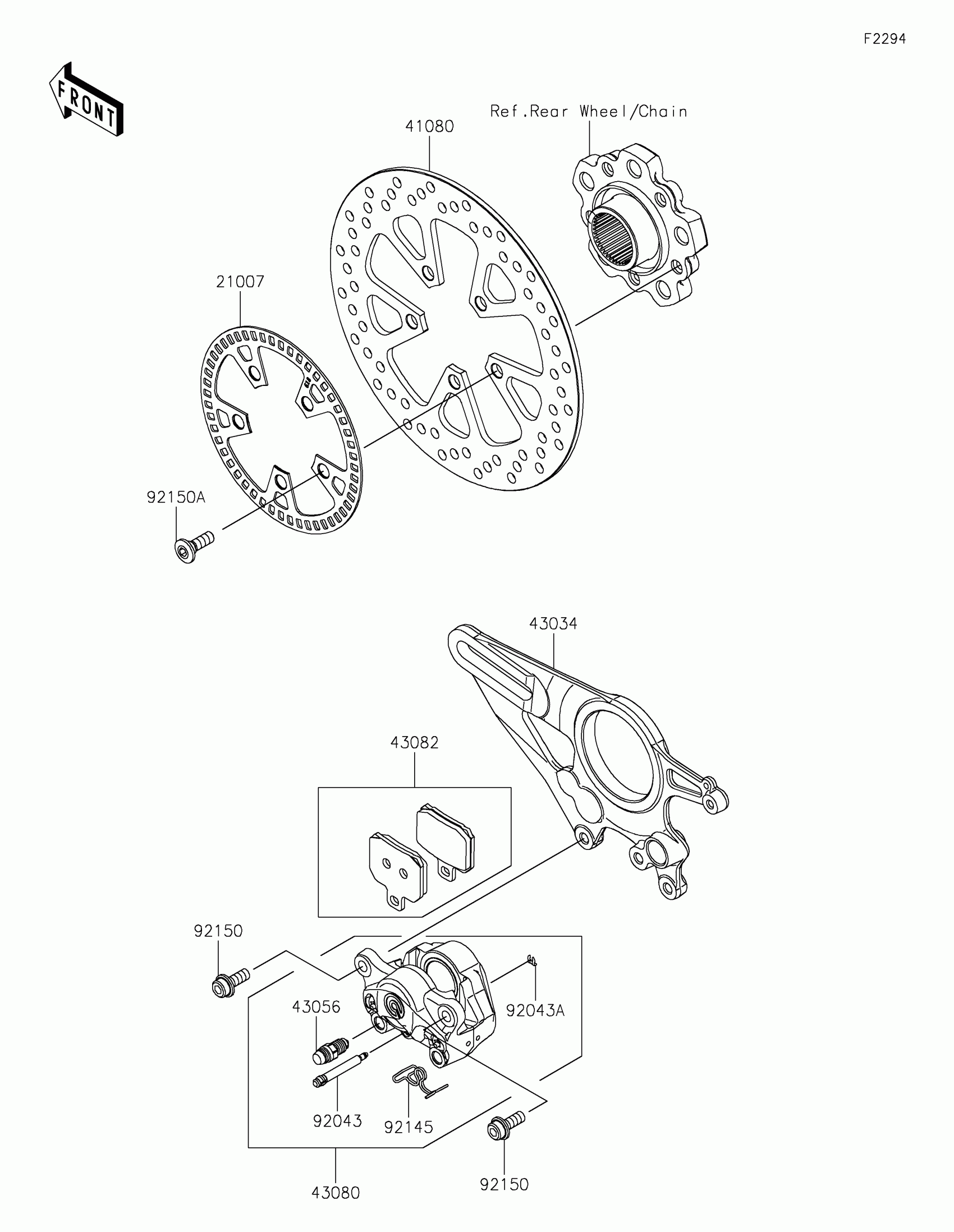

2025 Kawasaki Ninja H2® ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,SENSOR,RR

21007-0632

1
Out of stock

41080

DISC,RR,250MM

41080-0636

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0108

1
Out of stock

43056

BREATHER-BRAKE

43056-0020

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,GRAY

43080-0176-51J

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0158

1
Out of stock

92043

PIN,PAD

92043-0863

1
Out of stock

92043A

PIN,CLIP

92043-0864

1
Out of stock

92145

SPRING

92145-1685

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1155

1
Out of stock

92150A

BOLT,8X25

92150-1858

1
Out of stock
