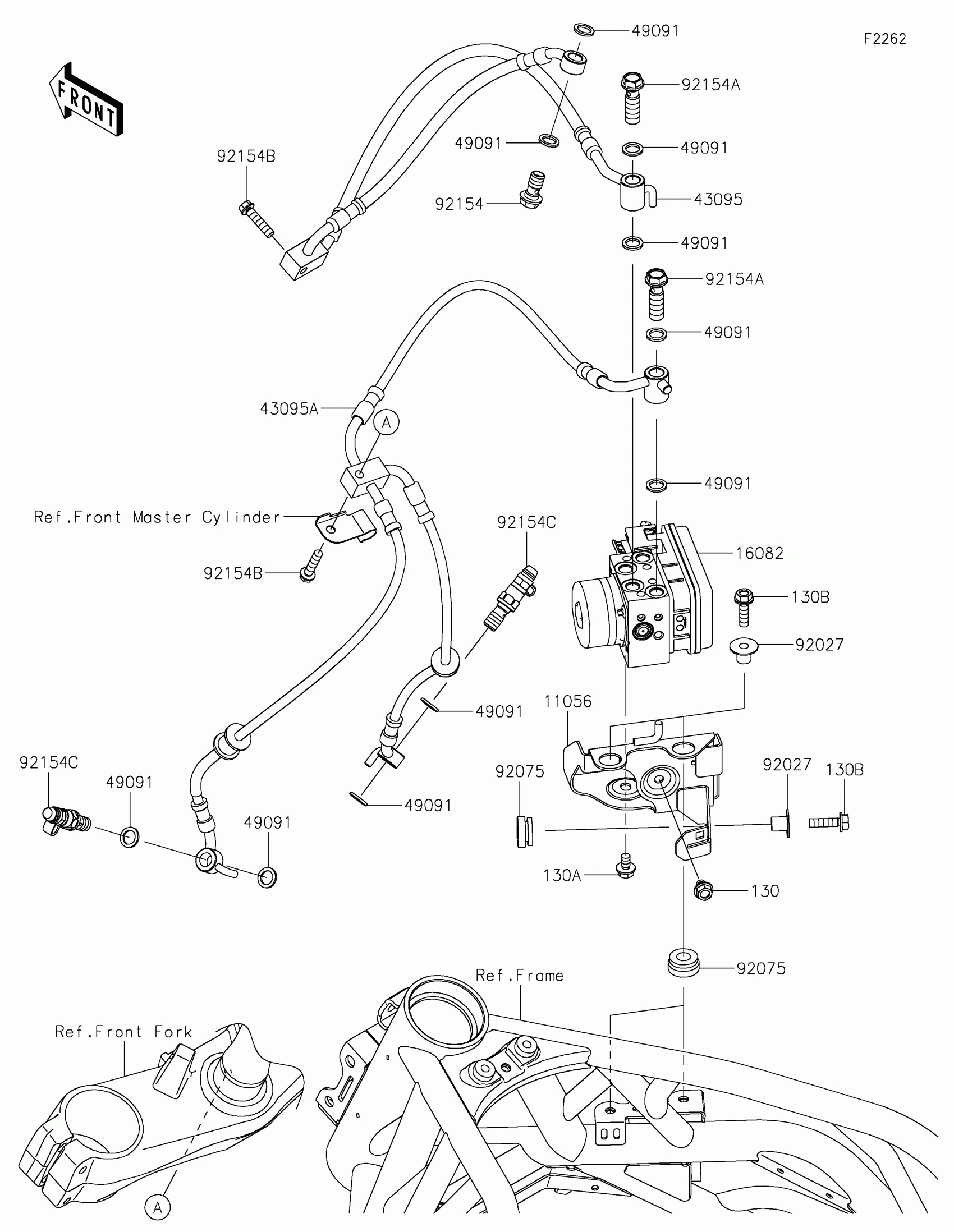

Find the part on the Brake Piping diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja H2® ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ABS UNIT

11056-7852

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,9.1MP

16082-0822

1
Out of stock

43095

HOSE-BRAKE,M/C-HU

43095-0854

1
Out of stock

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1631

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92027

COLLAR,L=12

92027-1062

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92154

BOLT,BANJO,10X19

92154-1554

1
Out of stock

92154A

BOLT,BANJO,10X32.3

92154-1555

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-1849

1
Out of stock

92154C

BOLT,BANJO,10X19

92154-4032

1
Out of stock

130

BOLT-FLANGED,6X8

130BB0608

1

$5.31

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130B

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock
