2025 Kawasaki Ninja H2® ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

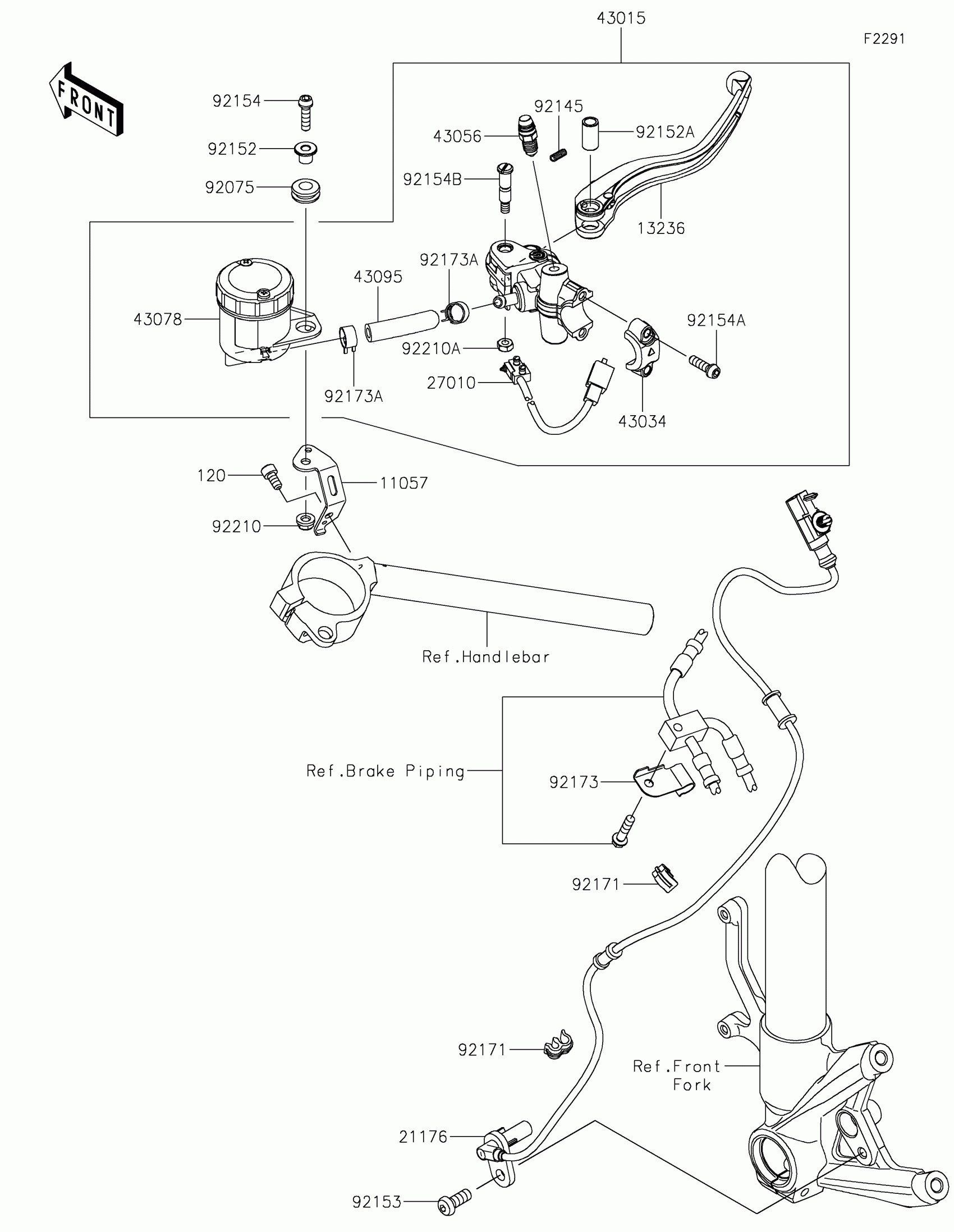

2025 Kawasaki Ninja H2® ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RESERVOIR TANK

11057-2844

1
Out of stock

13236

LEVER-COMP,BRAKE

13236-0770

1
Out of stock

21176

SENSOR,WHEEL SPEED,FR

21176-0792

1
Out of stock

27010

SWITCH,STOP

27010-0922

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0750

1
Out of stock

43034

HOLDER-BRAKE

43034-0121

1
Out of stock

43056

BREATHER-BRAKE

43056-0019

1
Out of stock

43078

RESERVOIR

43078-0577

1
Out of stock

43095

HOSE-BRAKE

43095-0908

1
Out of stock

92075

DAMPER

92075-1028

1
Out of stock

92145

SPRING

92145-1683

1
Out of stock

92152

COLLAR,6X16X10.6

92152-2110

1
Out of stock

92152A

COLLAR,LEVER

92152-2151

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-0912

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-1456

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-1644

1
Out of stock

92154B

BOLT,LEVER

92154-1809

1
Out of stock

92171

CLAMP

92171-0921

1
Out of stock

92173

CLAMP

92173-0086

1
Out of stock

92173A

CLAMP,HOSE

92173-1498

1
Out of stock

92210

NUT,6MM

92210-0991

1
Out of stock

92210A

NUT,U

92210-1424

1
Out of stock

120

BOLT-SOCKET,6X12

120CB0612

1
Out of stock
