2024 Kawasaki Ninja® e-1 ABS Rear Brake Diagram

← All diagrams

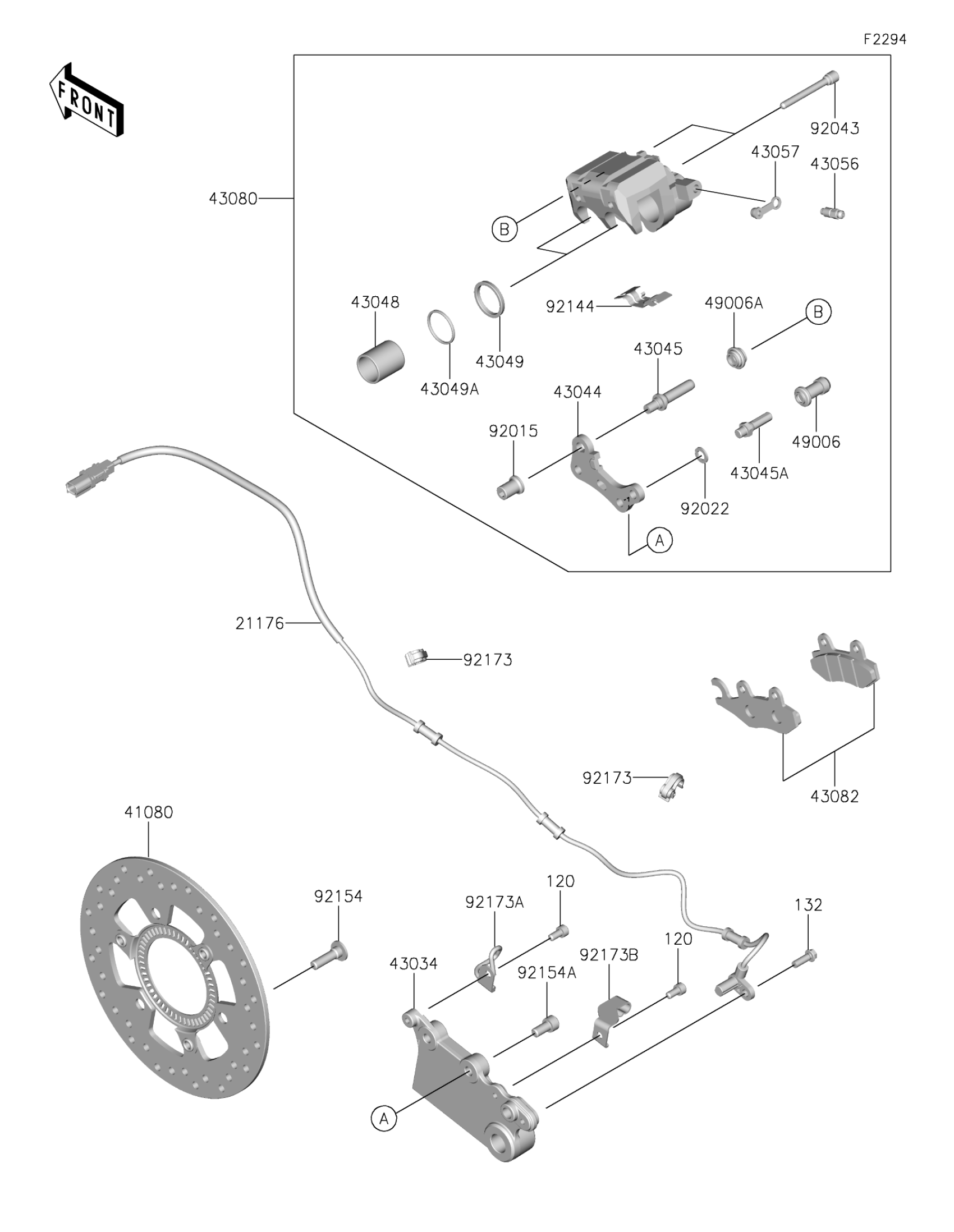

Find the part on the Rear Brake diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja® e-1 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,SPEED,RR

21176-1193

1

$142.67

In stock

41080

DISC,RR,W/R,BLACK

41080-0762-11H

1

$268.48

In stock

43034

HOLDER-BRAKE

43034-0171

1

$87.47

In stock

43044

HOLDER-COMP-CALIPER

43044-1112

1

$120.68

In stock

43045

SHAFT-CALIPER

43045-0013

1

$19.49

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-1068

1

$83.43

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0246-25S

1

$393.37

In stock

43082

PAD-ASSY-BRAKE

43082-0210

1

$47.97

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92015

NUT

92015-1740

1

$5.46

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92154

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92154A

BOLT-SOCKET,8X16

92154-7088

1

$2.46

In stock

92173

1

$1.27

In stock

92173A

CLAMP

92173-2481

1

$4.68

In stock

92173B

CLAMP

92173-2483

1

$3.12

In stock

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

132

1

$1.75

In stock
