2024 Kawasaki Ninja® e-1 ABS Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

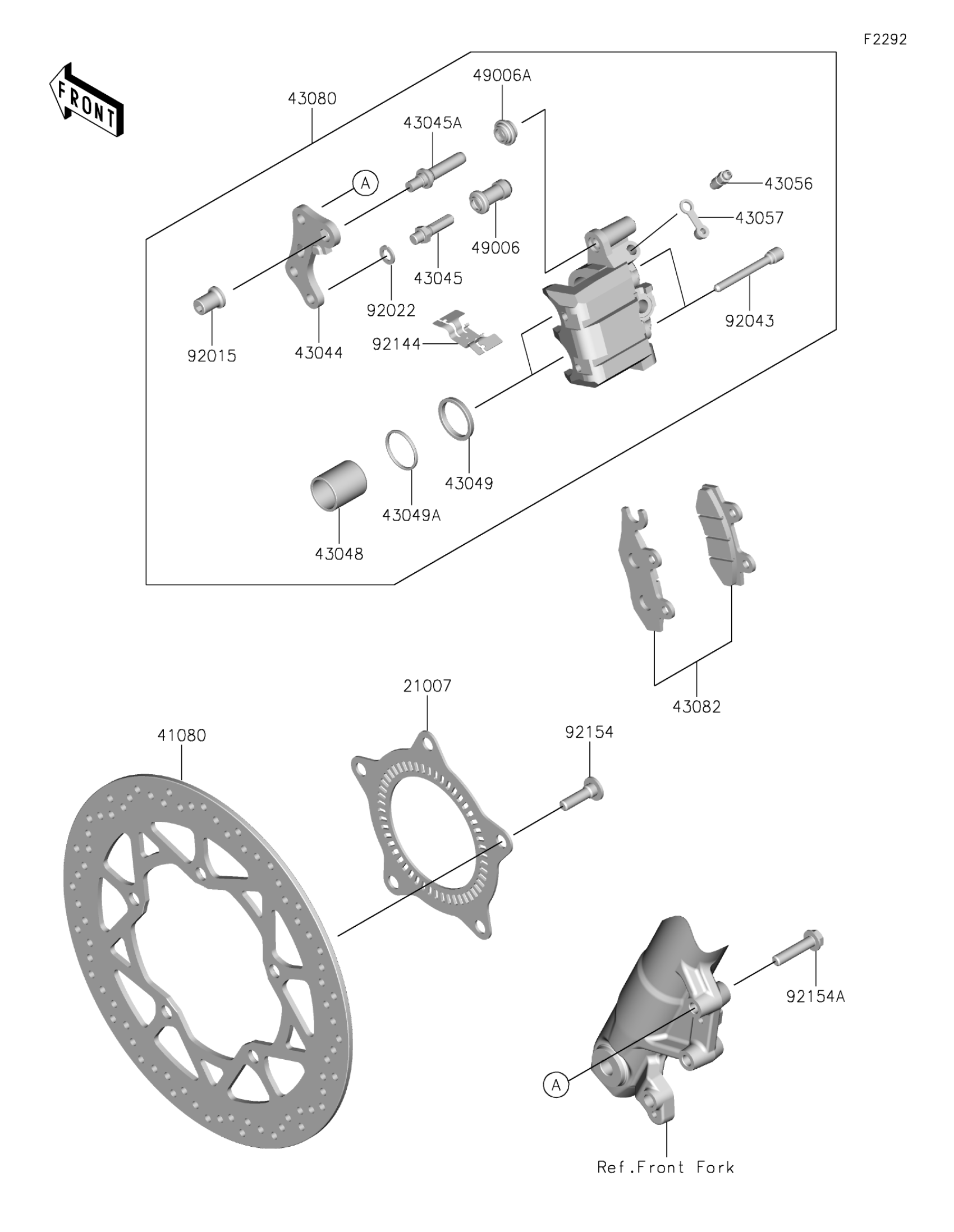

2024 Kawasaki Ninja® e-1 ABS Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,FR

21007-0737

1

$30.70

In stock

41080

DISC,FR,BLACK

41080-0761-11H

1

$367.53

In stock

43044

HOLDER-COMP-CALIPER

43044-1112

1

$120.68

In stock

43045

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43045A

SHAFT-CALIPER

43045-1052

1

$16.47

In stock

43048

PISTON-CALIPER

43048-1068

1

$83.43

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0154-25S

1

$393.37

In stock

43082

PAD-ASSY-BRAKE

43082-0128

1

$42.68

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92015

NUT

92015-1740

1

$5.46

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92154

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92154A

BOLT,FLANGED,8X36

92154-3723

1

$2.61

In stock
