2024 Kawasaki Ninja® e-1 ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

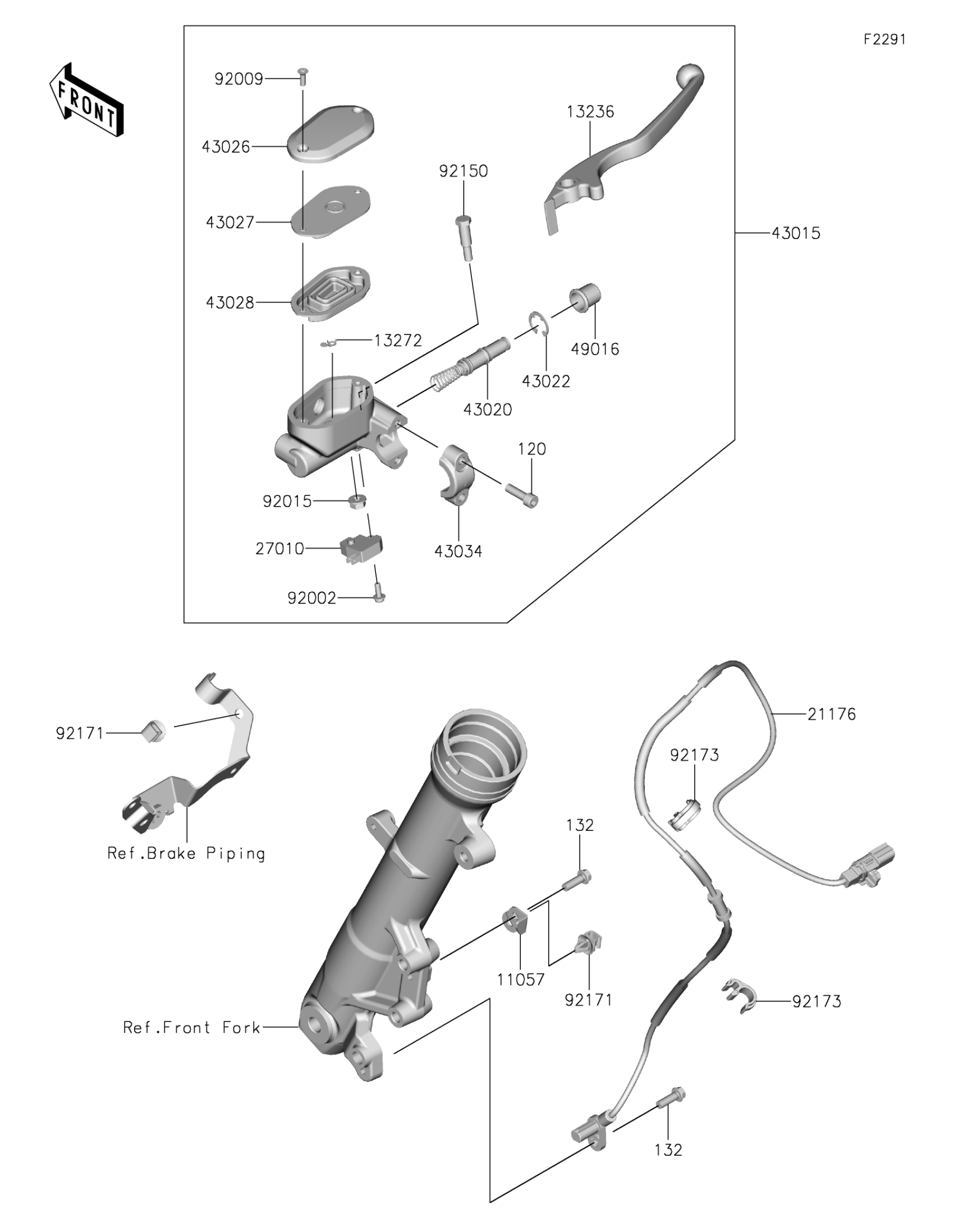

2024 Kawasaki Ninja® e-1 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SENSOR

11057-1099

1

$1.27

In stock

13236

LEVER-COMP

13236-0811

1

$23.12

In stock

13272

PLATE

13272-0573

1

$7.47

In stock

21176

SENSOR,SPEED,FR

21176-1141

1

$142.67

In stock

27010

SWITCH,BRAKE

27010-0762

1

$32.10

In stock

43015

1

$419.59

In stock

43020

PISTON-COMP-BRAKE

43020-0022

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0026

1

$47.30

In stock

43027

PLATE-DIAPHRAGM

43027-0010

1

$8.47

In stock

43028

DIAPHRAGM

43028-0022

1

$37.15

In stock

43034

1

$15.29

In stock

49016

1

$6.90

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1

$11.26

In stock

92171

CLAMP

92171-0640

1

$3.51

In stock

92173

1

$1.27

In stock

120

BOLT-SOCKET,6X20

120CB0620

1

$1.10

In stock

132

1

$1.75

In stock
