2024 Kawasaki Ninja® 7 Hybrid Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

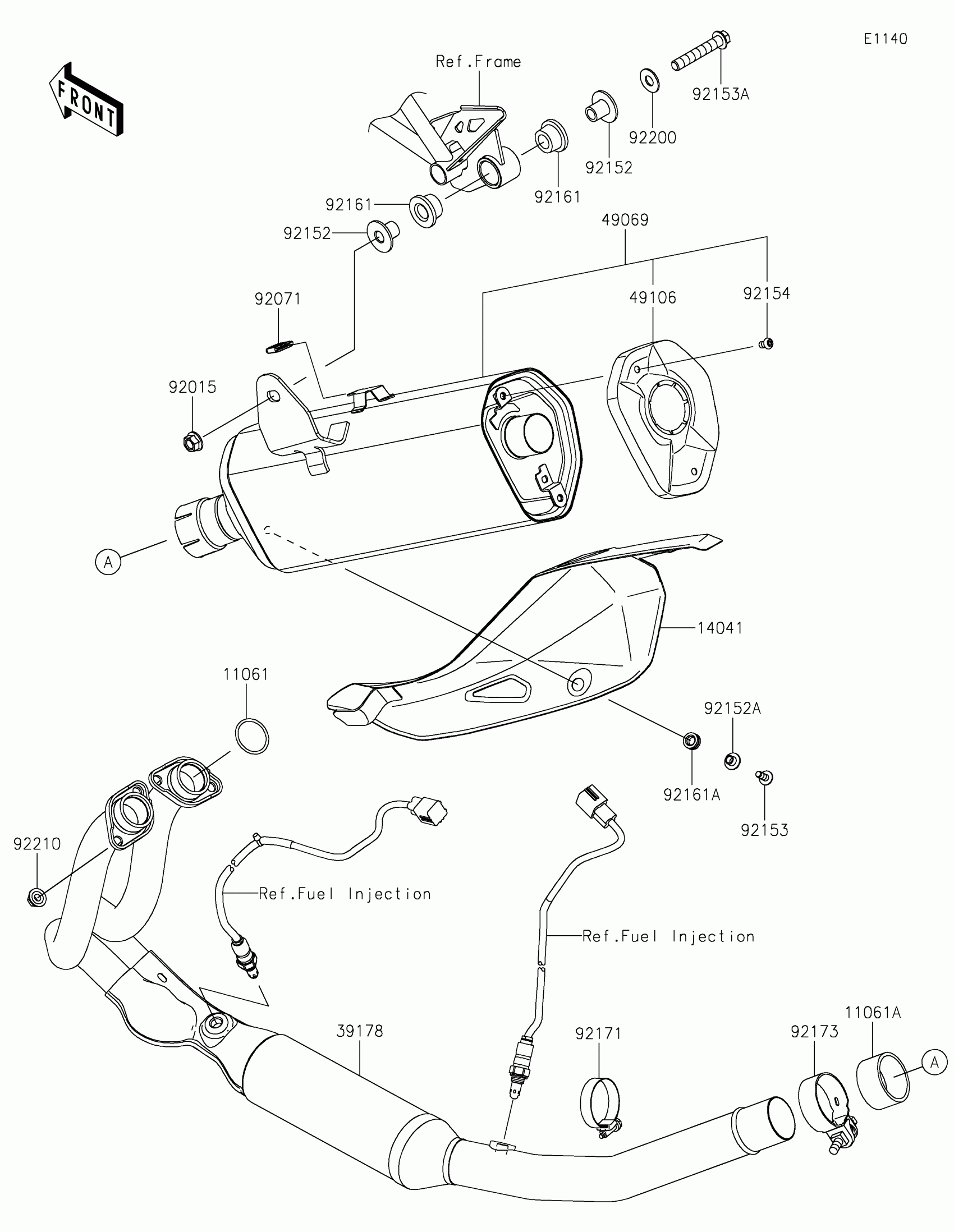

2024 Kawasaki Ninja® 7 Hybrid Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EXHAUST PIPE

11061-1249

1
Out of stock

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

1
Out of stock

14041

COVER-COMP,MUFFLER

14041-0634

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0437

1
Out of stock

49069

MUFFLER-ASSY

49069-0899

1
Out of stock

49106

COVER-MUFFLER

49106-0872

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1387

1
Out of stock

92071

GROMMET

92071-0786

1
Out of stock

92152

COLLAR

92152-2295

1
Out of stock

92152A

COLLAR,6.3X8.3X16

92152-2850

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-0817

1
Out of stock

92153A

BOLT,FLANGED,10X60

92153-1777

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-7250

1
Out of stock

92161

DAMPER

92161-1497

1

$2.68

In stock

92161A

DAMPER

92161-2152

1
Out of stock

92171

CLAMP

92171-0058

1

$9.42

In stock

92173

CLAMP

92173-1931

1
Out of stock

92200

WASHER,10.5X24X1.5

92200-0154

1
Out of stock

92210

NUT,8MM

92210-1114

1
Out of stock
