2024 Kawasaki Ninja® 7 Hybrid Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

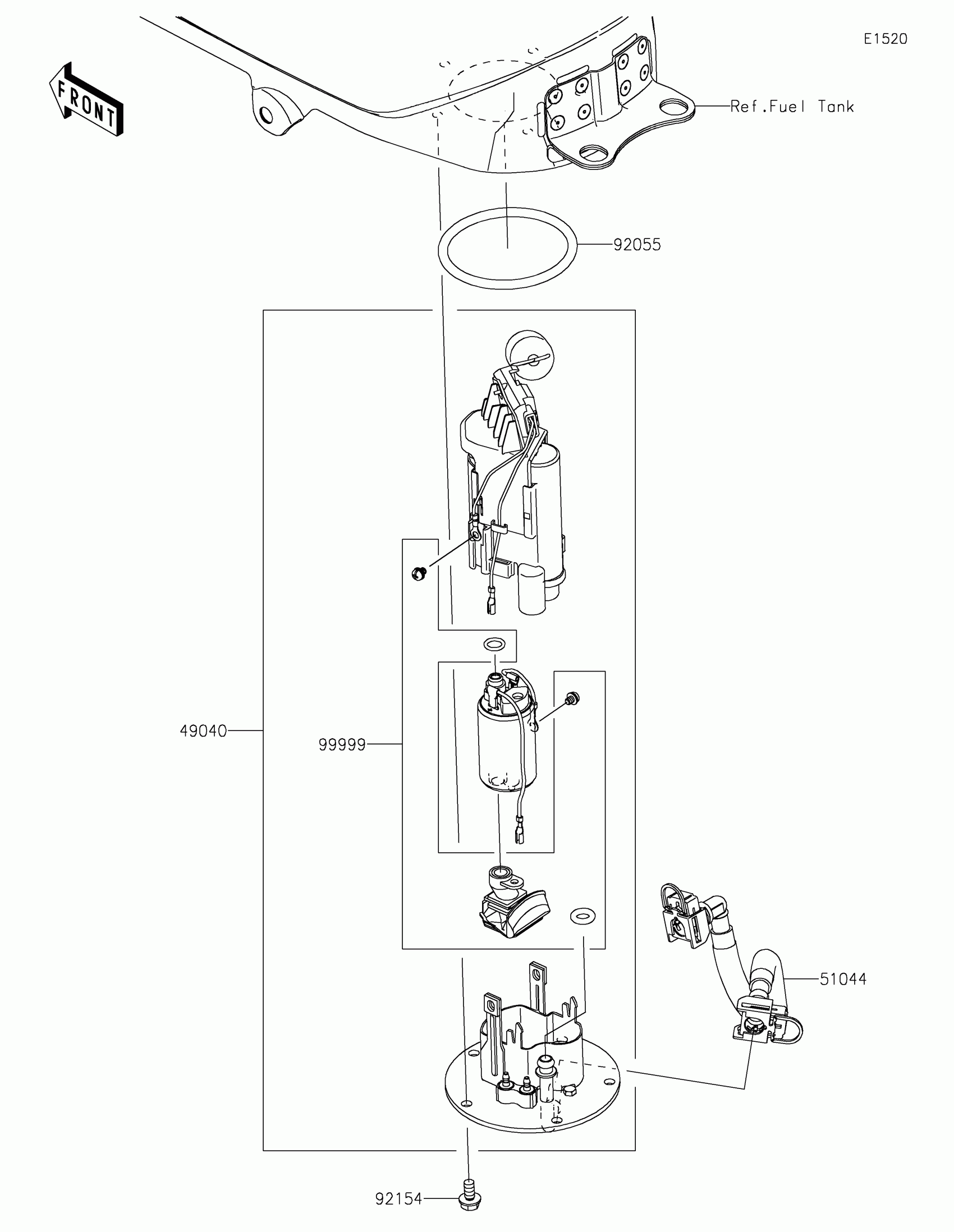

2024 Kawasaki Ninja® 7 Hybrid Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0763

1
Out of stock

51044

TUBE-ASSY,FUEL

51044-0996

1
Out of stock

92055

RING-O,74.6X5.7

92055-0728

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2335

1
Out of stock

99999

KIT,FUEL FILTER

99999-0525

1
Out of stock
