2024 Kawasaki Ninja® 7 Hybrid Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

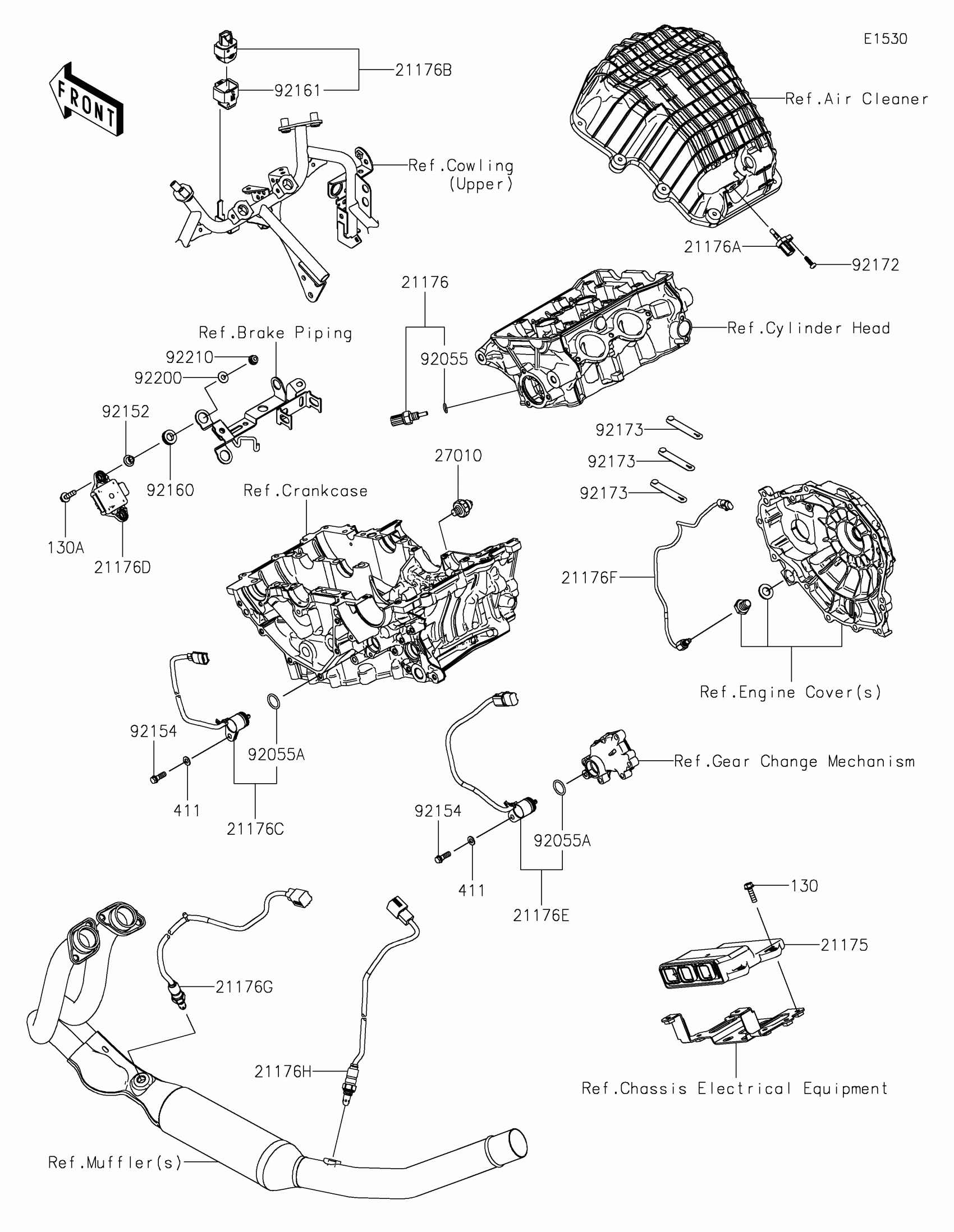

2024 Kawasaki Ninja® 7 Hybrid Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-1948

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176B

SENSOR,VEHICLE-DOWN

21176-0704

1
Out of stock

21176C

SENSOR,GEAR POSITION

21176-0852

1
Out of stock

21176D

SENSOR,GYRO

21176-1126

1
Out of stock

21176E

SENSOR,GEAR POSITION

21176-1164

1
Out of stock

21176F

SENSOR,OIL TEMP

21176-1173

1
Out of stock

21176G

SENSOR,OXYGEN,FR

21176-1174

1
Out of stock

21176H

SENSOR,OXYGEN,RR

21176-1175

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0917

1
Out of stock

92152

COLLAR

92152-3791

1
Out of stock

92154

BOLT

92154-3764

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER

92161-0951

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0790

1
Out of stock

92173

CLAMP

92173-2199

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-3712

1
Out of stock

92210

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
