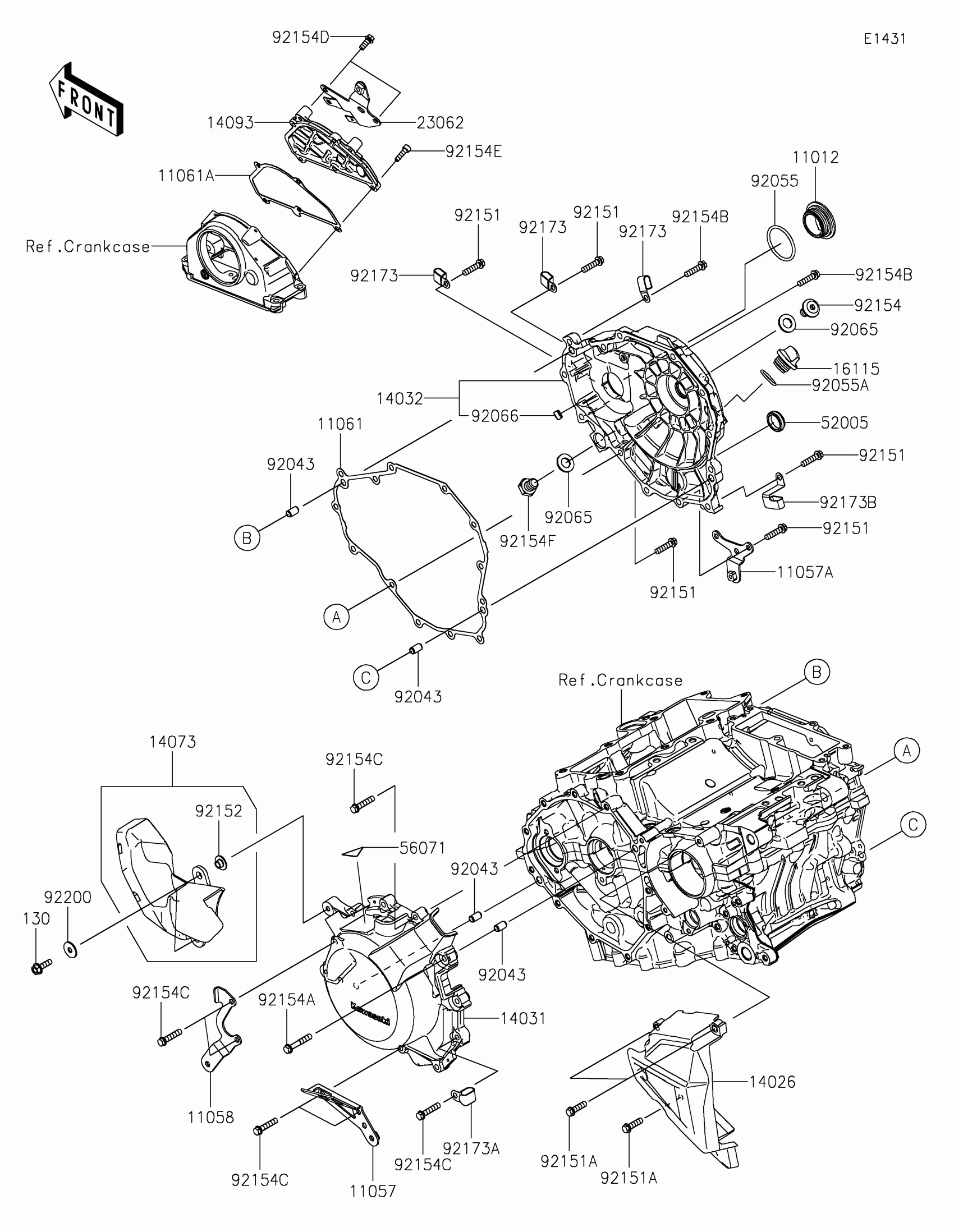

Kawasaki Ninja® 7 Hybrid Engine Cover(s) Diagram

#

Description
Price

11012

CAP

11012-1362

$6.70

11057

BRACKET

11057-7958

$8.24

11057A

BRACKET

11057-7959

$3.58

11058

BRACKET

11058-2131

$5.56

11061

GASKET,CLUTCH COVER

11061-1438

$41.56

11061A

GASKET,COVER

11061-1439

$11.07

14026

COVER-CHAIN

14026-0155

$57.08

14031

COVER-GENERATOR

14031-0657

$149.44

14032

COVER-CLUTCH

14032-0697

$243.39

14073

DUCT,COVER-GENERATOR

14073-1881

$60.53

14093

COVER,CASE-MOTOR

14093-1284

$57.48

16115

CAP-OIL FILLER

16115-1053

$9.28

23062

BRACKET-COMP

23062-1477

$13.24

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

56071

LABEL-WARNING,HIGH VOLTAGE

56071-1100

$2.47

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,39.4X3.1

92055-0734

$1.68

92055A

RING-O,19.8MM

92055-0844

Unavailable

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG

92066-0823

$1.98

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92151A

BOLT,6X22

92151-1936

Unavailable

92152

COLLAR

92152-3787

$5.93

92154

BOLT,SOCKET,10X16

92154-0126

$7.47

92154A

BOLT,FLANGED,6X35

92154-1779

$1.27

92154B

BOLT,FLANGED,6X25

92154-2734

$1.81

92154C

BOLT,FLANGED,6X28

92154-2788

$1.09

92154D

BOLT,FLANGED,6X14

92154-2838

$0.88

92154E

BOLT,SOCKET,5X18

92154-3981

$1.69

92154F

BOLT,SENSOR

92154-4479

$16.56

92173

CLAMP

92173-1828

$2.41

92173A

CLAMP

92173-2439

$5.27

92173B

CLAMP

92173-2668

$4.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X20

130BA0620

$1.28
