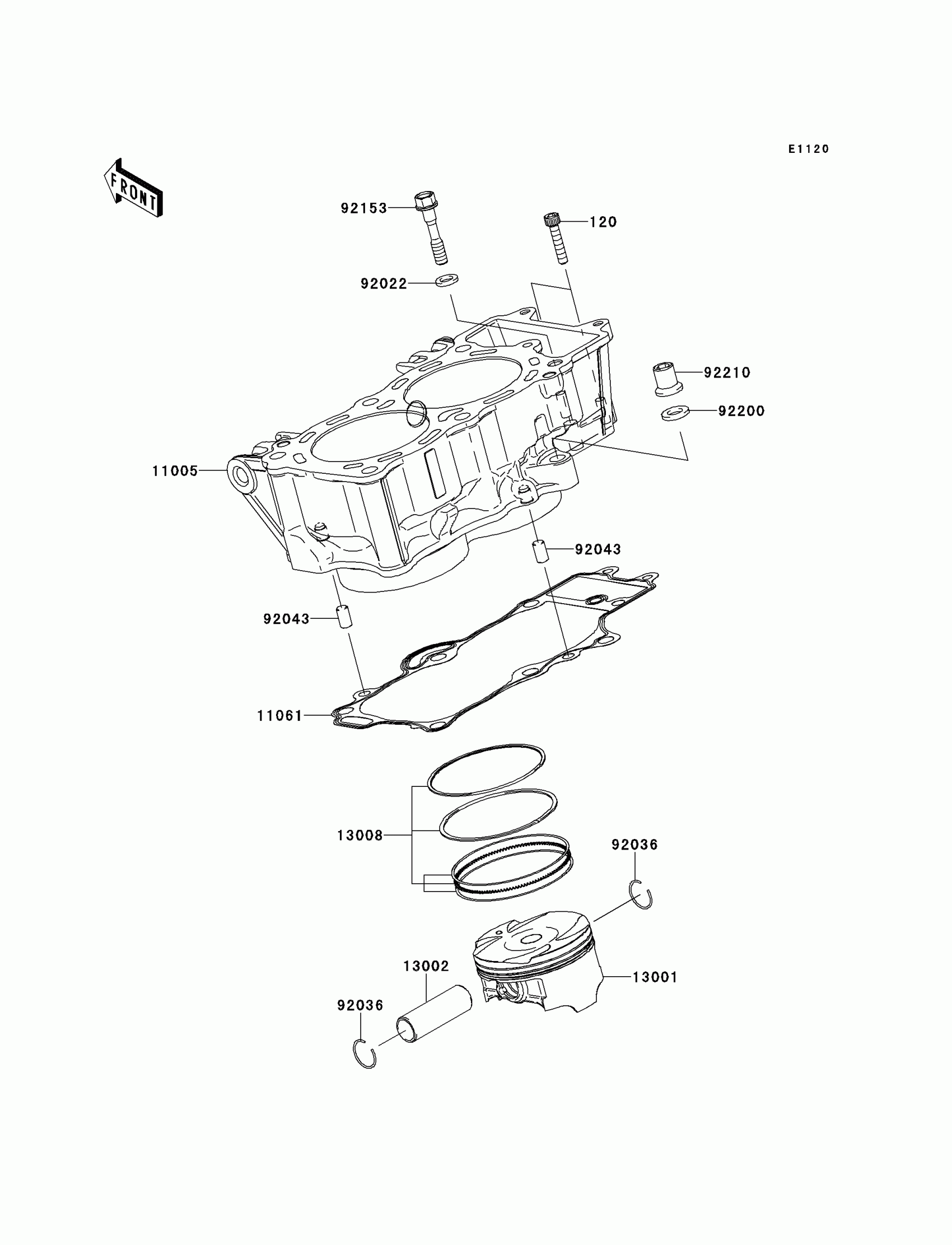

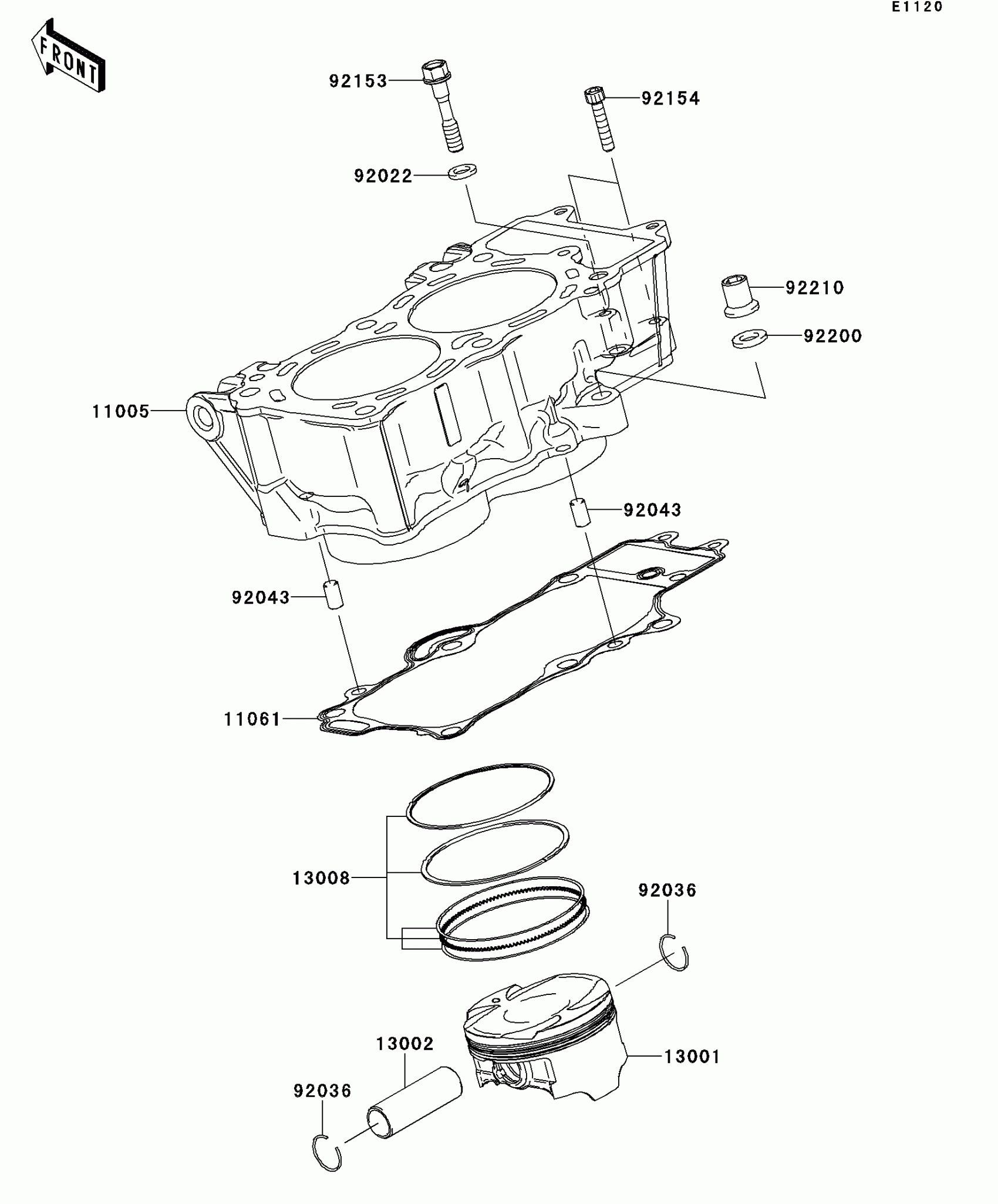

Kawasaki Ninja® 650R Cylinder/Piston(s) Diagram

Description

Price

120

BOLT-SOCKET,6X30

120Z0630

Unavailable

11005

CYLINDER-ENGINE

11005-0081

$1,446.28

11061

GASKET,CYLINDER BASE

11061-0171

$29.65

13001

PISTON-ENGINE

13001-0060

Unavailable

13002

PIN-PISTON

13002-0007

$18.29

13008

RING-SET-PISTON

13008-1196

$59.52

92022

WASHER,9X15.5X2

92022-1401

$1.24

92036

RING-SNAP,PISTON PIN

92036-008

$0.48

92043

PIN,8X14

92043-1567

$1.62

92153

BOLT,8X43

92153-1011

$8.46

92200

WASHER,10.5X19X2.3

92200-0363

$2.98

92210

NUT

92210-0223

$17.39
