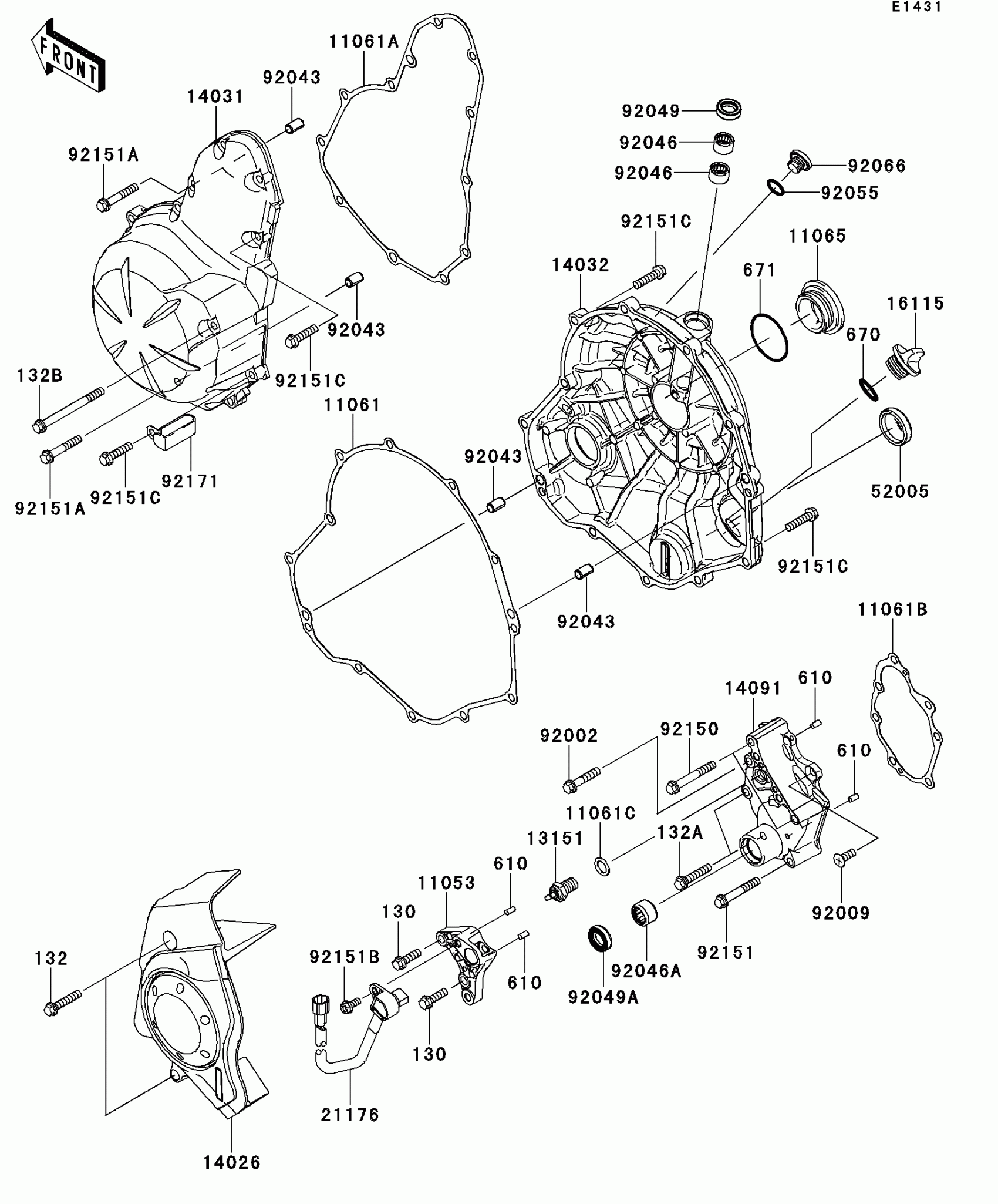

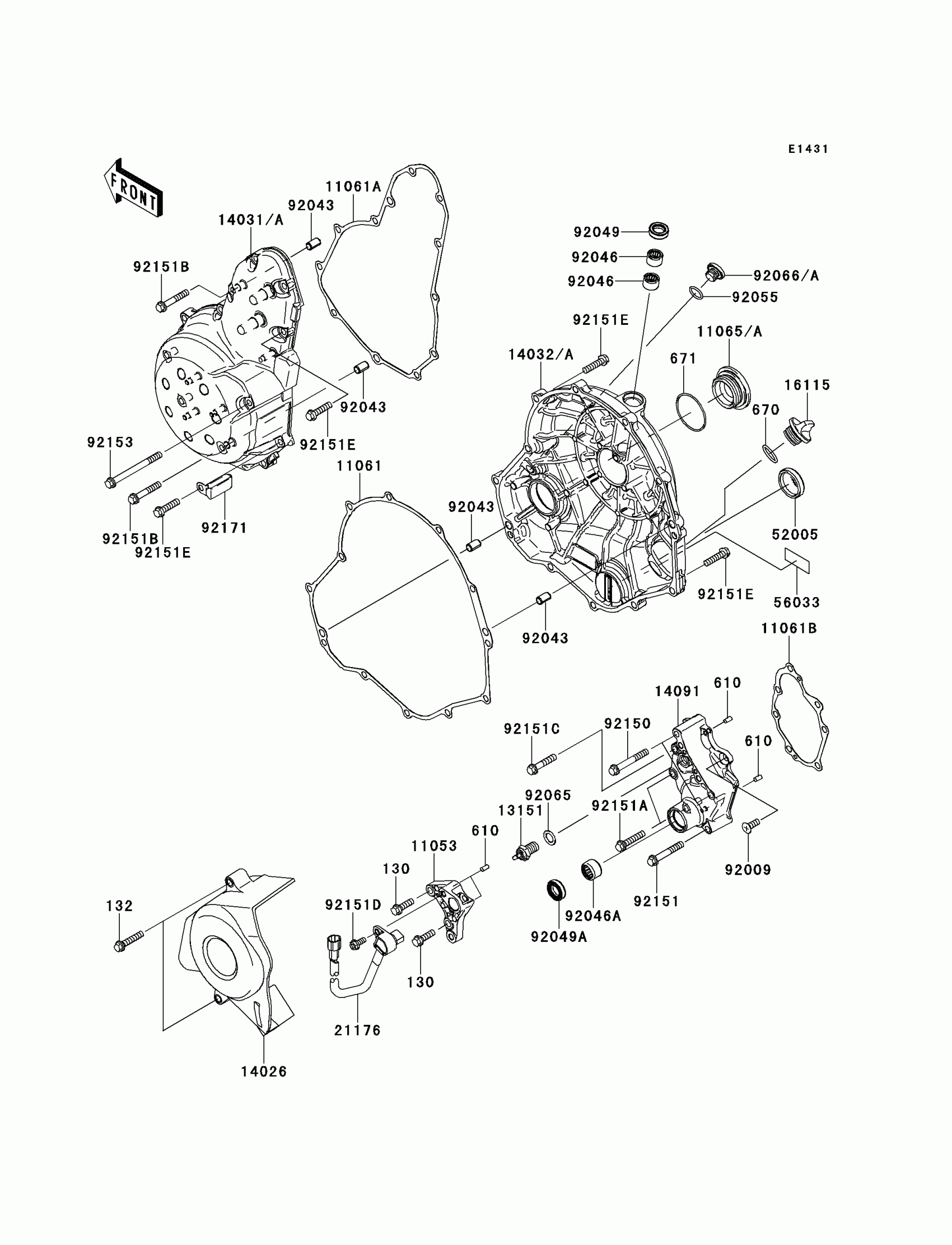

Kawasaki Ninja® 650R Engine Cover(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130G0620

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

610

ROLLER,4X8

610A0408

$3.29

670

O RING,20MM

670B2020

$0.97

671

O RING,40MM

671B2540

$4.67

11053

BRACKET

11053-1739

$29.08

11061

GASKET,CLUTCH COVER

11061-0164

$17.39

11061A

GASKET,GENERATOR COVER

11061-0165

$9.77

11061B

GASKET,TRANSMISSION COVER

11061-0166

$5.00

11065A

CAP

11065-0182

$20.17

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

14026

COVER-CHAIN

14026-0021

$65.60

14031A

COVER-GENERATOR

14031-0078

$135.95

14032A

COVER-CLUTCH

14032-0094

$217.62

14091

COVER,TRANSMISSION

14091-0445

$84.90

16115

CAP-OIL FILLER

16115-1053

$9.28

21176

SENSOR,SPEED

21176-0065

$134.28

52005

GAUGE,OIL LEVEL

52005-1057

$20.45

56033

LABEL-MANUAL,OIL CAPACITY

56033-0131

$7.61

92009

SCREW,6X16

92009-1360

$3.29

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92049A

SEAL-OIL,TC13225.5

92049-1519

$10.29

92055

RING-O,13.0X1.9

92055-1011

$5.81

92065

GASKET,10.5X16X1

92065-058

$3.03

92066A

PLUG,TIMING HOLE

92066-0088

$12.59

92150

BOLT,6X45

92150-1884

Unavailable

92151

BOLT,6X40

92151-1131

$3.71

92151A

BOLT,6X30

92151-1134

$1.57

92151B

BOLT,6X35

92151-1135

$3.19

92151C

BOLT,6X30

92151-1201

Unavailable

92151D

BOLT,FLANGED,5X12

92151-1305

$1.20

92151E

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,FLANGED,6X70

92153-0018

$3.51

92171

CLAMP

92171-0911

$7.56
