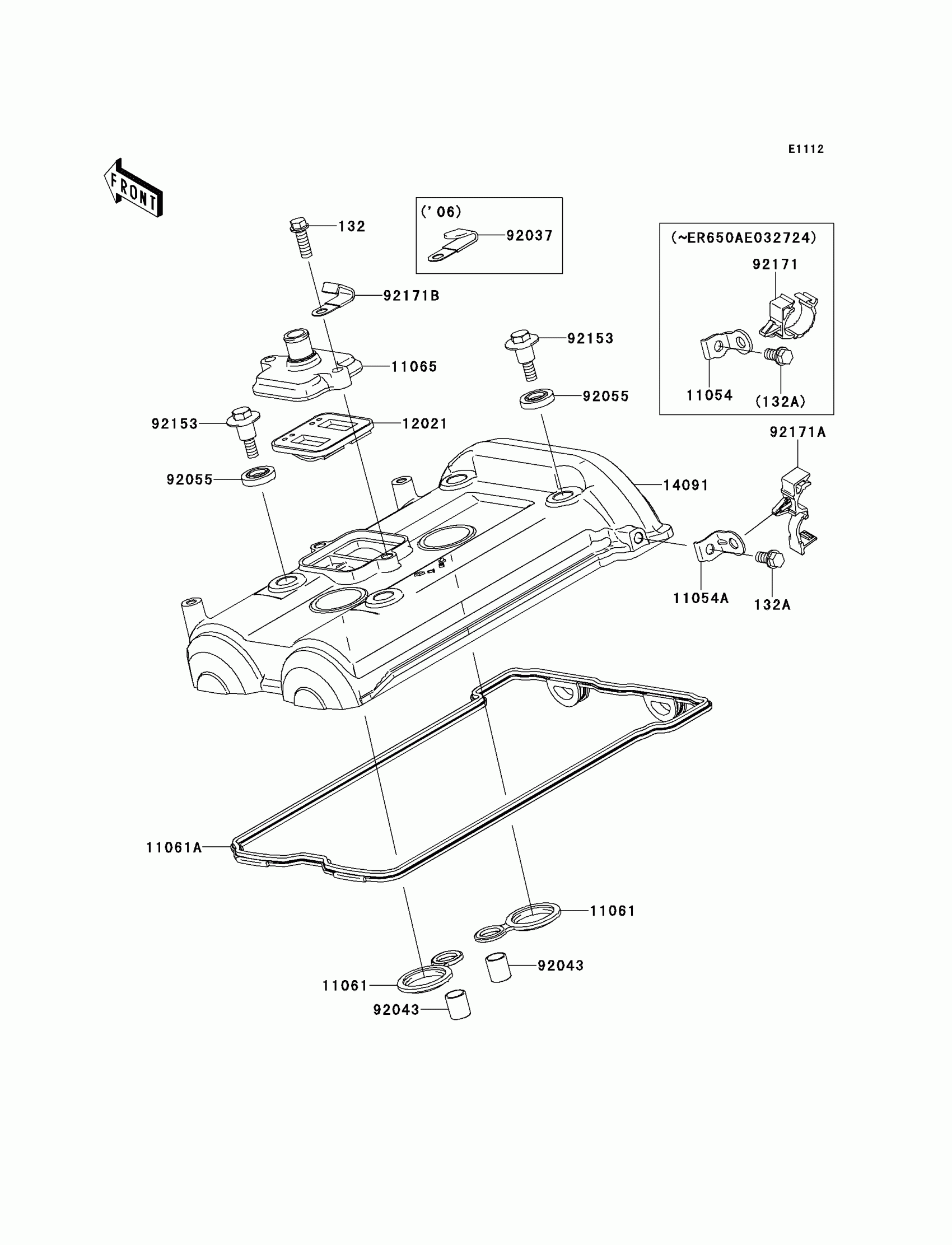

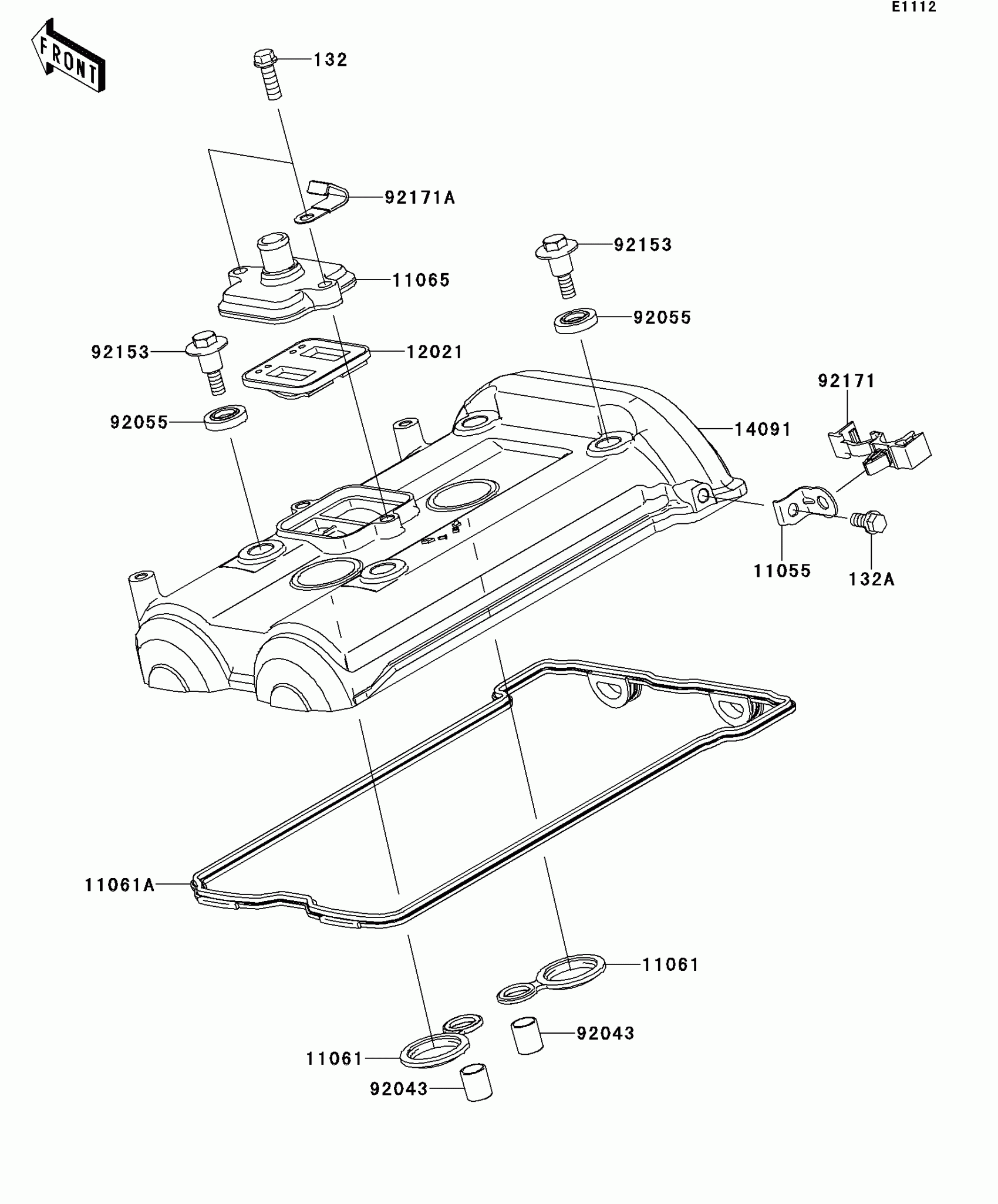

Kawasaki Ninja® 650R Cylinder Head Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X18

132G0618

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

11054A

BRACKET

11054-0869

$9.15

11061

GASKET,SPARK PLUG HOLE

11061-0105

$8.59

11061A

GASKET,HEAD COVER

11061-0170

$29.65

11065

CAP

11065-0111

$40.96

12021

VALVE-ASSY-REED

12021-1130

$80.81

14091

COVER,HEAD

14091-0550

$152.26

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,HEAD COVER BOLT

92055-1352

$7.62

92153

BOLT,HEAD COVER

92153-0793

$3.51

92171A

CLAMP,BRAKE HOSE

92171-0789

$4.75

92171B

CLAMP

92171-0813

$8.46
