2007 Kawasaki Ninja® 650R Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2007 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

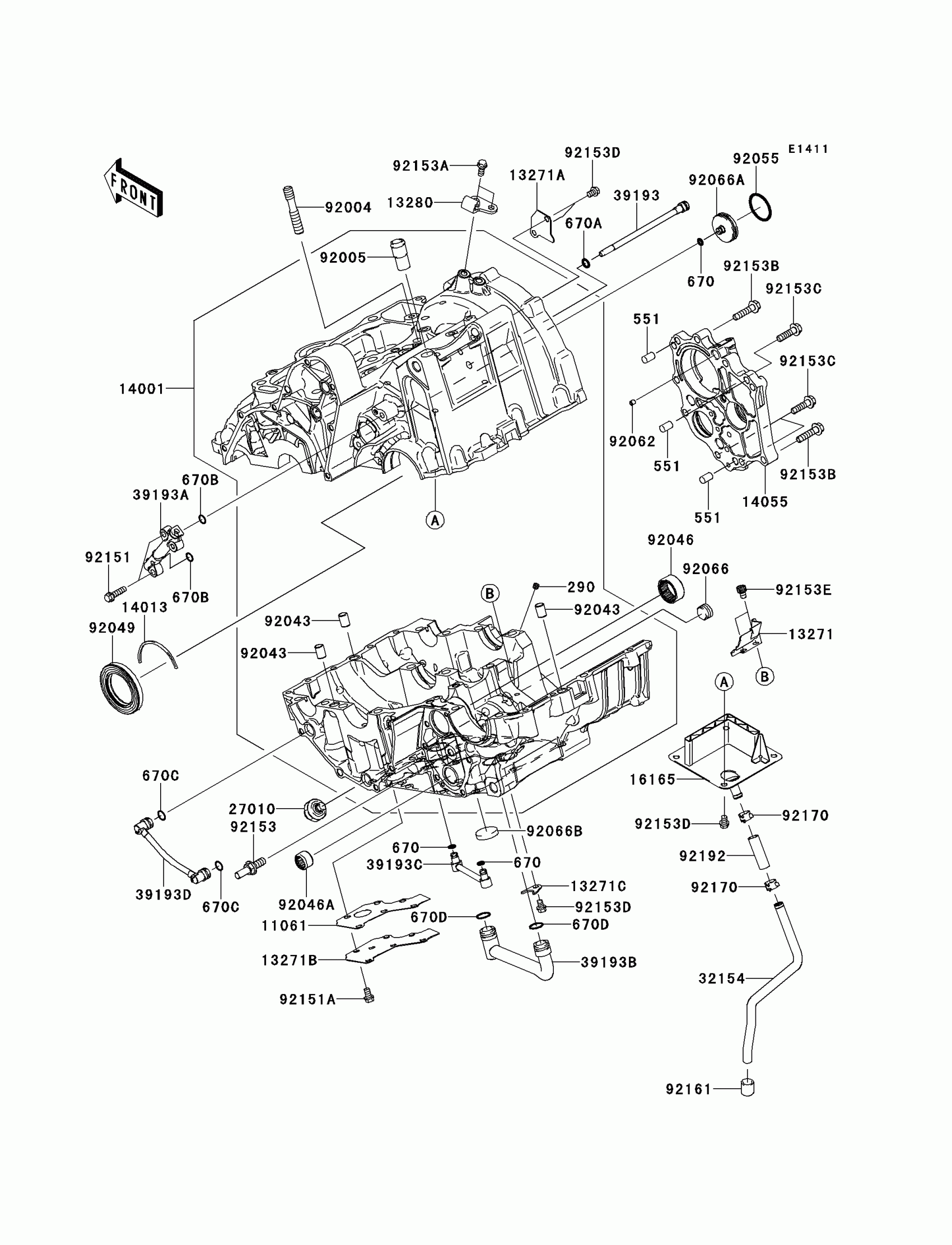

2007 Kawasaki Ninja® 650R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0182

1

$6.17

In stock

13271

PLATE,OIL SHIELDING

13271-0575

1
Out of stock

13271A

PLATE

13271-0577

1
Out of stock

13271B

PLATE

13271-0584

1
Out of stock

13271C

PLATE,OIL PIPE

13271-1187

1
Out of stock

13280

HOLDER,CLUTCH CABLE

13280-0171

1

$9.31

In stock

14001

SET-CRANKCASE

14001-0075

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14055

CASE-GEAR

14055-0018

1

$123.07

In stock

16165

SEPARATOR,BREATHER

16165-0001

1

$62.56

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

32154

PIPE,BREATHER

32154-0661

1

$13.69

In stock

39193

PIPE-OIL

39193-0029

1

$31.36

In stock

39193A

PIPE-OIL

39193-0030

1

$68.39

In stock

39193B

PIPE-OIL

39193-0031

1

$50.60

In stock

39193C

PIPE-OIL

39193-0032

1

$25.85

In stock

39193D

PIPE-OIL

39193-0033

1

$50.60

In stock

92004

STUD,10X34.5

92004-0024

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92046

1

$13.32

In stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,HTC40628

92049-1501

1
Out of stock

92055

RING-O,29.7X2.4

92055-0006

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92066A

PLUG,INPUT SHAFT

92066-0056

1
Out of stock

92066B

PLUG,25X5

92066-0061

1

$4.92

In stock

92151

1

$4.92

In stock

92151A

1

$1.95

In stock

92153

BOLT,8X20

92153-0530

1
Out of stock

92153A

BOLT,6X14

92153-0542

1
Out of stock

92153B

BOLT,FLANGED,6X30

92153-0962

1
Out of stock

92153C

BOLT,FLANGED,7X26

92153-0963

1
Out of stock

92153D

BOLT,FLANGED-SMALL,6X8

92153-0964

1
Out of stock

92153E

BOLT,SOCKET,6X8

92153-1414

1
Out of stock

92161

DAMPER

92161-0267

1

$3.11

In stock

92170

CLAMP

92170-1167

1

$5.42

In stock

92192

TUBE,9X12X38

92192-0225

1
Out of stock

290

1

$5.54

In stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

670

O RING

670D1505

1

$3.43

In stock

670A

O RING,8MM

670D1508

1

$3.43

In stock

670B

O RING,9MM

670D1509

1

$3.72

In stock

670C

O RING,10MM

670D1510

1

$3.72

In stock

670D

O RING,14MM

670D2014

1

$4.37

In stock
