2024 Kawasaki Ninja 650 KRT Edition Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

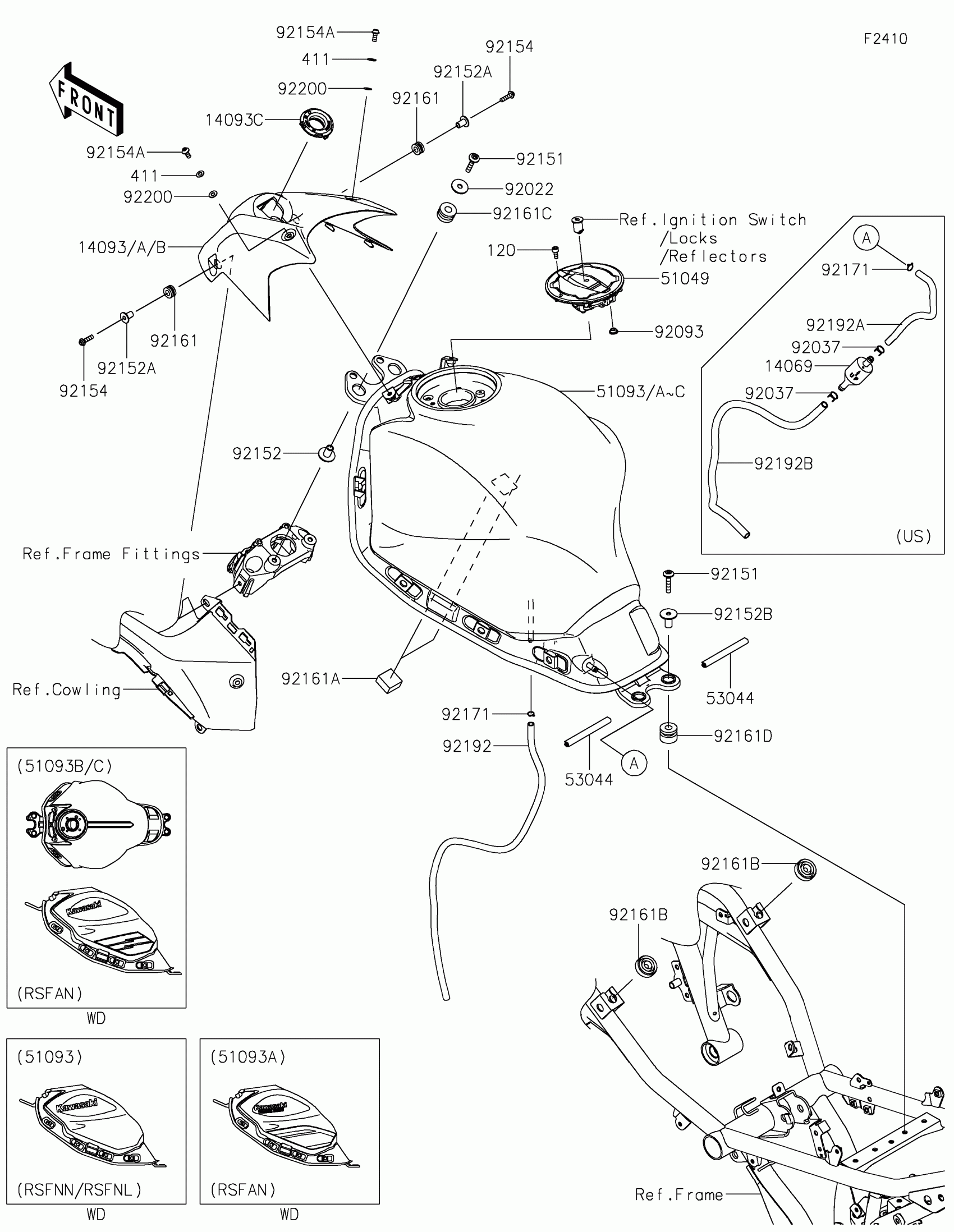

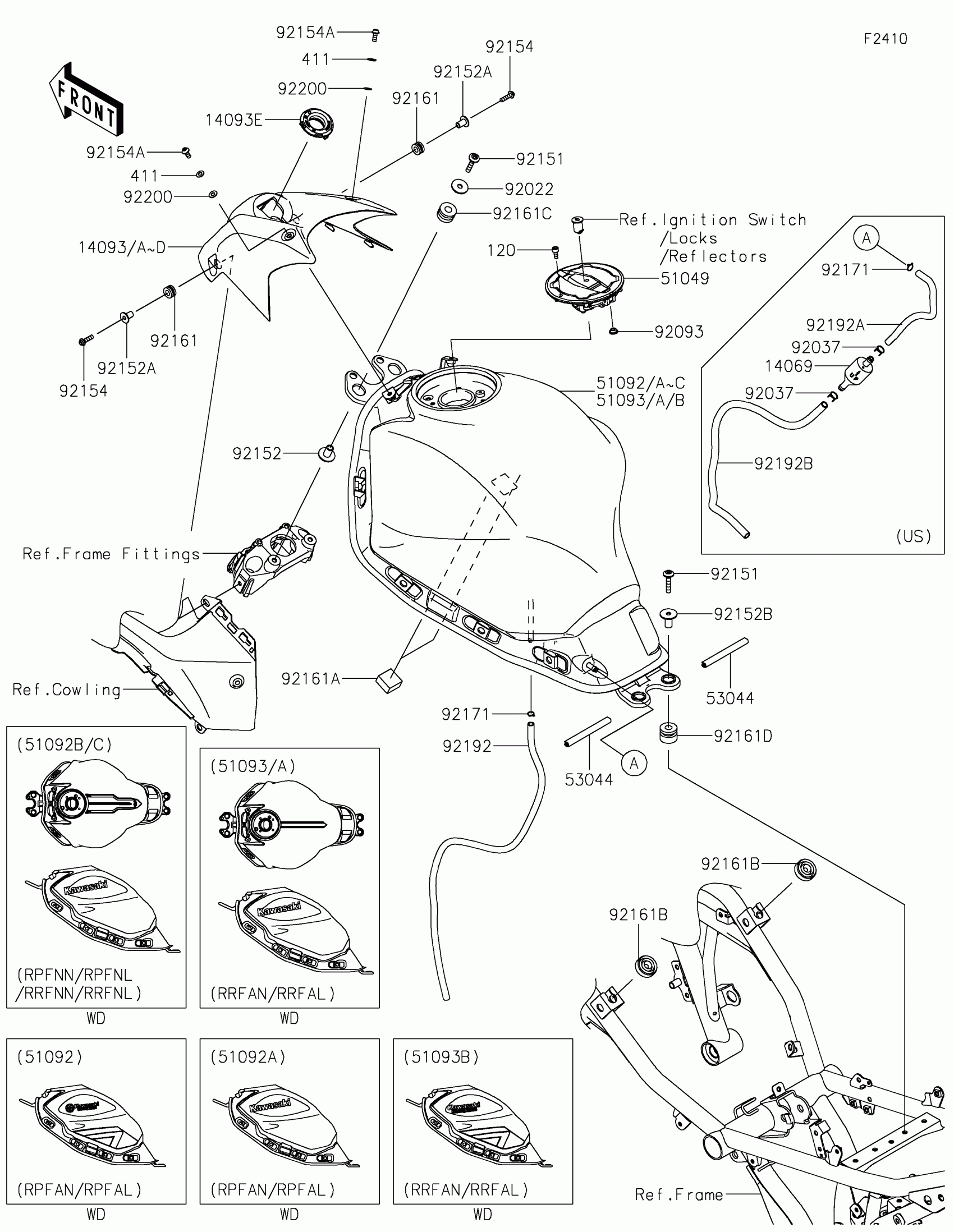

2024 Kawasaki Ninja 650 KRT Edition Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093A

COVER,TANK,P.S.KHAKI

14093-0483-63F

1
Out of stock

14093B

COVER,TANK,M.F.S.BLACK

14093-0483-739

1
Out of stock

14093C

COVER,TANK,L.GREEN

14093-0483-777

1
Out of stock

14093D

COVER,TANK,EBONY

14093-0483-H8

1
Out of stock

14093E

COVER,IGNITION SW.

14093-0952

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51092C

TANK-COMP-FUEL,M.M.G.GRAY

51092-5371-68P

1
Out of stock

51093

TANK-COMP-FUEL,M.M.C.GREEN

51093-5182-36T

1
Out of stock

51093A

TANK-COMP-FUEL,M.M.D.GRAY

51093-5185-69P

1
Out of stock

51093B

TANK-COMP-FUEL,L.GREEN

51093-5287-777

1
Out of stock

53044

TRIM,L=85

53044-0556

1
Out of stock

92022

WASHER,7X24X1.6

92022-228

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.5X10X17.6

92152-1655

1
Out of stock

92152A

COLLAR,5.6X16X14.2

92152-2229

1
Out of stock

92152B

COLLAR,6.5X10X21.1

92152-2325

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0210

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER,T=13

92161-0792

1
Out of stock

92161B

DAMPER,14X30X10

92161-1368

1
Out of stock

92161C

DAMPER,10X24X15

92161-1482

1
Out of stock

92161D

DAMPER,10X24X19

92161-1929

1
Out of stock

92192

TUBE,6X9X620

92192-1085

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

411

WASHER-PLAIN,5MM

411AA0500

1
Out of stock
