2024 Kawasaki Ninja 650 KRT Edition Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

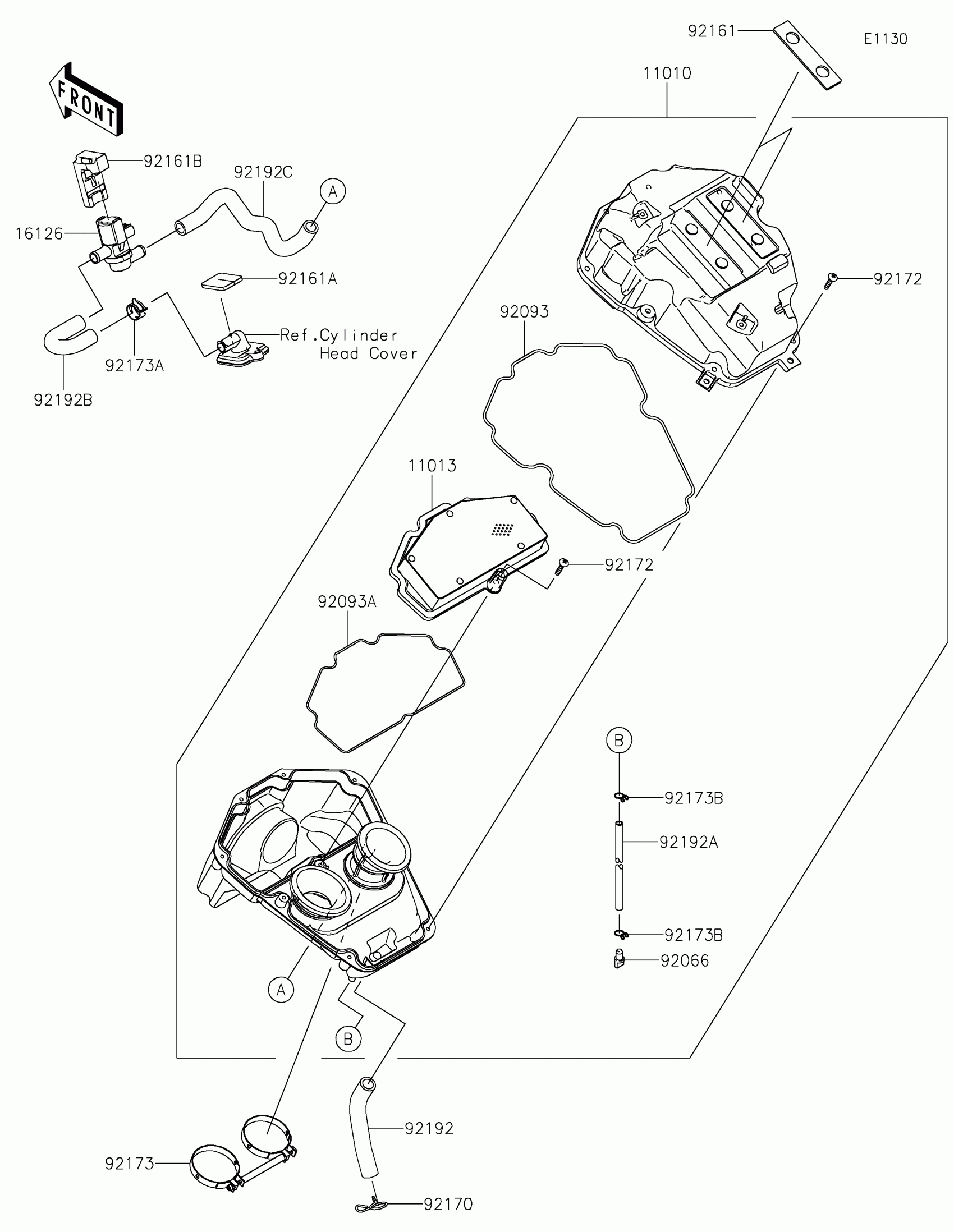

2024 Kawasaki Ninja 650 KRT Edition Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0950

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0745

1
Out of stock

16126

VALVE,AIR SWITCHING

16126-0743

1
Out of stock

92066

PLUG,DRAIN

92066-0782

1
Out of stock

92093

SEAL

92093-0610

1
Out of stock

92093A

SEAL,ELEMENT

92093-0611

1
Out of stock

92161

DAMPER

92161-1428

1
Out of stock

92161A

DAMPER

92161-1899

1
Out of stock

92161B

DAMPER

92161-1933

1
Out of stock

92170

CLAMP

92170-1017

1
Out of stock

92172

SCREW,5X25

92172-0891

1
Out of stock

92173

CLAMP

92173-1698

1
Out of stock

92173A

CLAMP

92173-2344

1
Out of stock

92173B

CLAMP,10MM

92173-2400

1
Out of stock

92192

TUBE,BREATHER

92192-0958

1
Out of stock

92192A

TUBE,DRAIN,L=245

92192-1380

1
Out of stock

92192B

TUBE,ASV-HEAD

92192-1698

1
Out of stock

92192C

TUBE,A/C-ASV

92192-1699

1
Out of stock
