2024 Kawasaki Ninja 650 KRT Edition Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

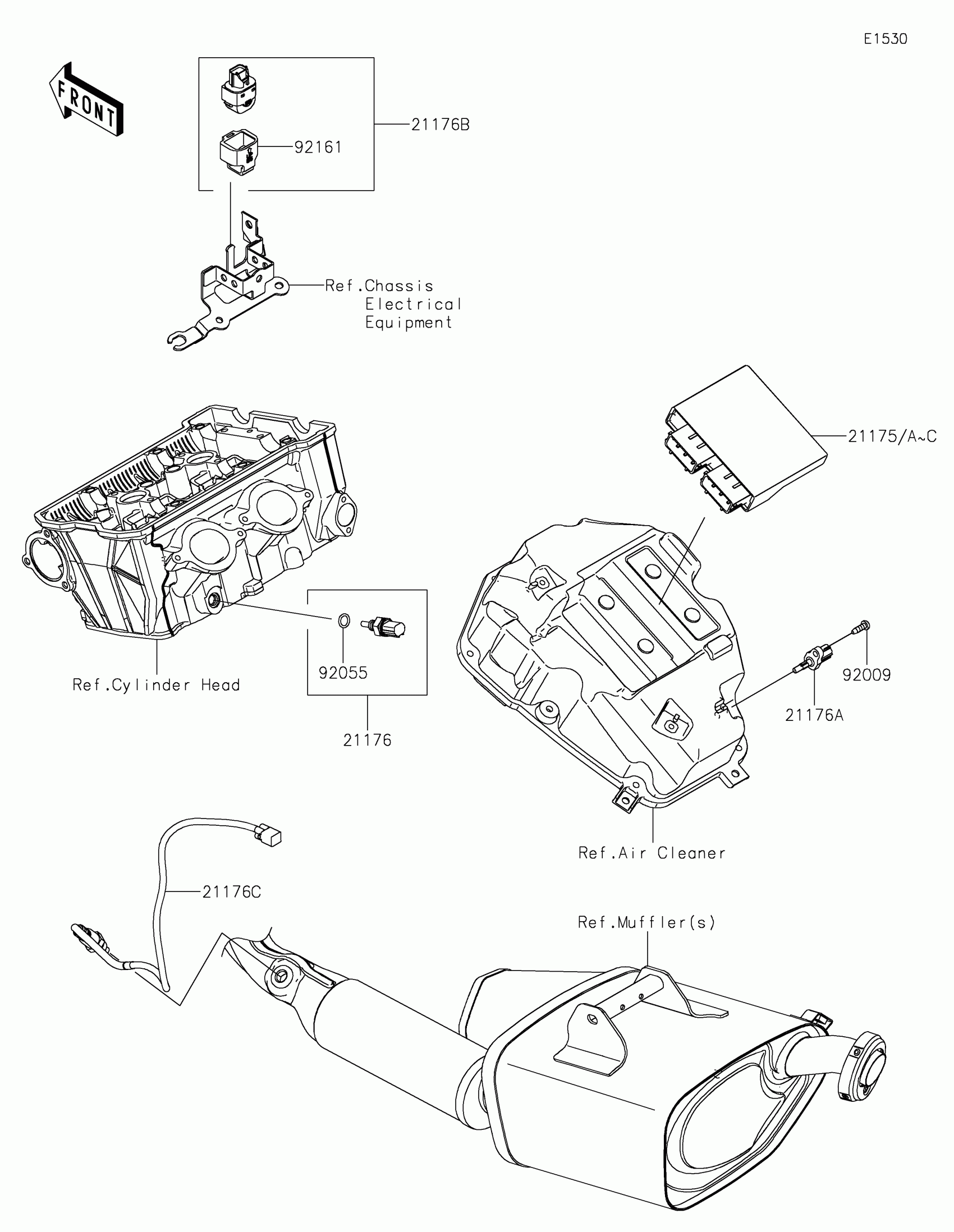

2024 Kawasaki Ninja 650 KRT Edition Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

1

$24.07

In stock

21176B

SENSOR,VEHICLE-DOWN

21176-0704

1

$84.36

In stock

21176C

SENSOR,OXYGEN

21176-0967

1

$205.05

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER

92161-0951

1

$14.14

In stock
