2025 Kawasaki Ninja® 650 ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

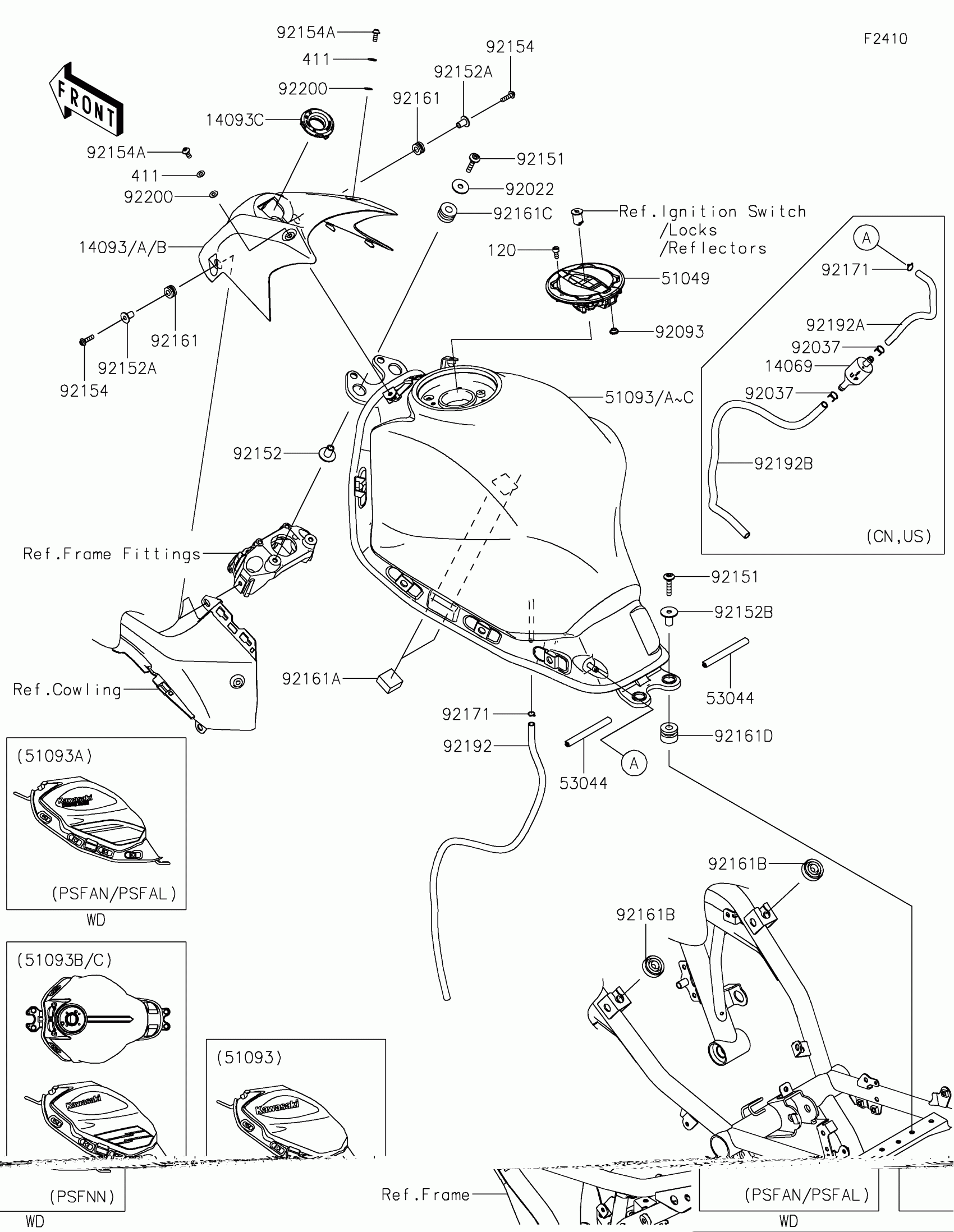

2025 Kawasaki Ninja® 650 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,TANK,M.S.BLACK

14093-0483-660

1
Out of stock

14093B

COVER,TANK,L.GREEN

14093-0483-777

1
Out of stock

14093C

COVER,IGNITION SW.

14093-0952

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093A

TANK-COMP-FUEL,L.GREEN

51093-5450-777

1
Out of stock

51093B

TANK-COMP-FUEL,M.M.D.GREEN

51093-5457-63Y

1
Out of stock

51093C

TANK-COMP-FUEL,C.S.F.ORANGE

51093-5464-62J

1
Out of stock

53044

TRIM,L=85

53044-0556

1

$9.96

In stock

92022

WASHER,7X24X1.6

92022-228

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.5X10X17.6

92152-1655

1
Out of stock

92152A

COLLAR,5.6X16X14.2

92152-2229

1
Out of stock

92152B

COLLAR,6.5X10X21.1

92152-2325

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0210

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER,T=13

92161-0792

1
Out of stock

92161B

DAMPER,14X30X10

92161-1368

1
Out of stock

92161C

DAMPER,10X24X15

92161-1482

1

$3.27

In stock

92161D

DAMPER,10X24X19

92161-1929

1

$1.81

In stock

92192

TUBE,6X9X620

92192-1085

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

411

WASHER-PLAIN,5MM

411AA0500

1
Out of stock
