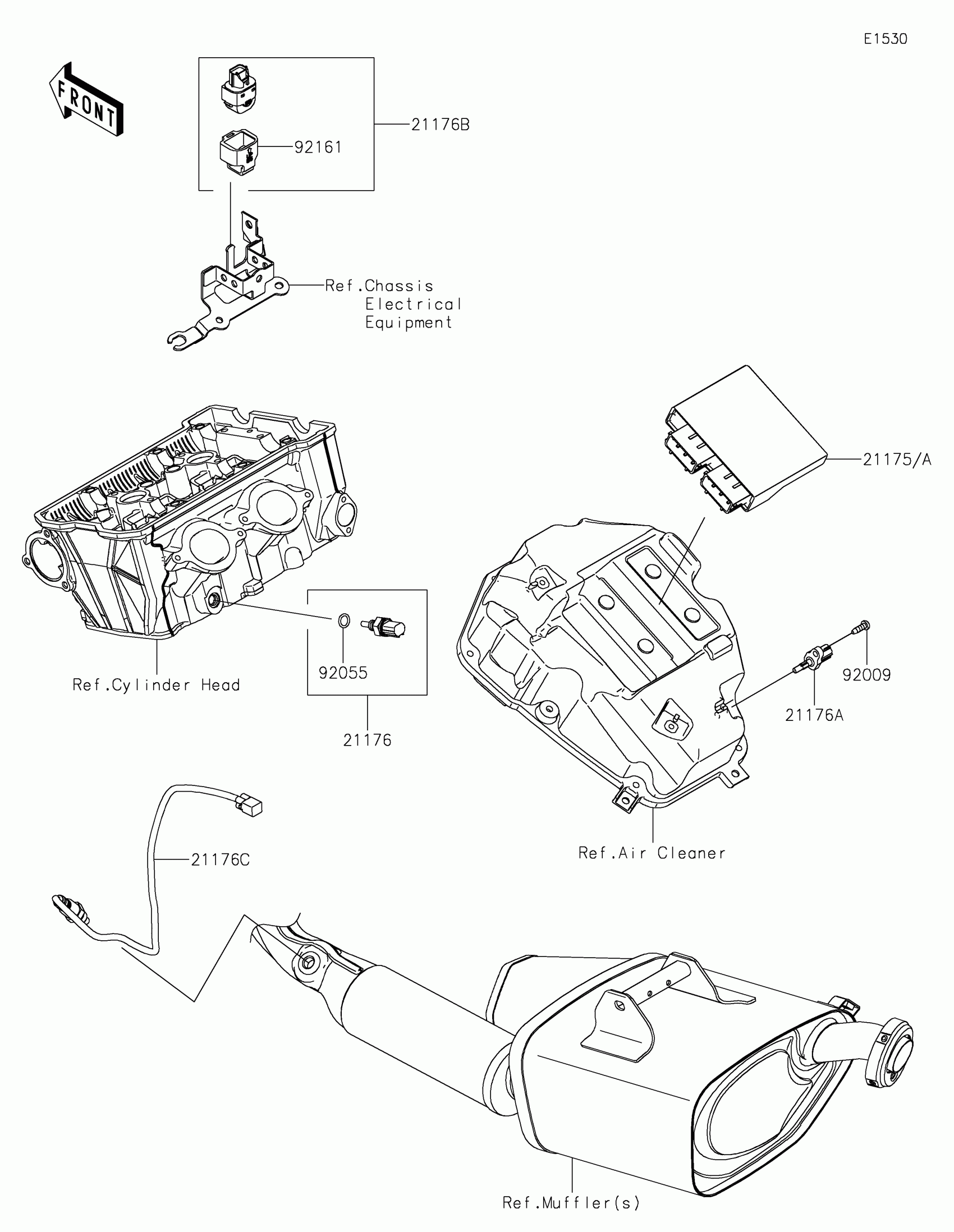

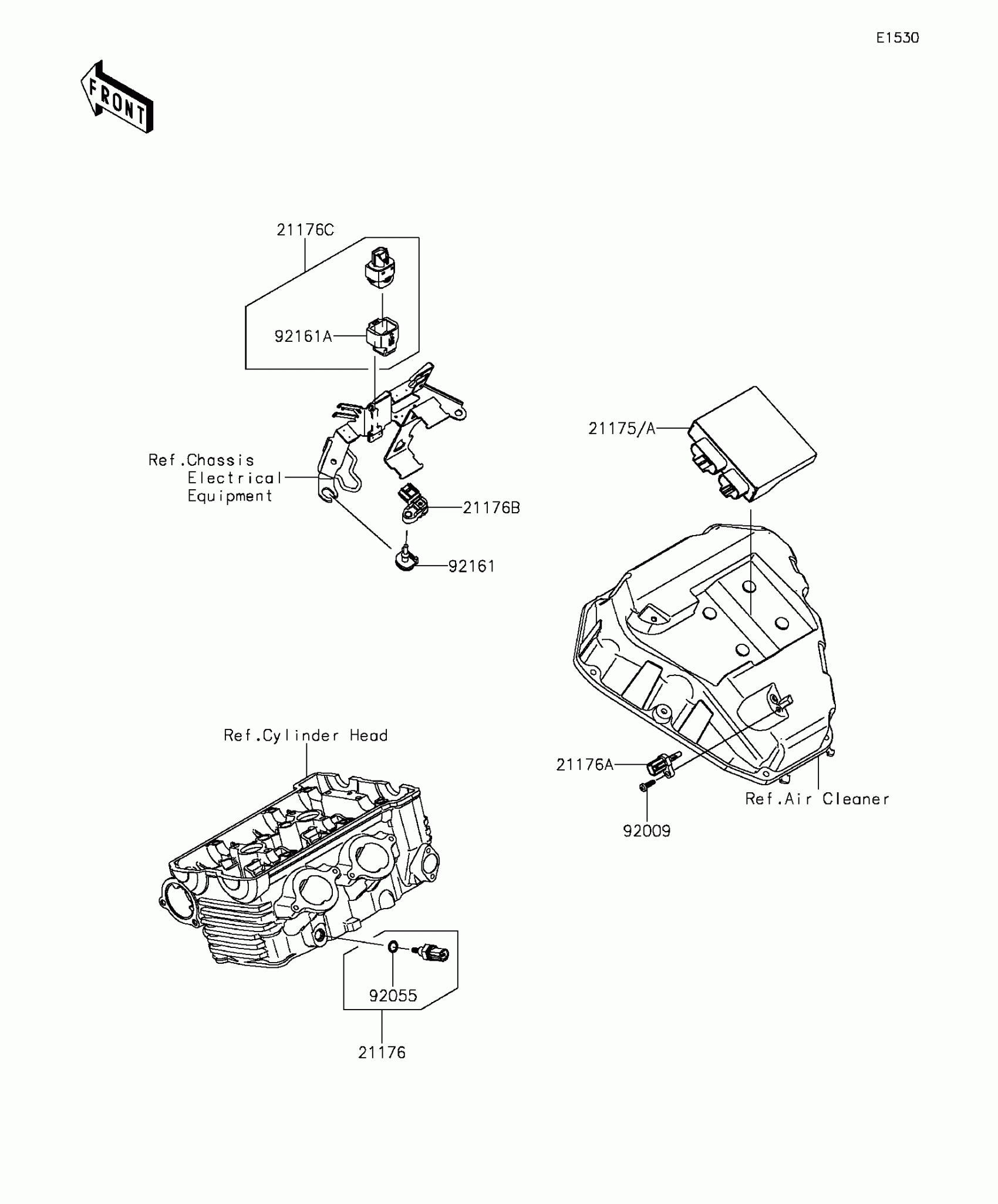

Kawasaki Ninja® 650 ABS Fuel Injection Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC

21175-0732

$883.21

21175A

CONTROL UNIT-ELECTRONIC

21175-0733

$883.21

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176B

SENSOR,PRESSURE

21176-0111

$226.99

21176C

SENSOR,VEHICLE-DOWN

21176-0704

$80.95

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92161

DAMPER

92161-0673

$4.85

92161A

DAMPER

92161-0951

$14.14
