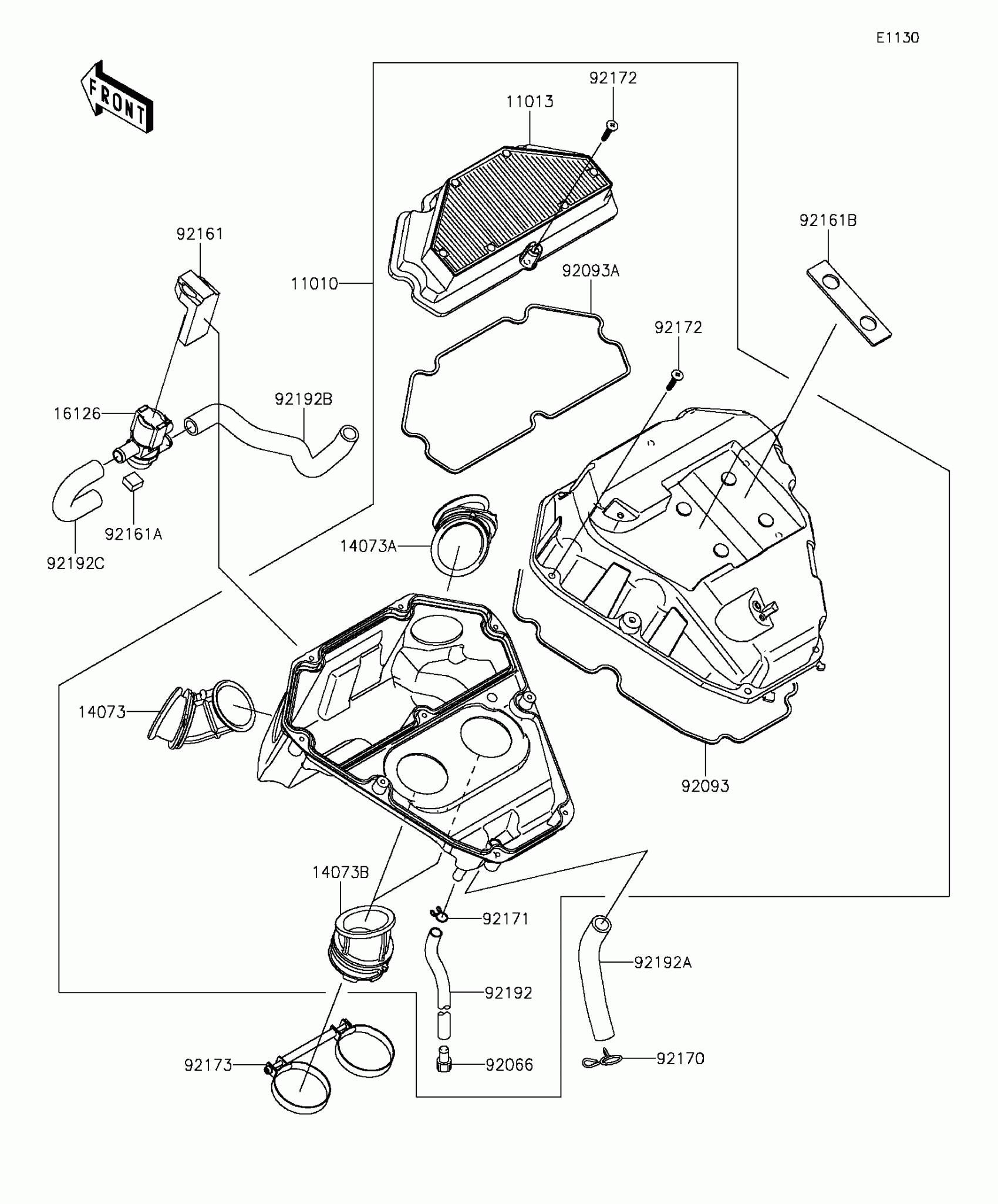

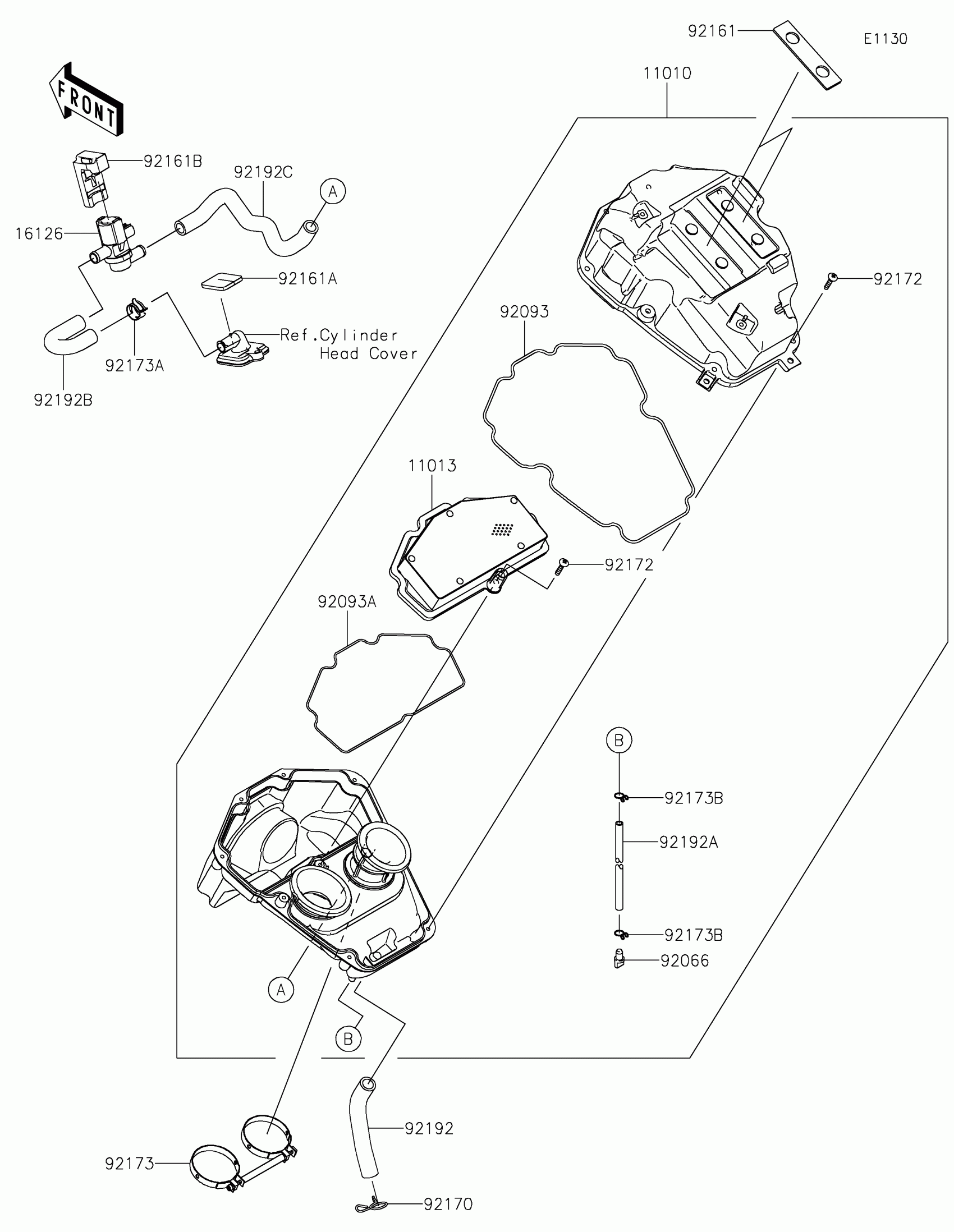

Kawasaki Ninja® 650 ABS Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0704

$391.12

11013

ELEMENT-AIR FILTER

11013-0713

$44.92

14073

DUCT,INTAKE,LH

14073-0705

$30.18

14073A

DUCT,INTAKE,RH

14073-0706

$26.18

14073B

DUCT

14073-0728

$30.18

16126

VALVE,AIR SWITING

16126-0019

$90.36

92066

PLUG,DRAIN,8.5X15

92066-0127

$8.19

92093

SEAL

92093-0566

$17.14

92093A

SEAL

92093-0567

$14.00

92161

DAMPER

92161-0309

$13.81

92161A

DAMPER

92161-1374

$1.10

92161B

DAMPER

92161-1428

$5.76

92170

CLAMP

92170-1017

$3.57

92171

CLAMP,DRAIN

92171-1584

$7.69

92172

SCREW,TAPPING,5X25

92172-0772

$1.66

92173

CLAMP

92173-0720

$19.25

92192

TUBE,8X12X245

92192-0709

$11.25

92192A

TUBE,BREATHER

92192-0958

$7.51

92192B

TUBE,A/C-ASV

92192-0959

$11.37

92192C

TUBE,ASV-HEAD

92192-0960

$7.51
