1987 Kawasaki Ninja® 600RX Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1987 Kawasaki Ninja® 600RX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

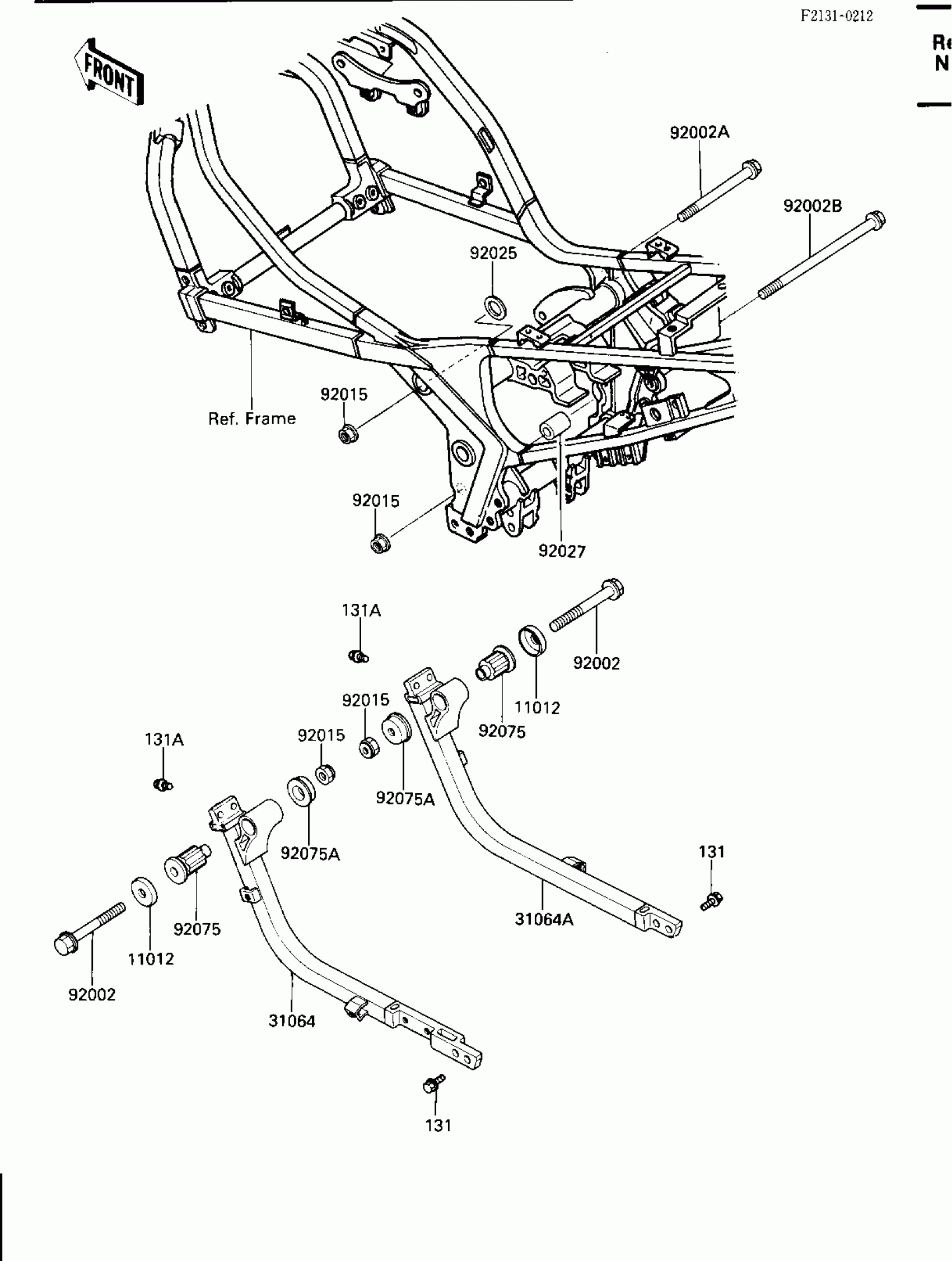

1987 Kawasaki Ninja® 600RX Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

31064

PIPE-COMP,SIDE FRAME,

31064-1078

1
Out of stock

31064A

PIPE-COMP,SIDE FRAME,

31064-1079

1
Out of stock

92002

BOLT,FLANGED,10X105

92002-1491

1
Out of stock

92002A

BOLT,FLANGED,10X138

92002-1492

1
Out of stock

92002B

BOLT,FLANGED,10X220

92002-1517

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92015A

NUT,10MM

92015-1429

1
Out of stock

92025

SHIM-ENG FIT FR,0.5MM

92025-053

—
Out of stock

92027

COLLAR,11X22X31.5

92027-1515

1
Out of stock

92075

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

131

BOLT-FLANGED,8X25

131G0825

1
Out of stock

131A

BOLT-FLANGED,8X30

131G0830

1
Out of stock
