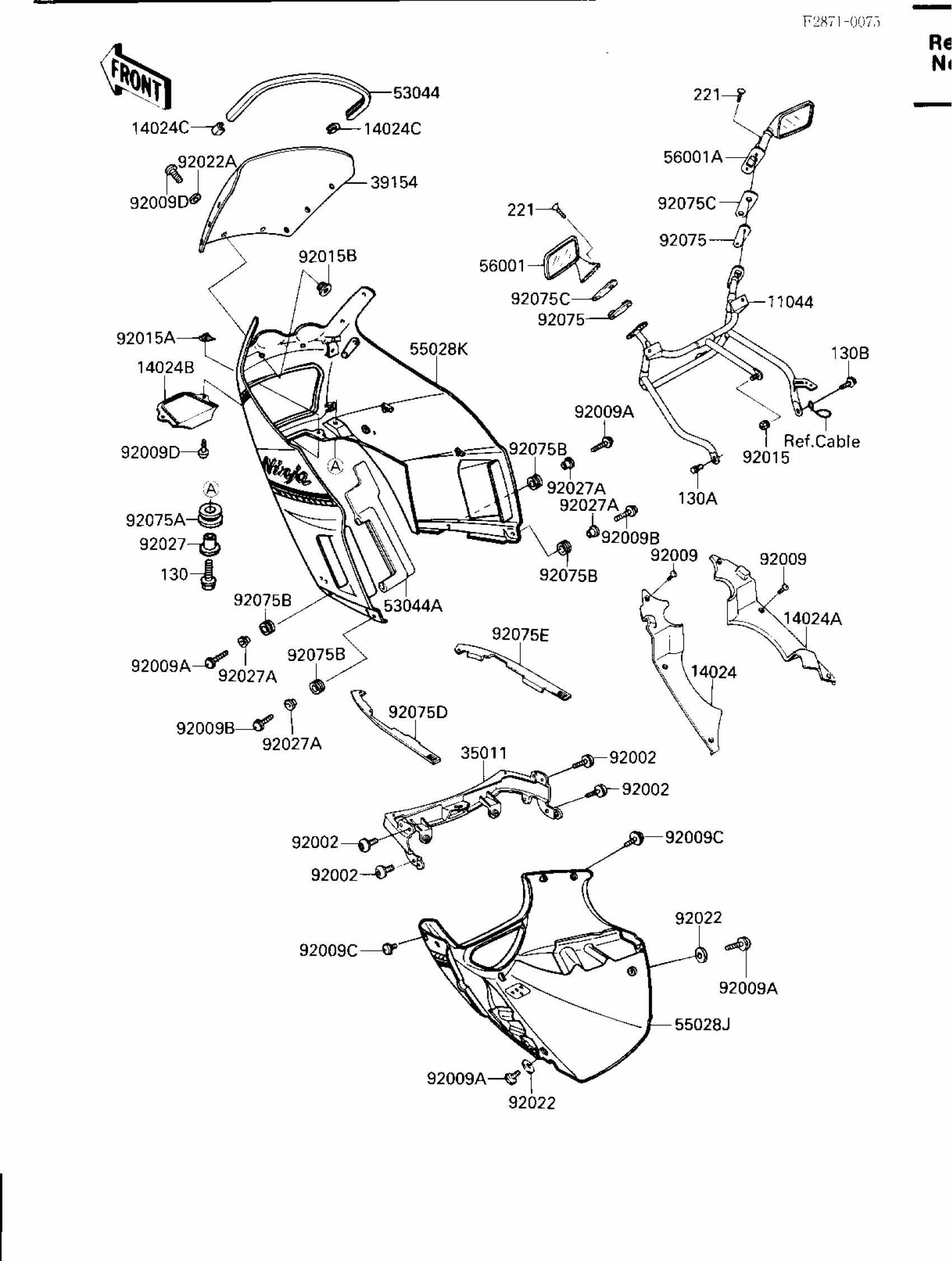

Kawasaki Ninja® 600RX FAIRING Diagram

#

Description
Price

11044

BRACKET,COWLING,UPP

11044-1076

Unavailable

14024

COVER,UPP,INNER,LH

14025-1726

Unavailable

14024A

COVER,UPP,INNER,RH

14025-1727

Unavailable

14024B

COVER,HEAD LAMP BULB,

14025-1735-T2

Unavailable

14024C

COVER,TRIM END

14025-1756

$5.80

35011

STAY,COWLING,LWR

35011-1246-CE

$264.78

39154

WINDSHIELD

39154-1105

Unavailable

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

53044A

TRIM

53044-1135

Unavailable

55028J

COWLING,LWR,EBONY/P.C

55028-5262-T4

$622.17

55028K

COWLING,UPP,EBONY/P.C

55028-5264-T4

$1,341.22

56001

MIRROR-ASSY,LH

56001-1250

Unavailable

56001A

MIRROR-ASSY,RH

56001-1251

Unavailable

92002

BOLT

92002-1588

$7.49

92009

SCREW,TAPPING,5X14

92009-1197

$3.04

92009A

SCREW,6X22,BLACK

92009-1251

$4.96

92009B

SCREW

92009-1664

$3.43

92009C

SCREW,6X14

92009-1288

$2.99

92009D

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,5MM

92015-1710

$4.67

92015B

NUT,5MM,COWLING

92015-1343

$3.52

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92027A

COLLAR,L=9.1,BLACK

92027-1935

$4.83

92075

DAMPER,MIRROR

92075-1492

$6.19

92075A

DAMPER

92160-1007

$4.18

92075B

DAMPER

92075-1634

$3.57

92075C

DAMPER,MIRROR

92075-1745

$7.95

92075D

DAMPER,COWLING,LH

92075-1777

$13.69

92075E

DAMPER,COWLING,RH

92075-1778

$15.05

130

BOLT-FLANGED,6X25

130J0625

Unavailable

130A

BOLT-FLANGED,8X16,BLACK

130C0816

Unavailable

130B

BOLT-FLANGED,8X20

130C0820

Unavailable

221

SCREW-CSK-CROSS

221C0630

Unavailable
