1987 Kawasaki Ninja® 600RX Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1987 Kawasaki Ninja® 600RX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

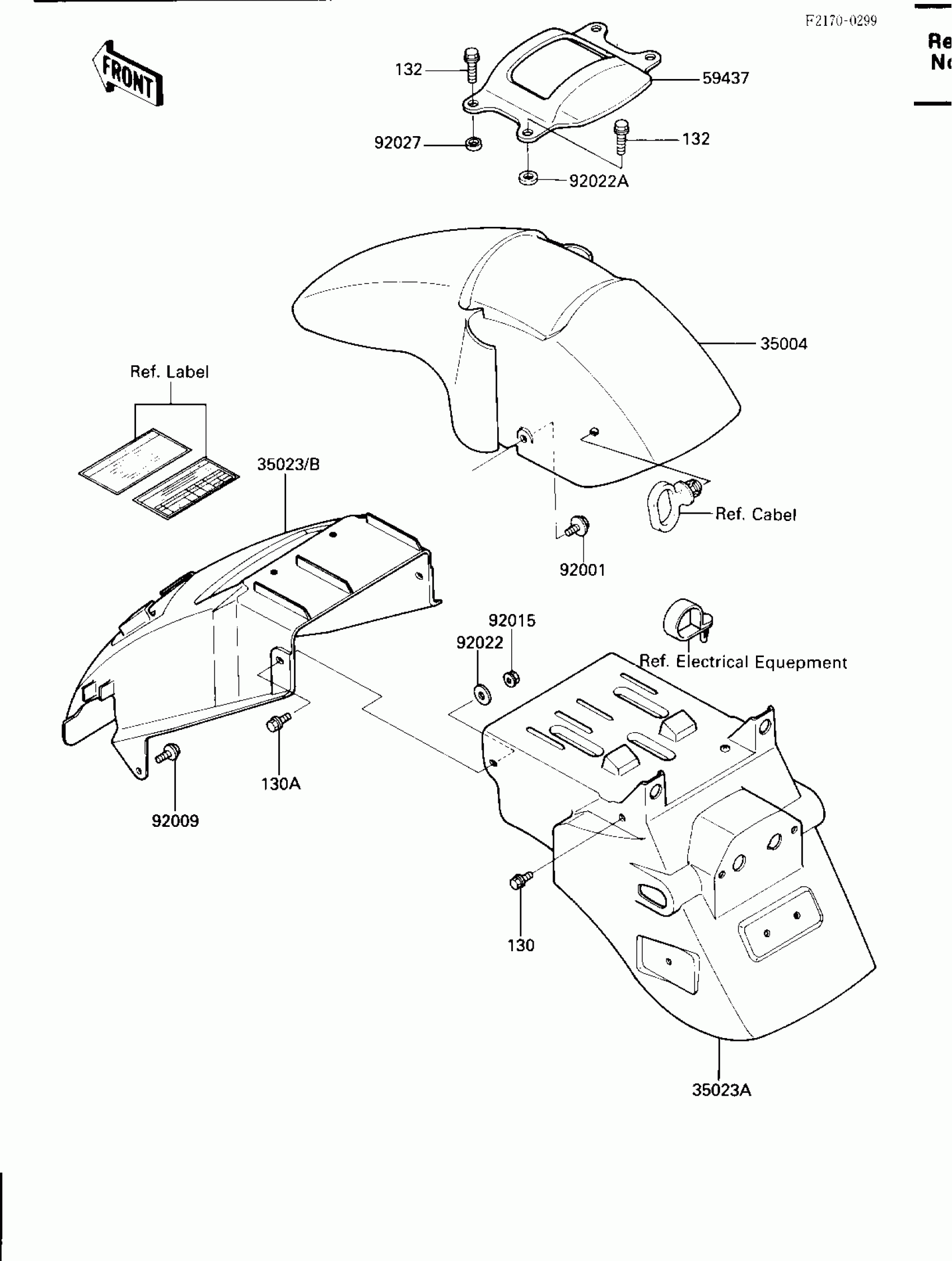

1987 Kawasaki Ninja® 600RX Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,P.C.GRAY

35004-1174-T2

1
Out of stock

35023

FENDER-REAR,FR

35023-1129

1
Out of stock

35023A

FENDER-REAR,RR,BLACK

35023-1130-6Z

1
Out of stock

35023B

FENDER-REAR,FR

35023-1136

1
Out of stock

59437

STABILIZER

59437-1053

1
Out of stock

92001

BOLT,W/SP,6X16

92001-1763

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92022A

WASHER,9X20X4.5

92022-1845

1
Out of stock

92027

COLLAR,9.5X12.7X4.5

92027-1879

1
Out of stock

130

BOLT-FLANGED

130D0616

1
Out of stock

130A

BOLT,FLANGED,6X35

130H0635

1
Out of stock

132

BOLT-FLANGED-SMALL,8X25

132G0825

1
Out of stock
