1989 Kawasaki Ninja® 600R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

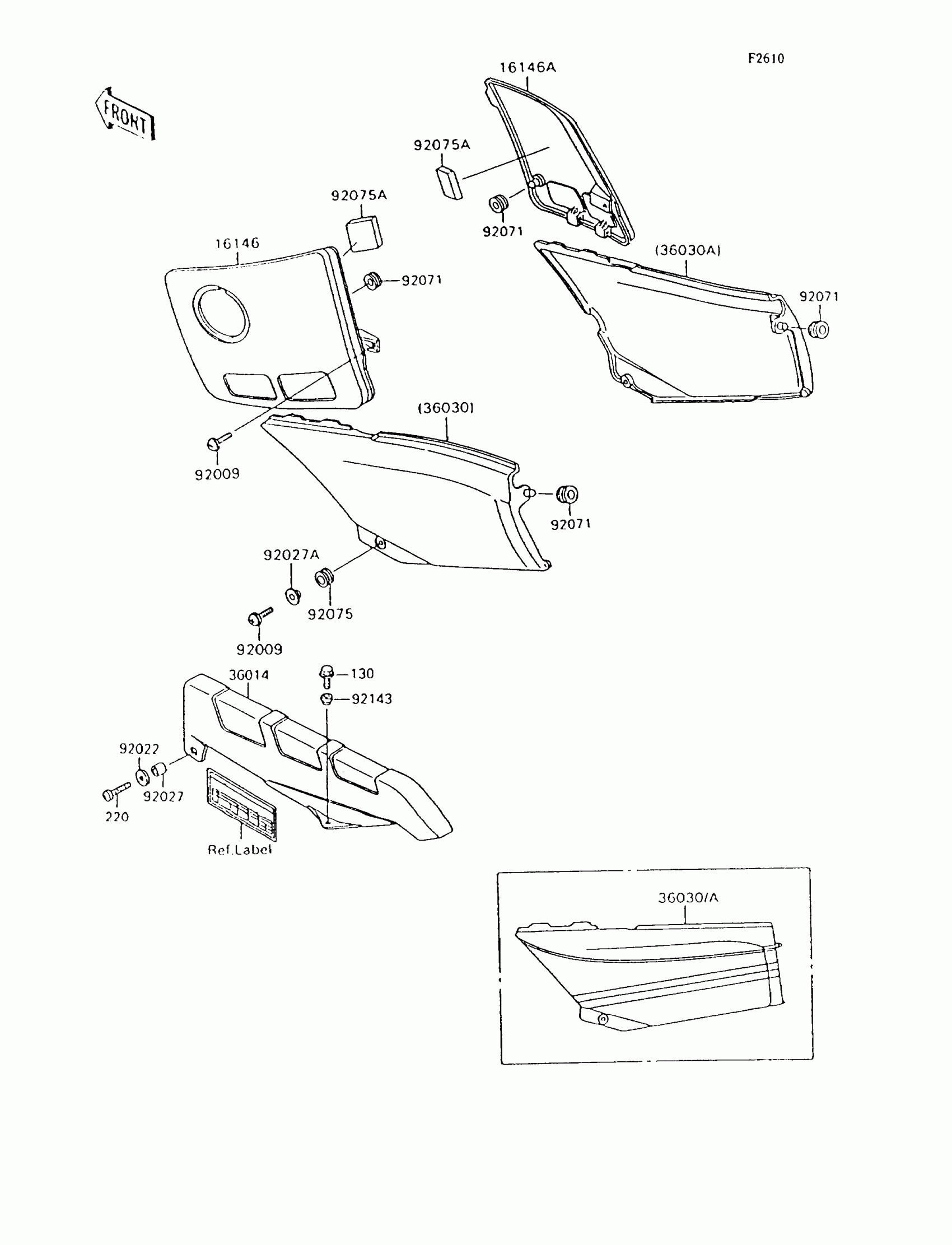

1989 Kawasaki Ninja® 600R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16146

COVER-ASSY,KNEEGRIP,LH,BLACK

16146-1079-MA

1
Out of stock

16146B

COVER-ASSY,KNEEGRIP,RH,BLACK

16146-1080-MA

1
Out of stock

36010J

COVER-SIDE,LH,WHITE/GRAY

36010-5105-DA

1
Out of stock

36010K

COVER-SIDE,LH,WHITE/GRAY

36010-5105-GJ

1
Out of stock

36010L

COVER-SIDE,RH,WHITE/GRAY

36010-5106-DA

1
Out of stock

36010M

COVER-SIDE,RH,WHITE/GRAY

36010-5106-GJ

1
Out of stock

36010N

COVER-SIDE,LH,EBONY/GRAY

36010-5107-T4

1
Out of stock

36010O

COVER-SIDE,RH,EBONY/GRAY

36010-5108-T4

1
Out of stock

36014

CASE-CHAIN

36014-1145

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92027

COLLAR

92027-169

1
Out of stock

92027A

COLLAR,L=9.1,BLACK

92027-1935

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92075C

DAMPER,50X50X10

92075-1979

1
Out of stock

92143

COLLAR,L=6.6

92143-1088

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

220

SCREW-PAN HEAD,6X30

220C0630

1
Out of stock
