1989 Kawasaki Ninja® 600R Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

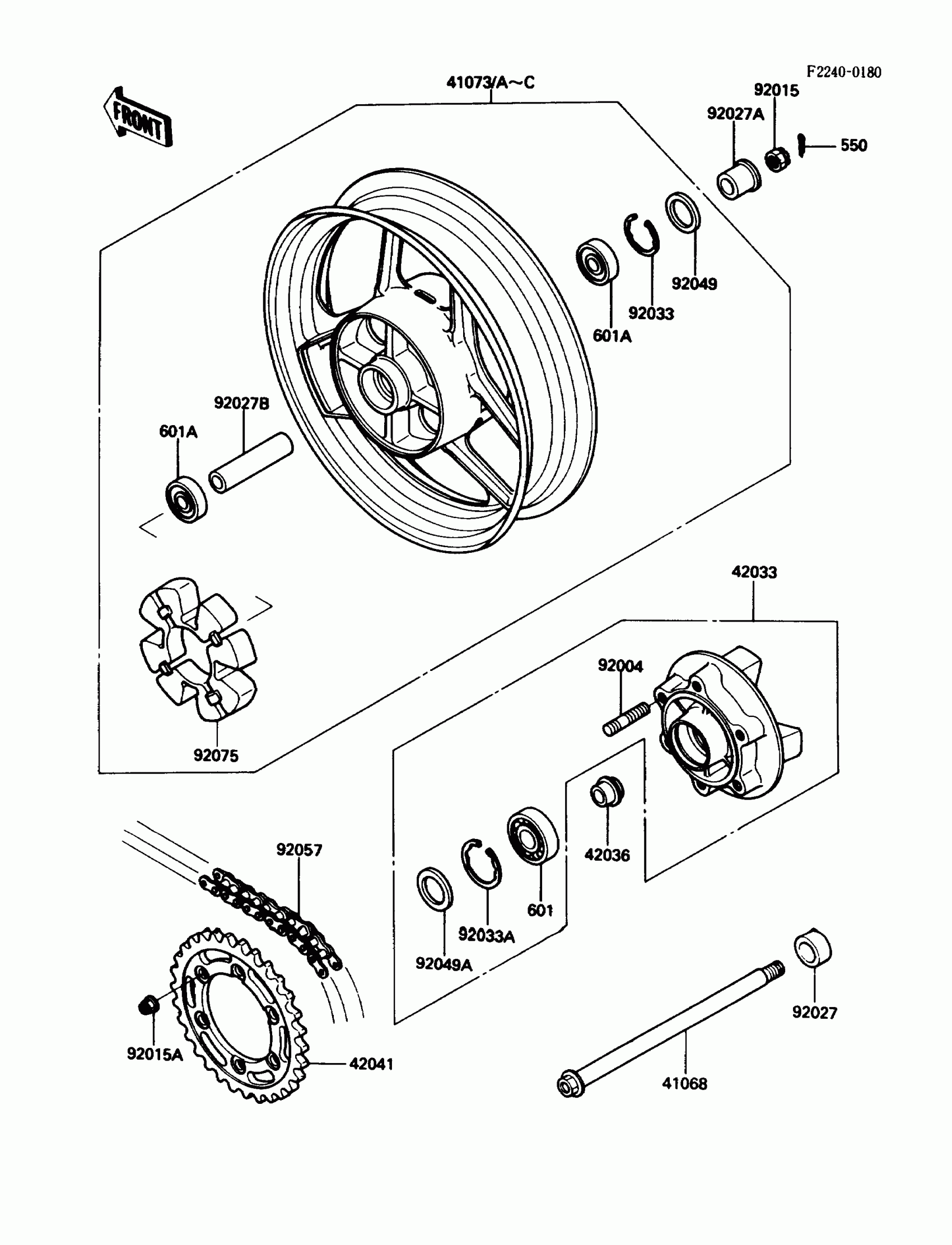

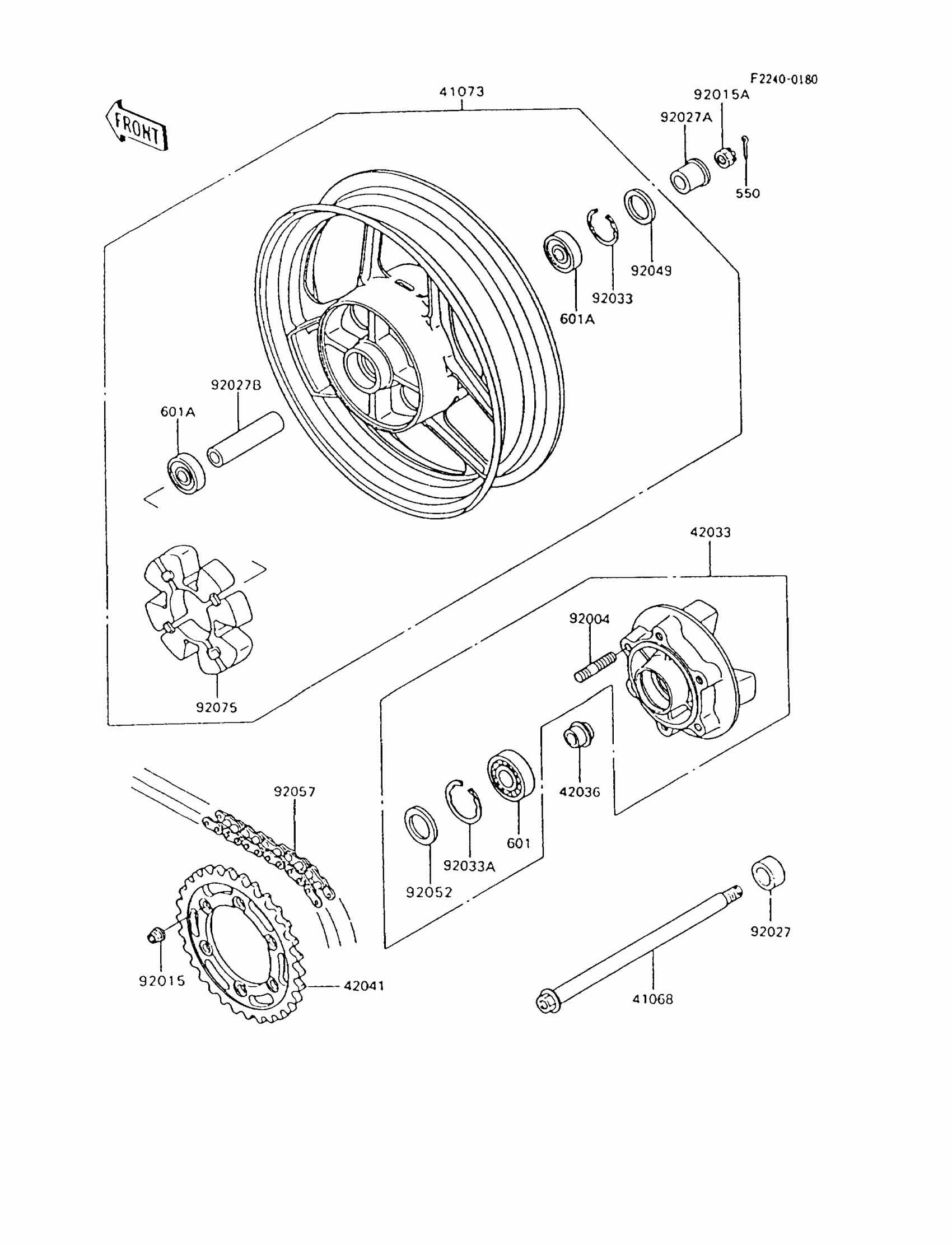

1989 Kawasaki Ninja® 600R Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1232

1
Out of stock

41073

WHEEL-ASSY,RR,F.RED

41073-1310-CW

1
Out of stock

41073A

WHEEL-ASSY,RR,WHITE NO.1

41073-1310-DC

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1114

1
Out of stock

42036

SLEEVE,RR HUB,L=26

42036-1149

1
Out of stock

42041

SPROCKET-HUB,39T

42041-1287

1
Out of stock

92004

STUD,10X24

92004-1146

1
Out of stock

92015

NUT,CASTLE,16MM

42045-014

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1502

1
Out of stock

92027

COLLAR,RR AXLE,L=20

92027-1874

1
Out of stock

92027A

COLLAR,RR AXLE,L=28

92027-1875

1
Out of stock

92027B

COLLAR,L=106

92027-1876

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK50MV-OX102L

92057-1232

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1687

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

1
Out of stock
