1989 Kawasaki Ninja® 600R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

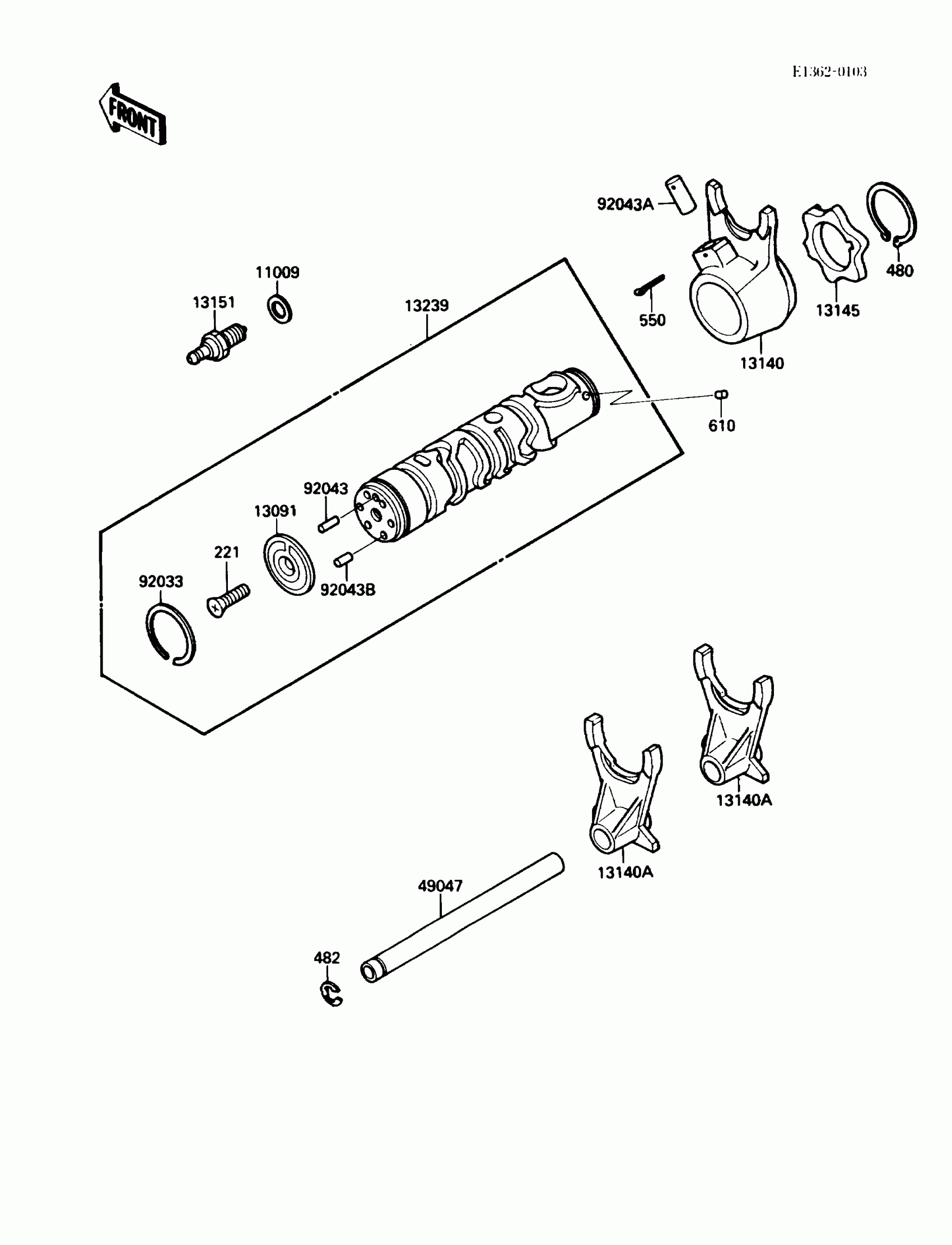

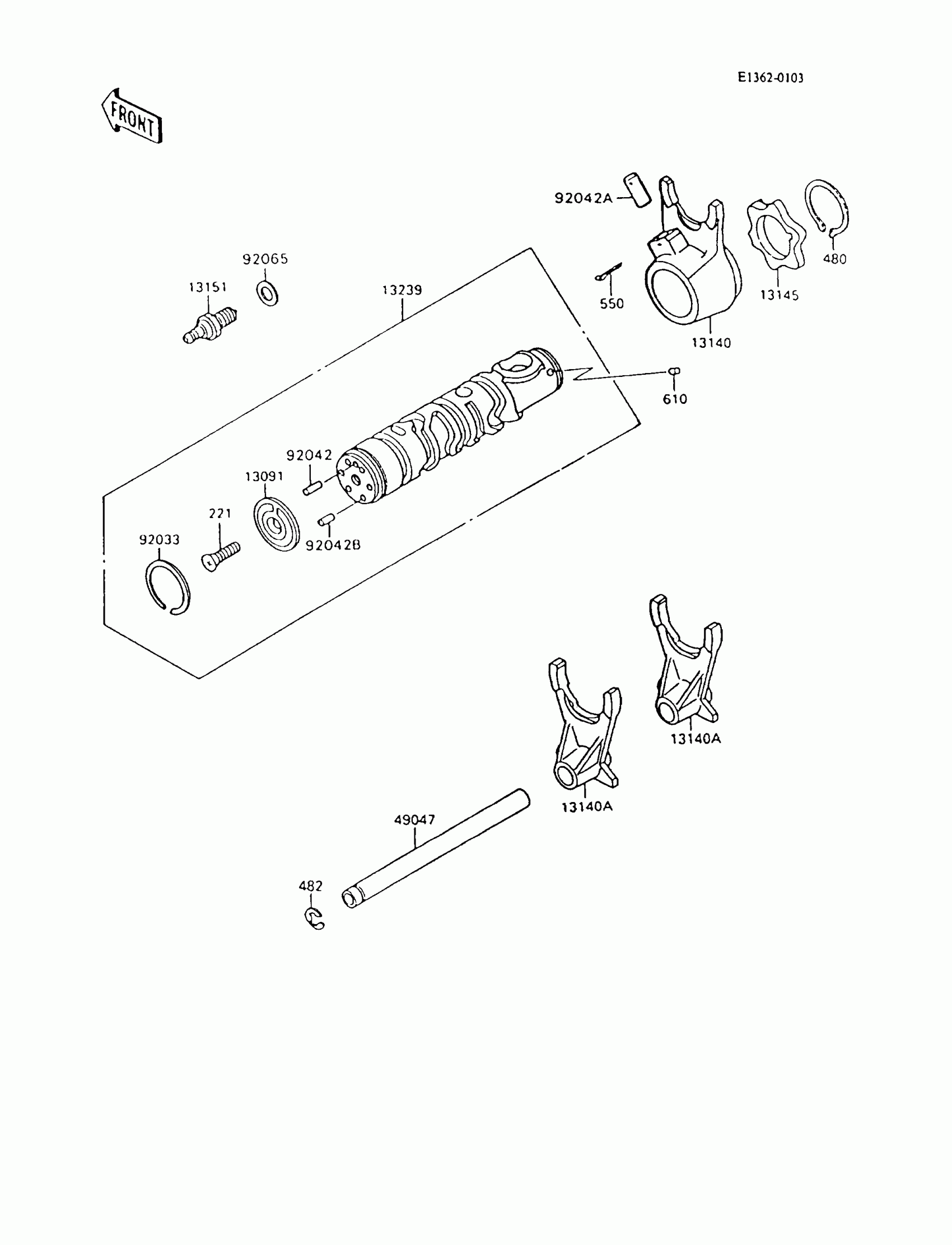

1989 Kawasaki Ninja® 600R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1
Out of stock

13091

HOLDER,CHANGE DRUM PIN

13091-1104

1
Out of stock

13140

FORK-SHIFT,DRIVE

13140-1016

1
Out of stock

13140A

FORK-SHIFT,OUTPUT

13140-1062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1119

1
Out of stock

49047

ROD-SHIFT

49047-1069

1
Out of stock

92033

RING-SNAP,37MM

92033-035

1
Out of stock

92043

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92043A

PIN,DOWEL,8X18

92042-021

1
Out of stock

92043B

PIN,DOWEL,4X13.8

92042-030

1
Out of stock

221

SCREW-CSK-CROS,6X20

221B0620

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

550

PIN-COTTER,3.0X20

550D3020

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
