1986 Kawasaki Ninja® 600 Rear Master Cylinder Diagram

← All diagrams

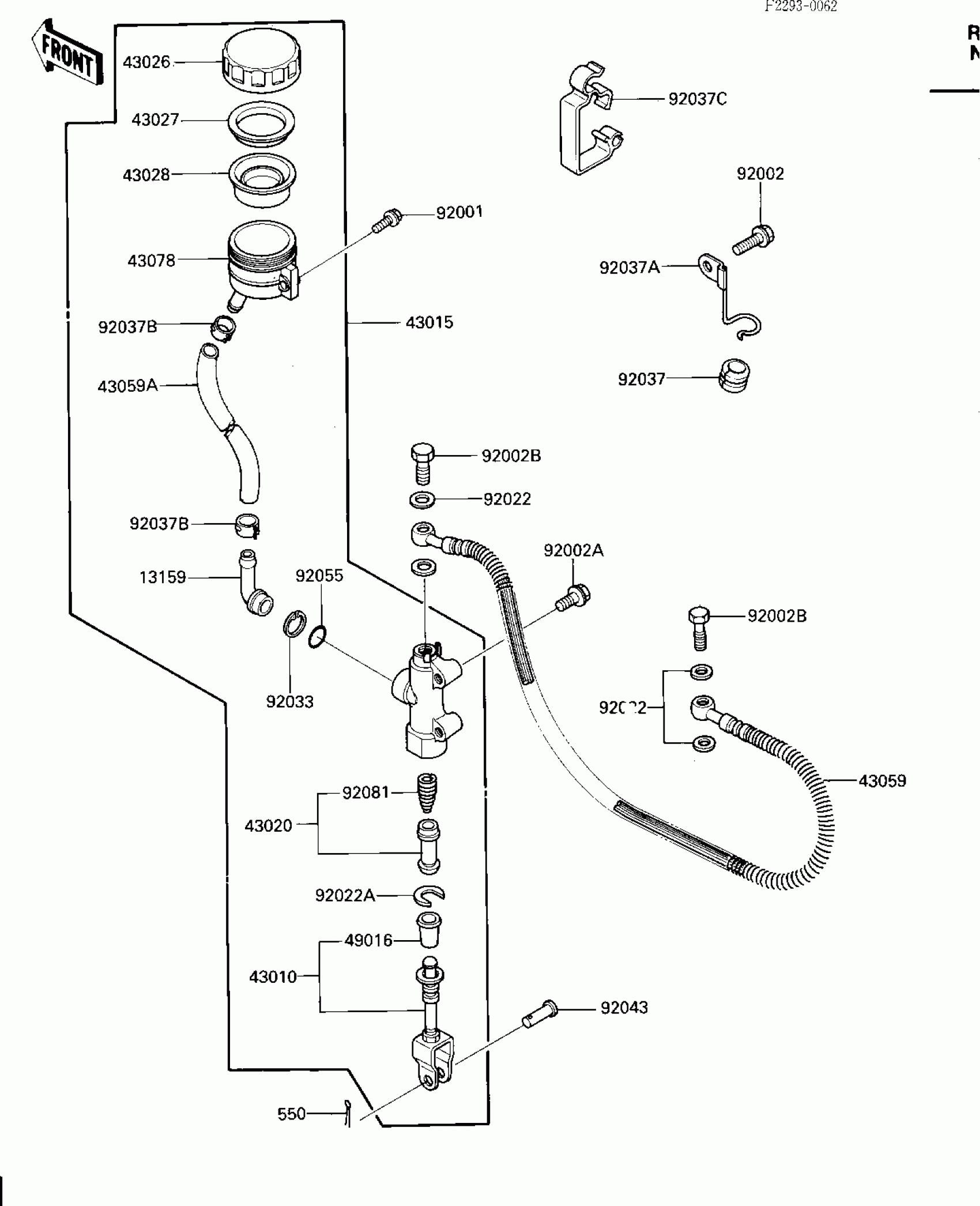

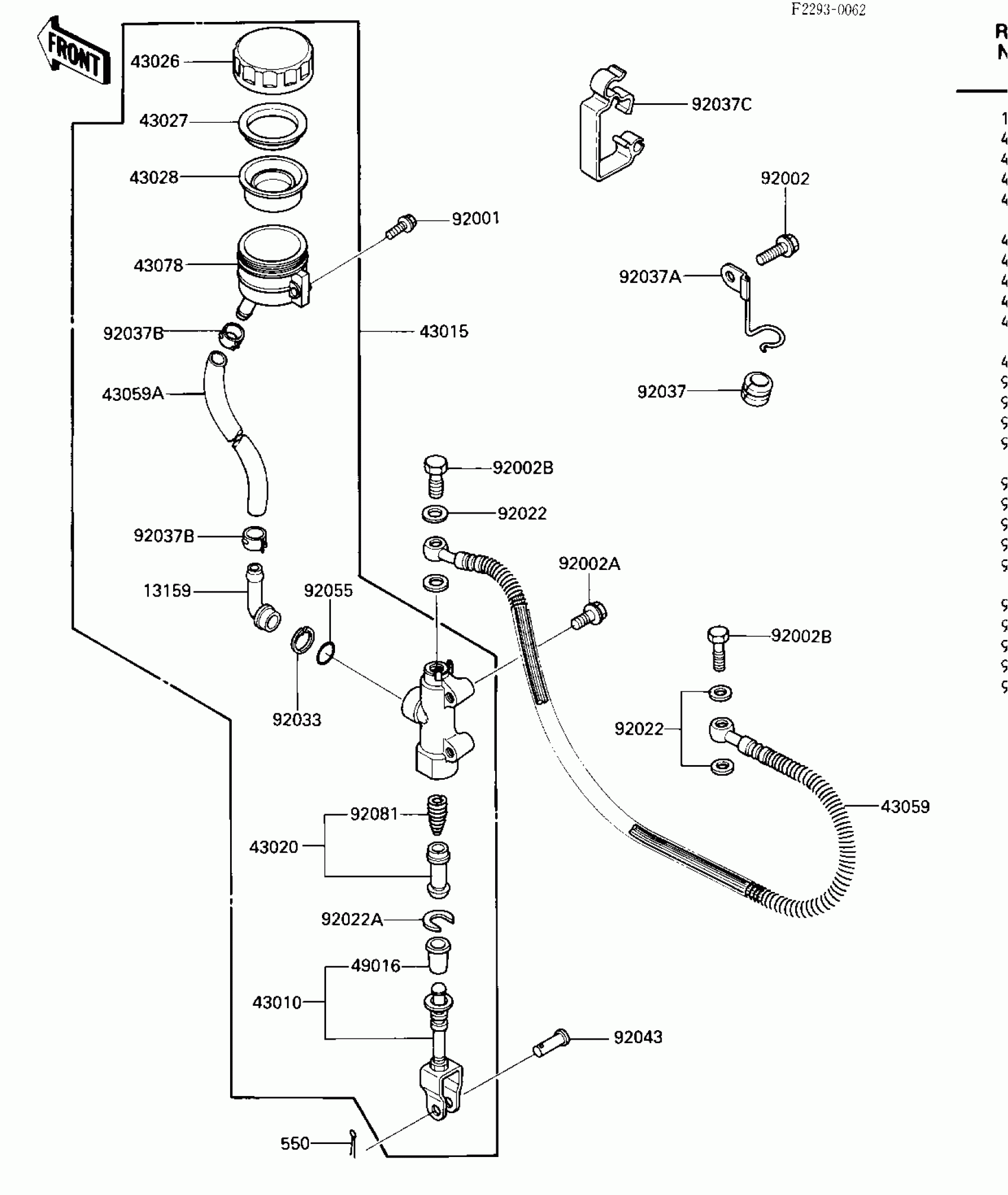

Find the part on the Rear Master Cylinder diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1054

1
Out of stock

43015

CYLINDER-ASSY-MASTER,

43015-1304

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-1054

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43059

HOSE-BRAKE,RR

43059-1618

1
Out of stock

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1313

1
Out of stock

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1103

1
Out of stock

92001

BOLT,W/P,6X16

92001-1860

1
Out of stock

92002

BOLT,FLANGED,10X10

92002-1311

1
Out of stock

92002A

BOLT,8X30

92002-1485

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1888

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

92037A

CLAMP

92037-1540

1
Out of stock

92037B

CLAMP,BRAKE HOSE

92037-1547

1
Out of stock

92037C

CLAMP,BRAKE HOSE

92037-1674

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
