1986 Kawasaki Ninja® 600 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

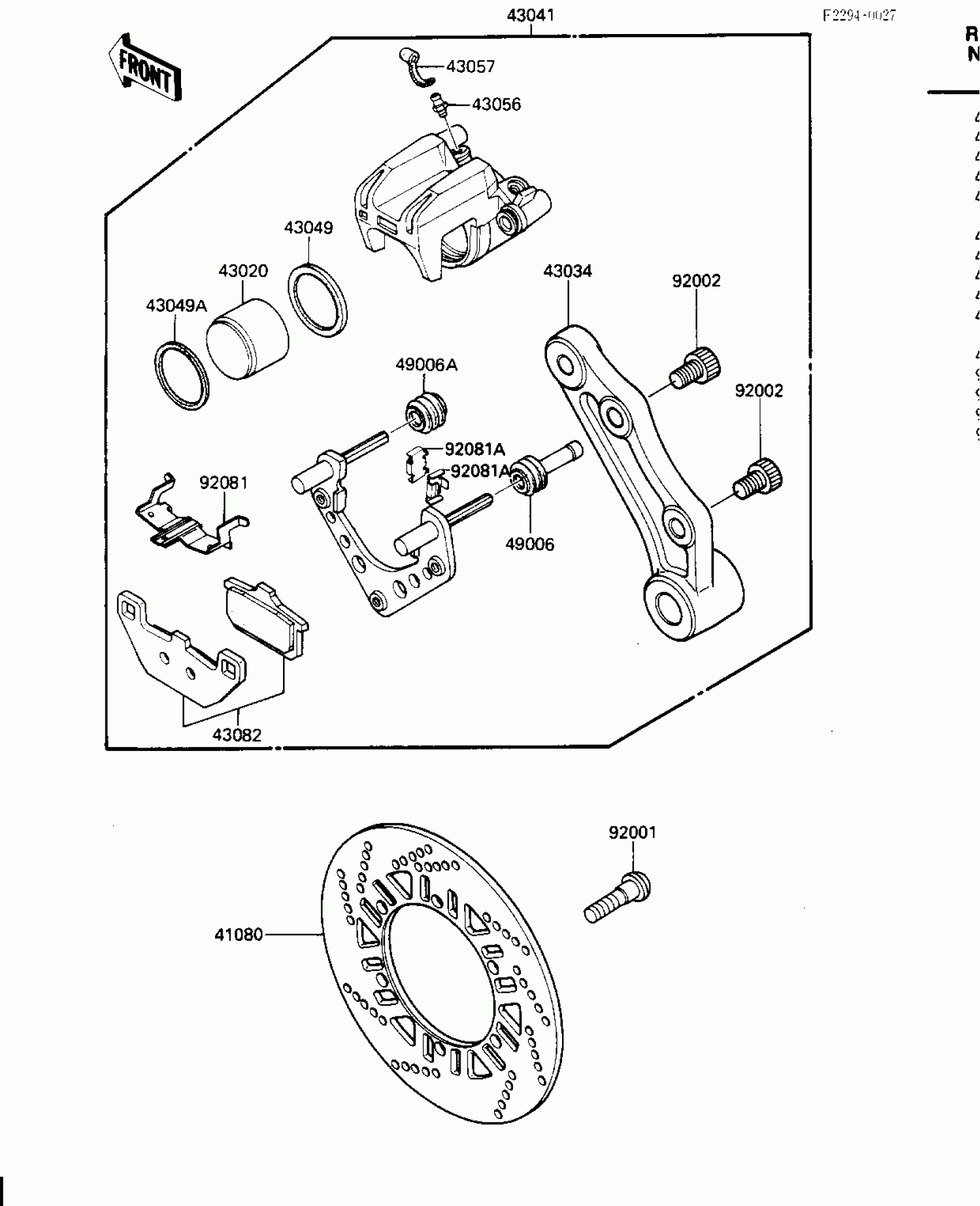

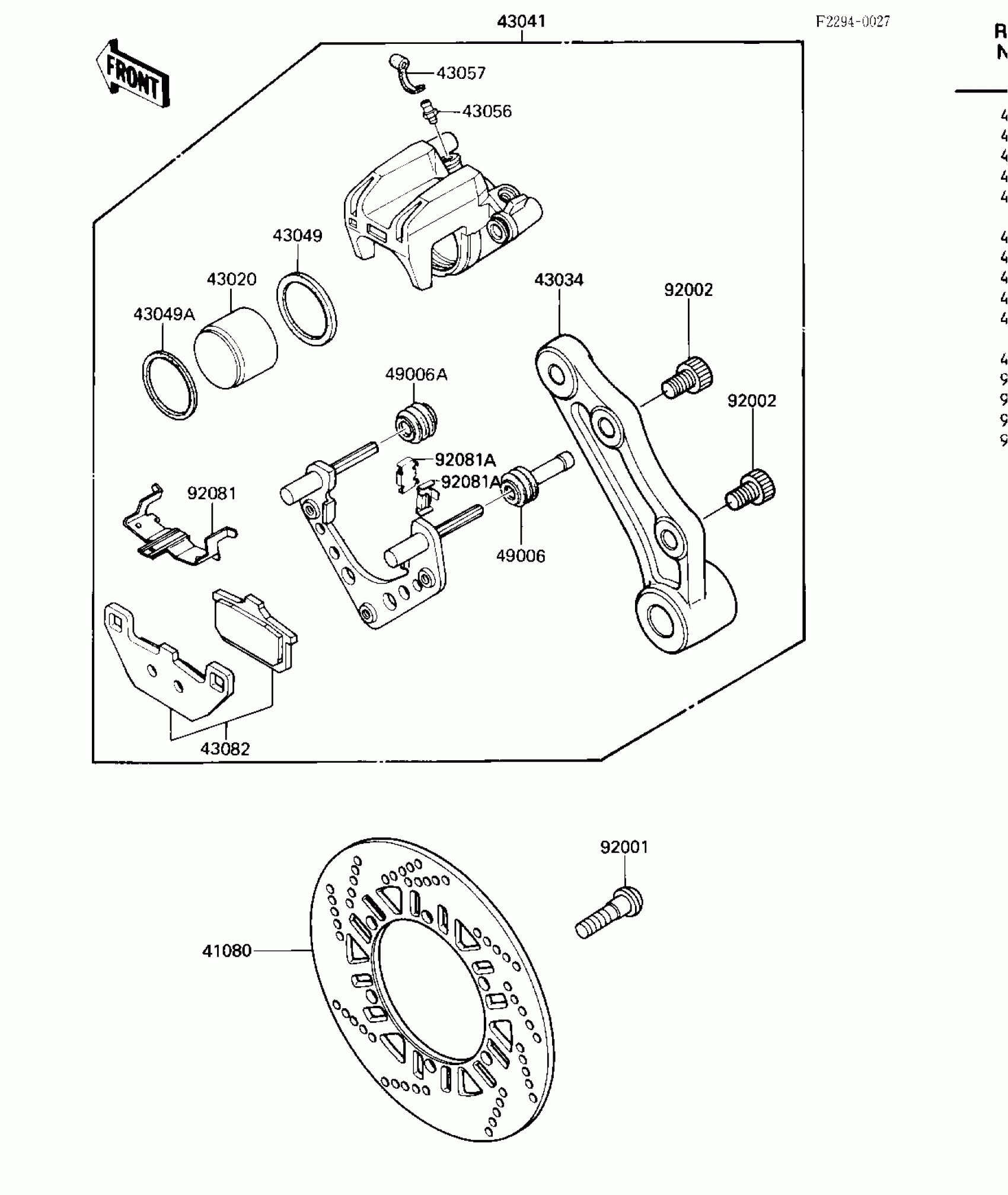

1986 Kawasaki Ninja® 600 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR

41080-1151

1

$461.91

In stock

43020

PISTON-COMP-BRAKE

43020-1066

1

$95.25

In stock

43034

1

$252.79

In stock

43041

CALIPER-ASSY,RR

43041-1196

1
Out of stock

43049

1

$11.01

In stock

43049A

PACKING,PISTON

43049-1028

1

$10.02

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1062

1

$62.35

In stock

49006

BOOT,CALIPER

49006-1094

1

$9.69

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92001

1

$3.72

In stock

92002

BOLT

92002-1524

1

$11.34

In stock

92081

SPRING,PAD

92081-1525

1

$15.31

In stock

92081A

SPRING,PAD STOPPER

92081-1661

1

$9.60

In stock
